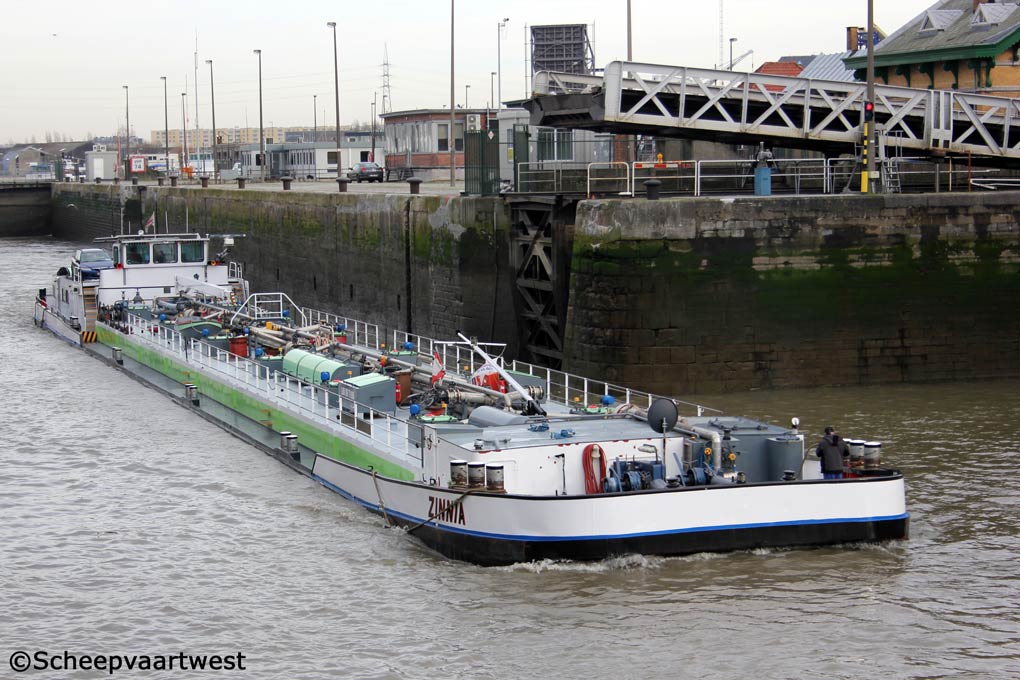

Zinnia 03
Antwerpen 18 January 2014

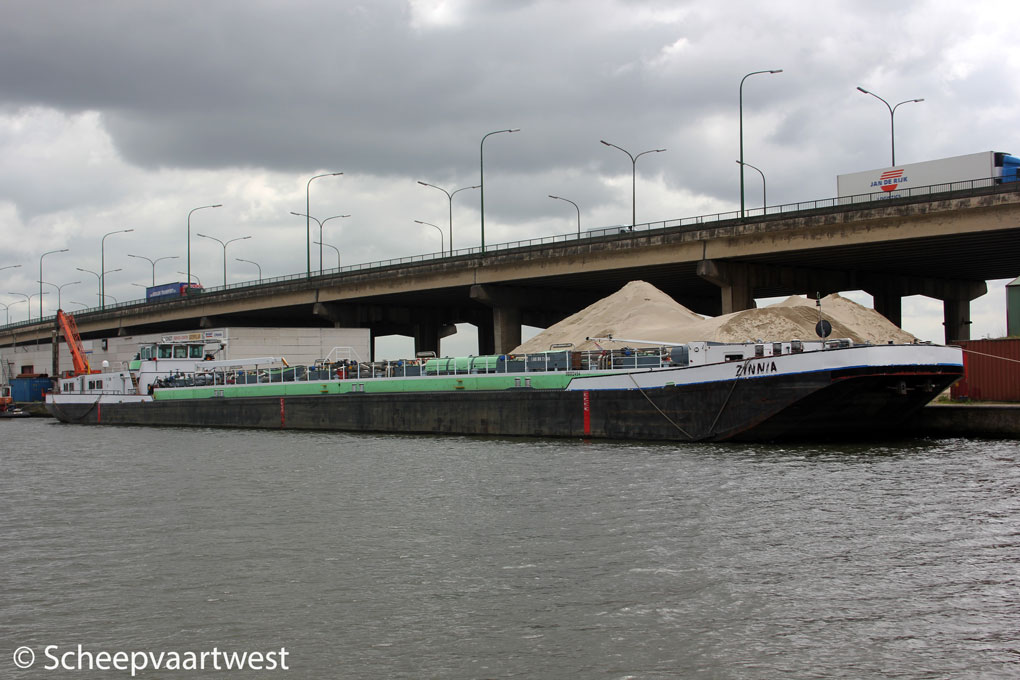

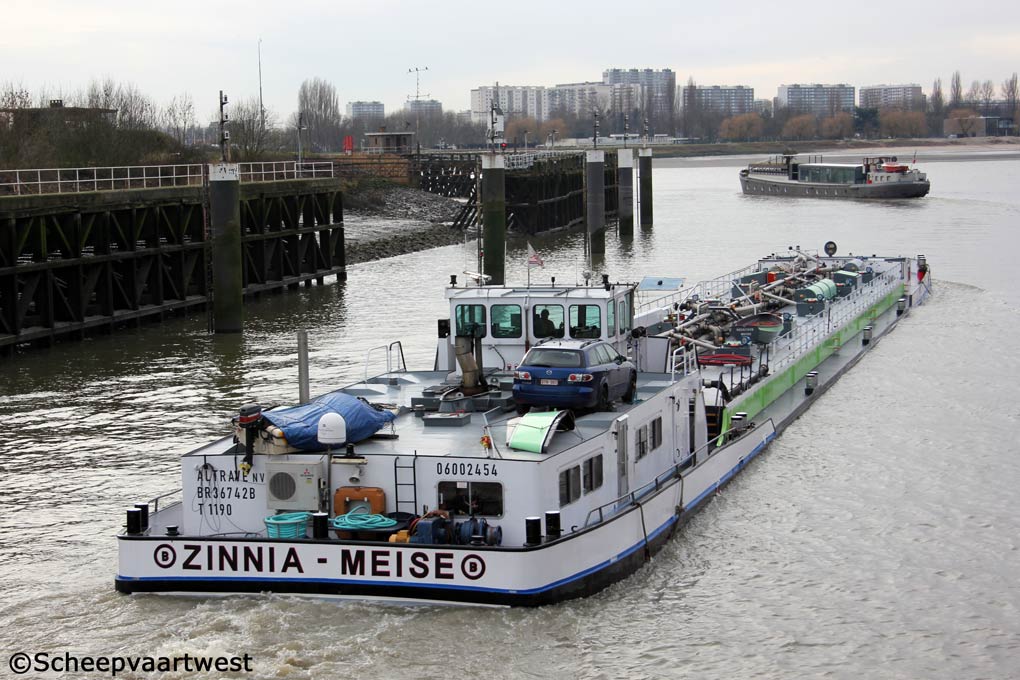

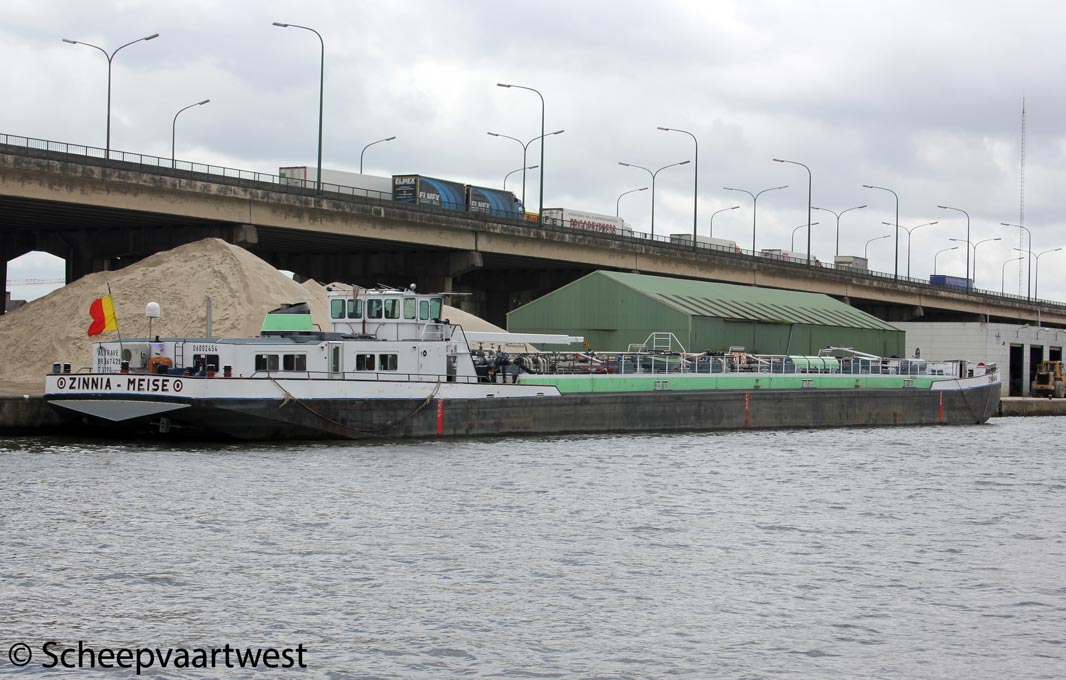

Zinnia 04   Zinnia 02   Zinnia 01
18/01/14   Merksem 22/05/13   22/05/13



Name

ZINNIA

Previous names

1973 - 1988 Dettmer Tank 42 - EU number: 4023960

Type

Inland tanker

ENI-number

06002454

Call sign

OT3338

Flag

Belgium

Port of registry

Meise

Tonnage

1.172,627 t

Length

79,97 m

Breadth

9,00 m

Draught

2,46 m

Depth

2,50 m moulded

Built

1973

11.1980 Ship lengthened

Keel laid

09.04.1973

Launch date

04.1973

Date of completion

08.1973

Builder

J.J. Sietas Schiffswerft
Hamburg
Federal Republic of Germany

Yard number

729

Hull material

Steel

Watertight bulkheads

12

Continuous decks

1

Main engine

1x MWM TD 484-6 U - 4 stroke 6 cylinder 320 x 480 mm diesel engine - 640 kW / 875 hp at 375 rpm

Year of manufacture: 1973

Manufacturer: Motoren-Werke Mannheim AG
Carl-Benz-Str. 5
68167 Mannheim
Federal Republic of Germany

Propellers

1x Solid propeller, aft

Boilers

1x Thermal oil heater, oil fired - 16,0 bar

Heating surface: 26,2 m²

Year of manufacture: 1992

Manufacturer: Wanson N.V.
Industrieweg 16
3190 Boortmeerbeek
Belgium

Electric installations

1x Plant 380/220 V - 32 kVA

1x Plant 380/220 V - 75 kVA

1x Plant 24 V - 5 kW

Shaft generator

1x 5 kW

Generators

1x Main generator 75 kVA

1x Main generator 32 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 212 kW, forward

Number of cargo tanks

12

Liquid cargo

1.541 m³

Fuel capacity

20,0 m³

Owner

Altrave NV
Boondreef 16
1861 Meise
Belgium

Previous names & owners

1973 - 1988 Dettmer Tank 42 - B. Dettmer & Co, Bremen - Germany

Last update

28 June 2013
