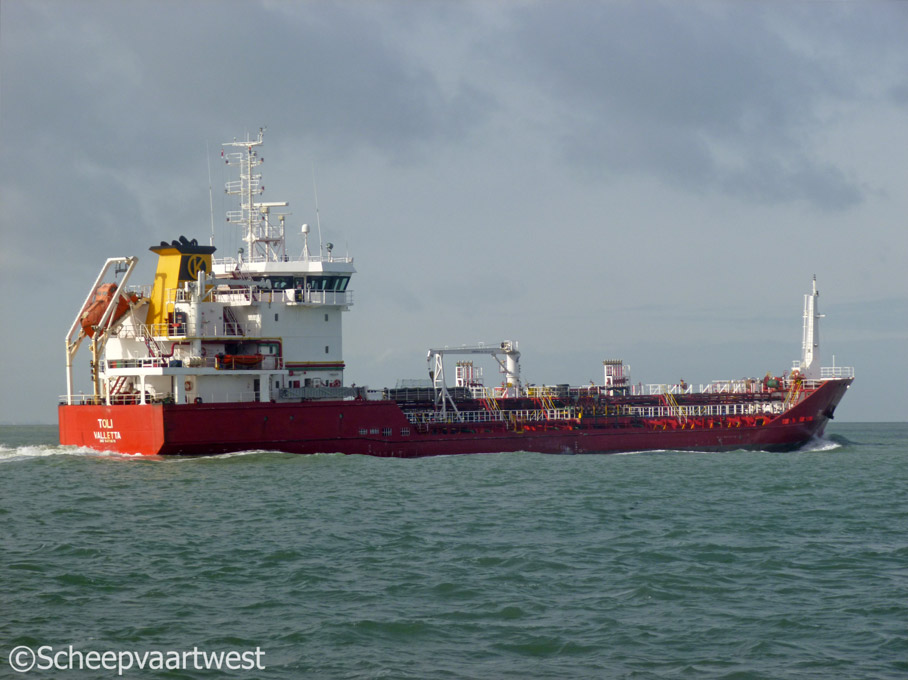

Toli 01
Westerschelde 02 October 2012

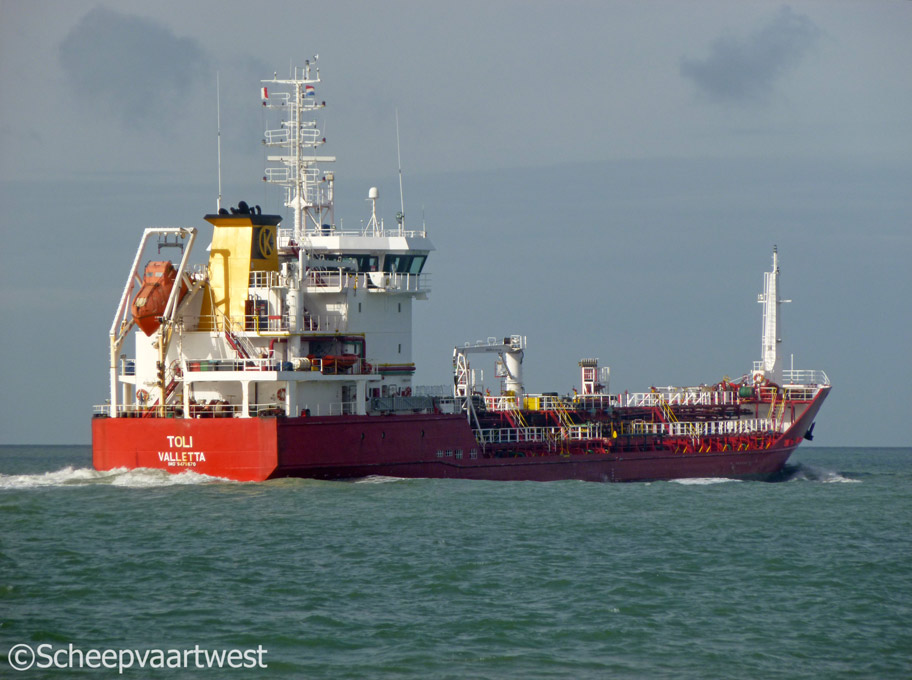

Toli 03
02/10/12



Name

TOLI

Type

Oil tanker / Chemical tanker

IMO-number

9479670

Call sign

9HA2299

Flag

Malta

Port of registry

Valletta

GT

2.637 t

DWT

Summer: 3.442,15 t

Winter: 3.313 t

NT

1.129 t

Length

92,86 m overall

86,71 m between perpendiculars

Breadth

14,10 m

Draught

Summer: 5,68 m

Freeboard

1.511 mm

Depth

7,90 m

Speed

13,5 knots

Built

2009

Launch date

01.03.2009

Date of completion

13.04.2009

Builder

Desan Deniz Insaat San. A.S.
Istanbul
Turkey

Yard number

21

Hull material

Steel

Hull type

Double hull

Main engine

1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.980 kW / 2.690 hp at 750 rpm

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Boilers

2x CHO 35,00 m² - 10,0 bar
1x CHR 39,00 m² - 10,0 bar

Generators

3x Diesel generatorsets each 525 kVA - 420 kW - 611 hp

Total cargo capacity

4.062 m³

Segregation

11

Cargo pumps

11x Framo deepwell

Loading rate

600 m³/h

Heating capacity

80°C

Manifolds

Manifold to main deck: 1.944 mm

Manifold to stern: 50,43 m

Manifold to bow: 42,43 m

Manifold to rail: 3,15 m

Tank capacities

Fuel oil: 179 m³

Diesel oil: 28 m³

Water ballast: 1.432 m³

Lifting equipment

1x Deck crane - SWL 3,0 t

Manager

Cherning Shipping

Operator

K Tankercilik VE Gemi Isletmeciligi A.S.

Owner

K Tankering & Shipmanagement
Istanbul
Turkey

Registered owner

Toli Maritime Ltd.
