Till Deymann 01
Antwerpen 06 April 2012

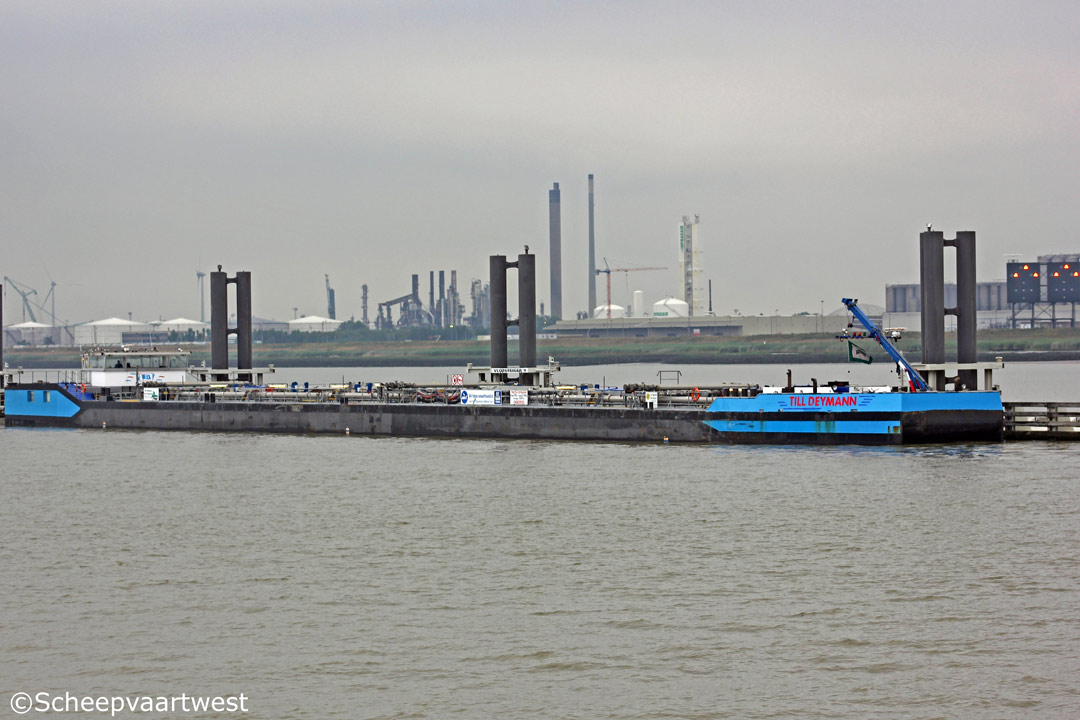

Till Deymann 02
Lillo, Belgium 19/07/15


Name

TILL DEYMANN

Type

Inland tanker

ENI-number

04805920

Call sign

DA7641

Flag

Germany

Port of registry

Haren-Ems

Tonnage

3.347,438 t

Length

109,96 m registered

Breadth

11,54 m registered

Draught

3,75 m

Air draft

5,80 m

Depth

5,30 m moulded

Built

2007

Keel laid

22.12.2005

Launch date

14.05.2007

Date of completion

01.06.2007

Builder

Kötter Werft GmbH
Industriestr. 2
49733 Haren/Ems
Federal Republic of Germany

Yard number

FC 004

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

11

Continuous decks

1

Main engine

4x Volvo Penta D12D E MH - 4 stroke 6 cylinder 131 x 150 mm diesel engines - each 331 kW total 1.324 kW at 1.800 rpm

Year of manufacture: 2008

Manufacturer: AB Volvo Penta
Gropegaardsgatan 5
41715 Göteborg
Sweden

Propeller

Powered by four rudder propellers, two in front and two in the stern

2x Propellers type Rudder propeller - front at 592 rpm

2x Propellers type Rudder propeller - aft at 592 rpm

Electric installations

2x Plant 400 V each 107 kVA

1x Plant 400 V - 250 kVA

1x Plant 24 V - 200 Ah

Generators

1x Generator 250 kVA

2x Main diesel generatorsets each 107 kVA

Number of cargo tanks

9

Cargo capacity 98%

3.472 m³

Cargo pumps

9x Deepwell each 100 m³/h

Manager

Reederei Deymann Management GmbH & Co. KG
Papenwiese 5
49733 Haren
Federal Republic of Germany

Registered owner

Reederei Deymann GmbH & Co. KG TMS "TILL DEYMANN"
Papenwiese 5
49733 Haren/Ems
Federal Republic of Germany
