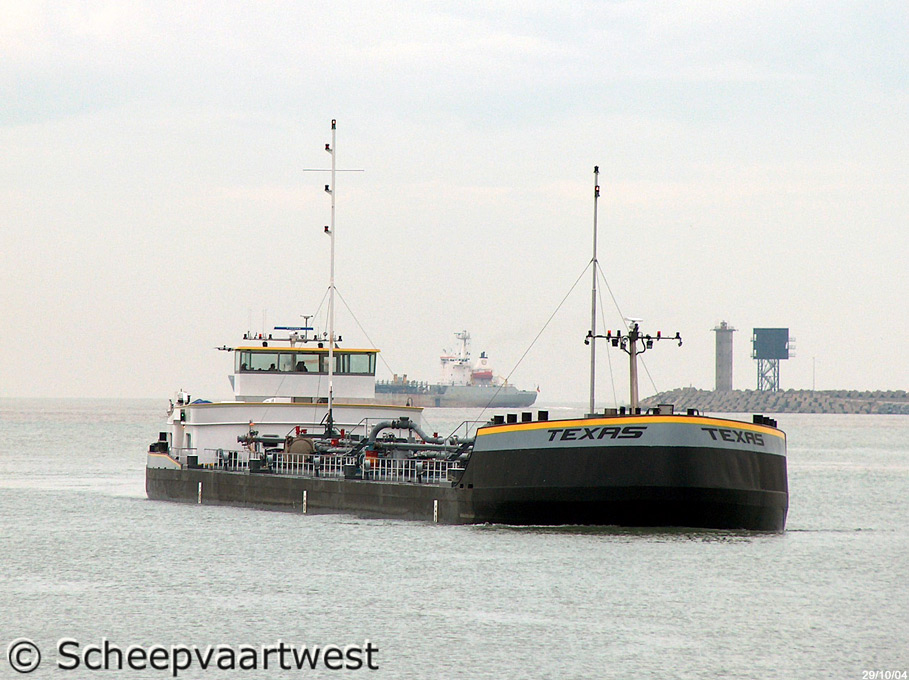

| Zeebrugge 29 October 2004 |
 |
 |
 |
 |
 |
 |
|||||

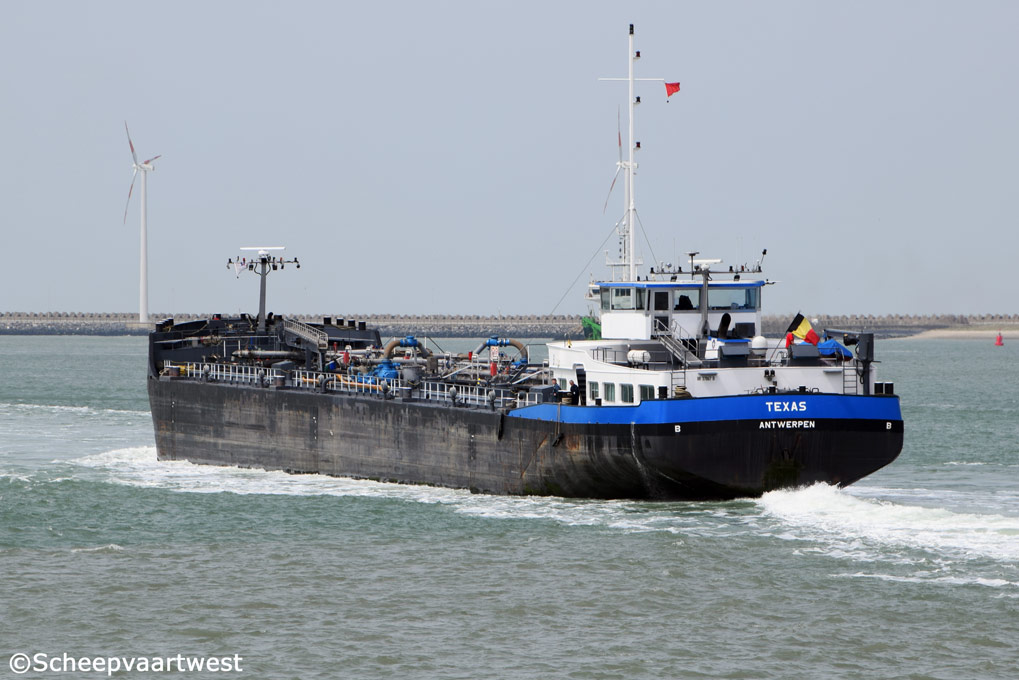

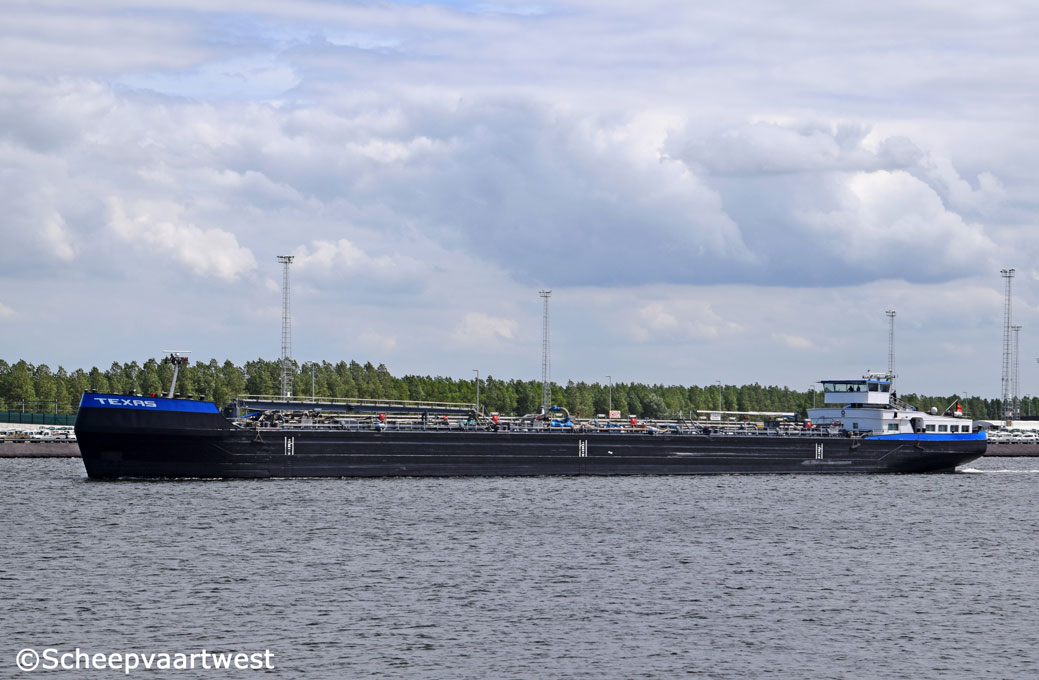

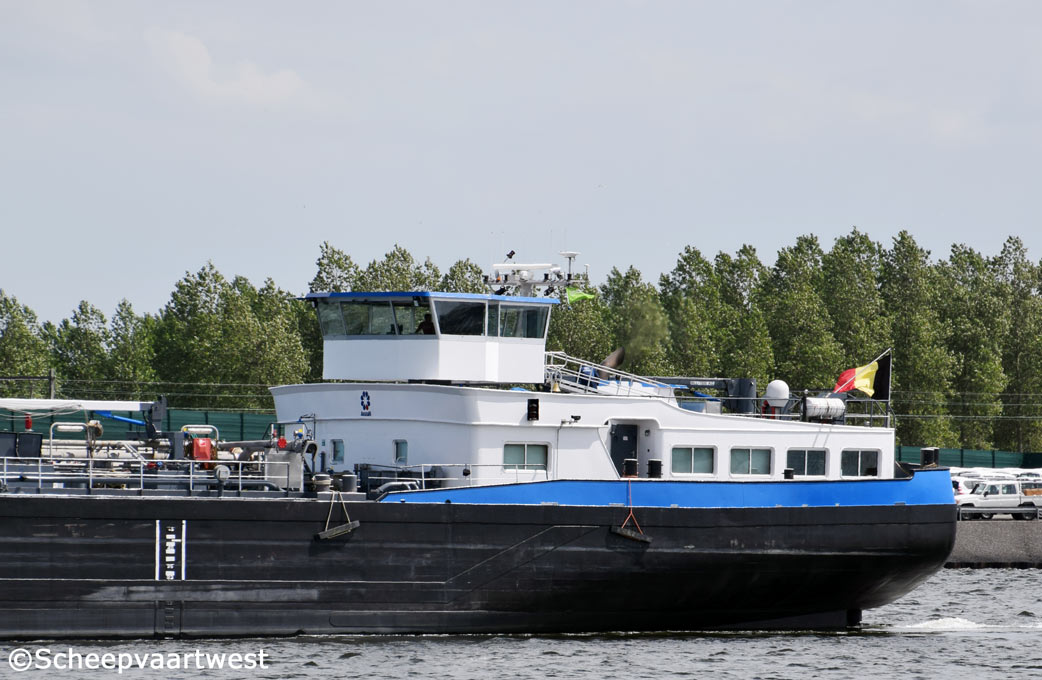

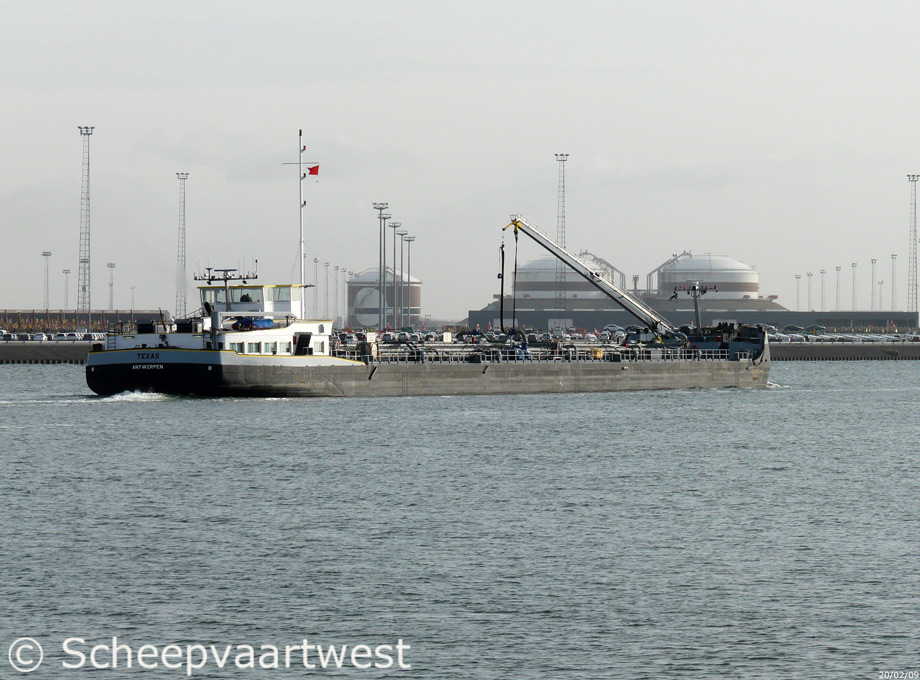

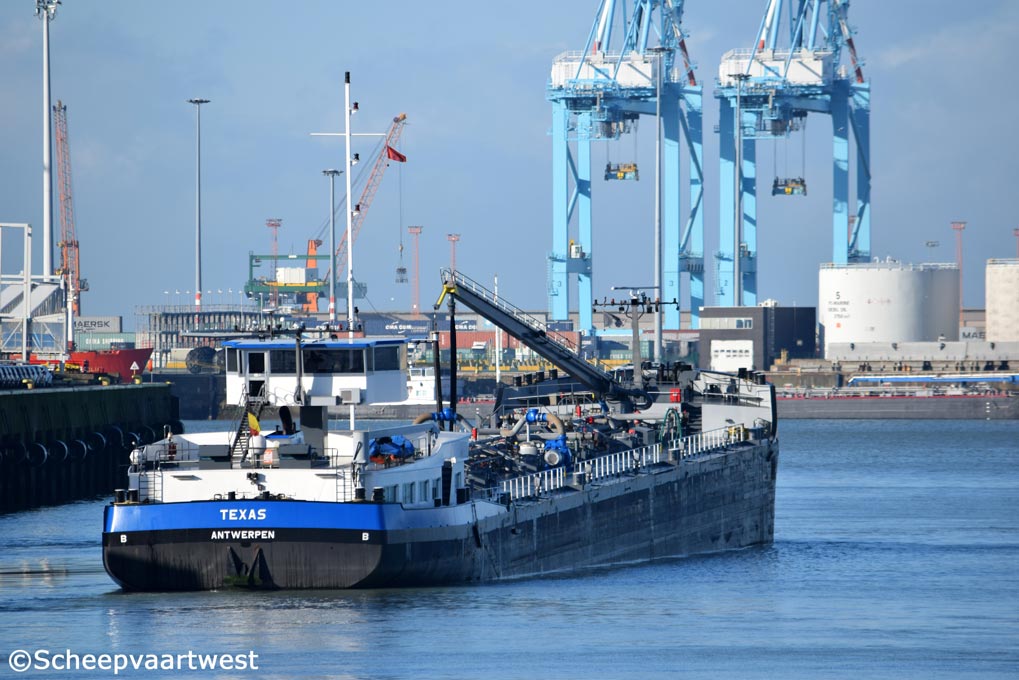

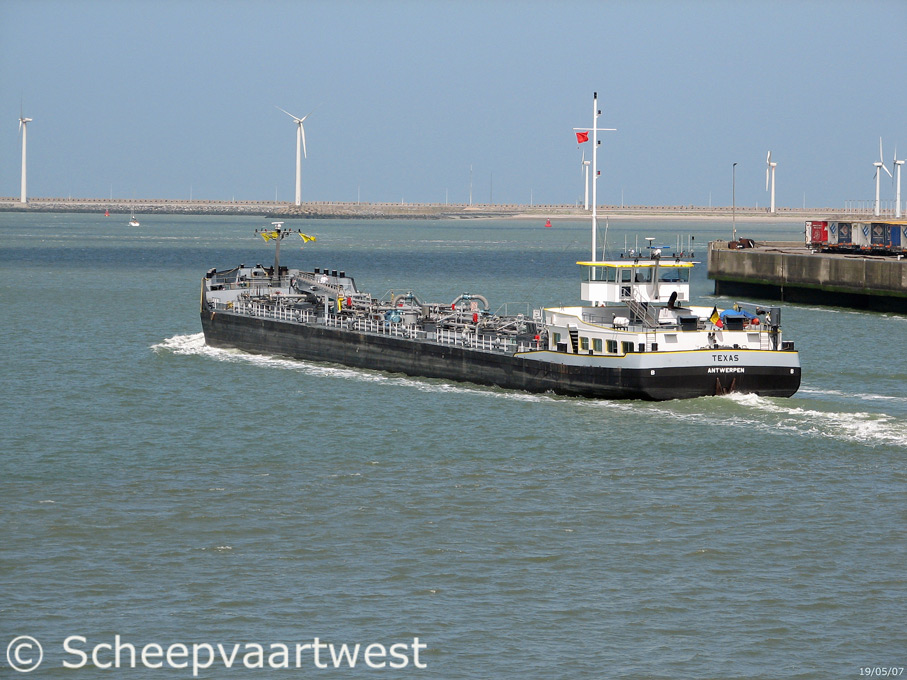

| Zeebrugge 19/05/07 | Zeebrugge 20/02/09 | Zeebrugge 22/07/15 | Zeebrugge 10/01/14 | Zeebrugge 22/05/15 | Zeebrugge 22/07/15 | |||||
 |
 |
|||||||||

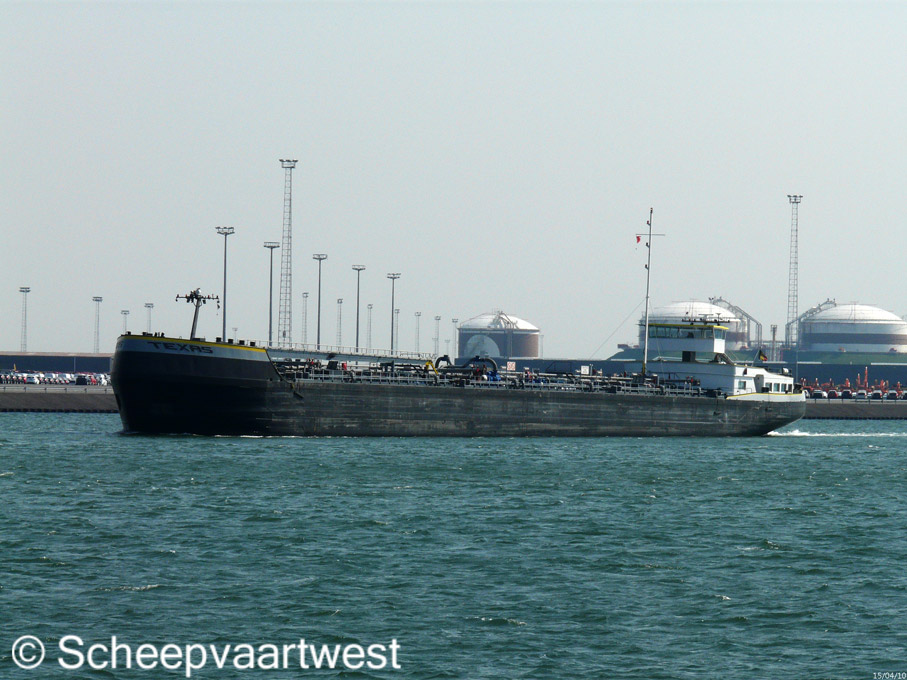

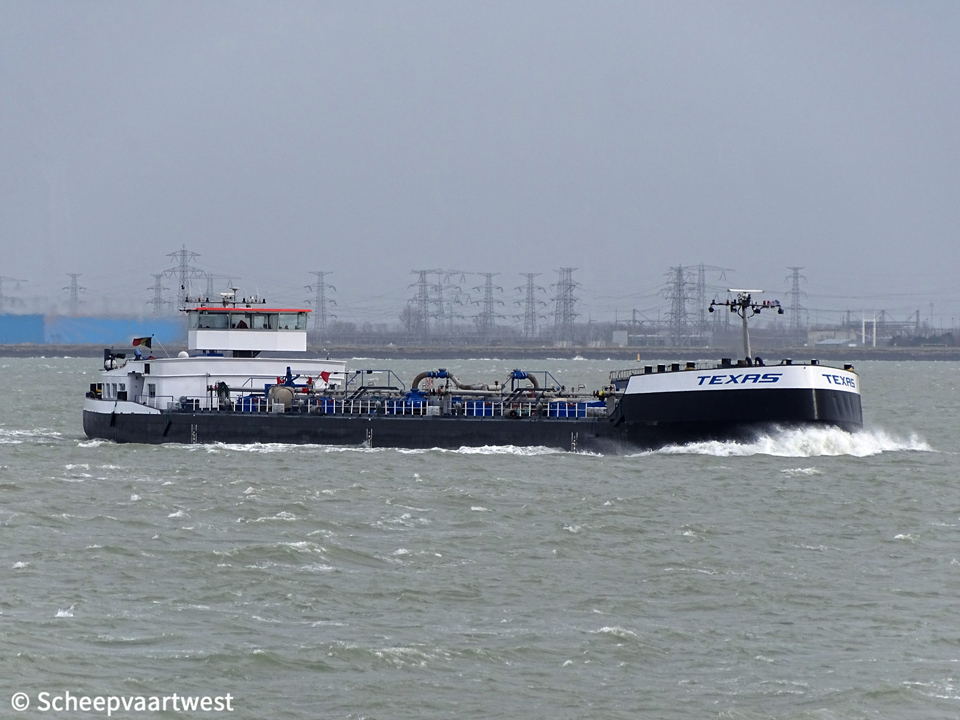

| Westerschelde 21/02/20 | Zeebrugge 15/04/10 | |||||||||
|
Name |
TEXAS |
|
Type |
Inland tanker for oil |
|
Navigation area |
Coastal, harbour and inland waterways |
|
ENI-number |
06004033 |
|
IMO-number |
9295309 |
|
Call sign |
OT2365 |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
2.011 t |
|
DWT |
Summer: 4.164 t |
|
Length |
109,98 m |
|
Breadth |
13,54 m overall |
|
Draught |
Summer: 3,80 m |
|
Freeboard |
1.120 mm |
|
Depth |
5,32 m |
|
Built |
2004 |
|
Date of order |
01/01/2003 |
|
Builder casco |
2003 Shipyard Baltiysky Zavod St. Petersburg Russia |
|
Builder completion |
2004 Shipyard Gerlien - Van Tiem B.V. Scheepsreparatie - Nieuwbouw Druten The Netherlands |
|
Hull type |
Single hull |
|
Main engine |
1x ABC type 6DZC1000 - 6 cylinder combustion engine 1.324 kW / 1.800 hp at 1.000 rpm Builder: Anglo Belgian Corporation N.V. Wiedauwkaai 43 9000 Gent Belgium |
|
Propeller |
1x Fixed propeller 5 bladed, diameter 1.900 mm with nozzle v.d. Giessen |
|
Gearbox |
Reintjes reduction: 3,286:1 |
|
Generators |
2x Cummins KTA 19-G3 generatorsets each 560 kVA 2x Cummins type 6BT 5.9G5 diesel generatorsets each 81,5 kVA |
|
Bow thruster |
2x De Gerlein van Tiem |
|
Number of cargo tanks |
12 |
|
Capacity cargo tanks |
4.357 m³ |
|
Starting compressor |
2x Atlas Copco Type: LT 40-30 KE - 30,0 bar |
|
Pumps |
2x Bornemann cargo pumps W8.4zk 85 Capacity min. 100 m³/h Capacity max. 1.100 m³/h - 8,0 Bar 1x Bornemann ballast pump 220 m³/h |
|
Bunker derrick |
v. Wijk Length 24 meter Discharging line 10” |
|
Cargo boiler |
Aalborg / Wiesloch type H5-0-TFO-17 - 1.750 kW |
|
Bow thruster |
2x Gerlien van Tiem type MKIC-1200 - 370 KW / 500 hp each |
|
Ballast pump engine room |
2x Azcue type VM-EP-100/20 - 100 m³/h each |
|
General service pump |
2x Azcue type CA-80/10A - 55 m³/h - 3,2 bar each |
|
Anchors |
2x Anchor 1.500 kg each |
|
Wheelhouse |
Kampers - lift capacity 3,80 m |
|
Store crane |
1x Hydraulic crane v. Wijk - SWL 1.000 kg at 10,00 m |
|
Accommodation |
2x Master cabins 4x Sailor cabins 1x Messroom |
|
Crew |
4 |
|
Manager |
Aegean Northwest Europe Nijverheidsstraat 7 2960 - Sint Job in 't Goor Belgium |
|
Owner |
Aegean Northwest Europe Nijverheidsstraat 7 2960 - Sint Job in 't Goor Belgium |
|
Previous owners |
Blatoma N.V. - 9060 Zelzate, Belgium Verbeke Shipping N.V. - 2960 Brasschaat, Belgium |
|
Latest data adjustment |
11 June 2020 |
