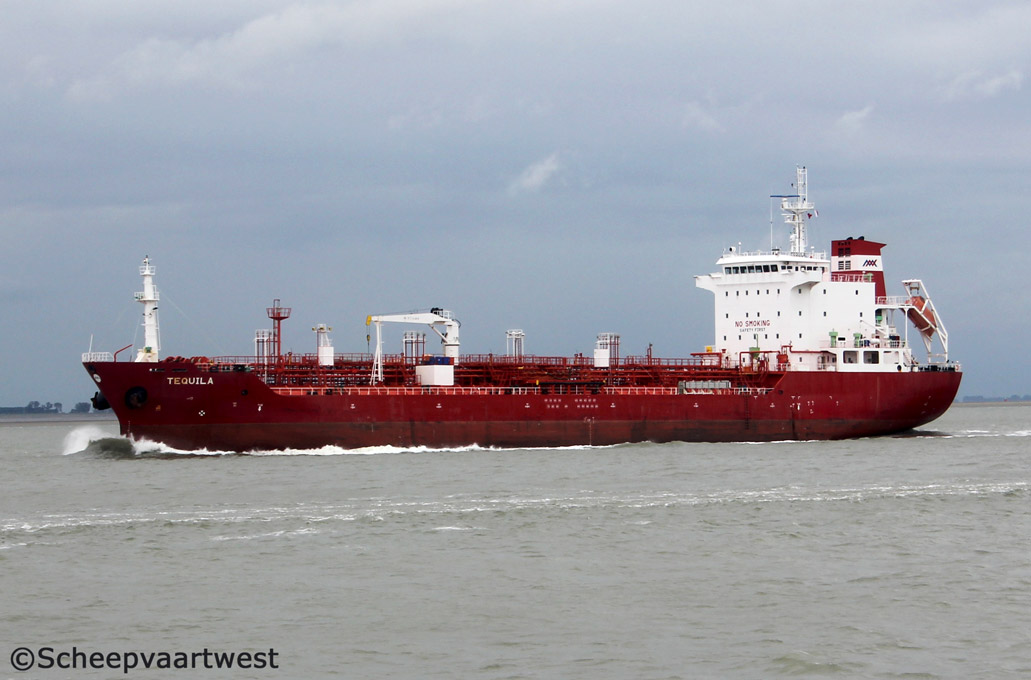

Tequila 03

Westerschelde 17 August 2014


Tequila 01   Tequila 02   Tequila 04   Tequila 05   Tequila IMO 9345219 06   Tequila IMO 9345219 07
Antwerpen 16/08/12 Antwerpen 16/08/12 Westerschelde 22/08/18 Westerschelde 21/06/20   Westerschelde 01/01/19   Westerschelde 01/01/19


Name

TEQUILA

Type

Double hull oil and chemical carrier

IMO-number

9345219

Call sign

V7MP3

Flag

Republic of Marshall Islands

Port of registry

Majuro

GT

8.539 t

Suez: 8.986,73 t

DWT

13.016,52 t

NT

4.117 t

Suez: 7.201,29 t

Panama: 7.254 t

Displacement

17.472,38 t

Length

128,60 m overall

120,40 m between perpendiculars

Breadth

20,40 m moulded

Draught

8,71 m

Depth

11,50 m

Freeboard

2.812 mm

Speed

15,0 knots

Built

2007

Keel laid

02/03/2007

Launch date

27/06/2007

Date of completion

10/09/2007

Builder

21st Century Shipbuilding Co., Ltd.

#14-1, Bongpyung-Dong

Tongyoung-Si, Gyungnam 650-140

South Korea

Yard number

CSN220

Hull material

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

Water tight: 11

Oil tight: 8

Main engine

1x STX/MAN-B&W 6S35MC-MK7 - 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.060 hp at 173,0 rpm

Propellers

1x Fixed pitch propeller

Manufacturer: Wärtsilä CME Zhenjiang Propeller Co.,Ltd

Boilers

Exhaust gas boiler - 12,0 MPa

Auxiliary boiler - 9,0 MPa

Manufacturer: Aalborg Ind. Ltd.

Generators

3x Main diesel generatorsets each 550 kW

Manufacturer: Taiyo Electric Co.,Ltd.

Bow thruster

382 kW

Number of cargo tanks

12

Cargo tank capacity

14.381,77 m³ / 14.094,13 t

Pumps

12x Cargo pump each 300 m³/h

Number of tanks

Ballast: 15

Fuel oil: 10

Lubricating oil: 9

Fresh water: 6

Diesel oil: 3

Waste water: 3

Chain: 2

Hydraulic oil: 1

Sludge: 1

Tank capacities

Diesel oil: 76,82 m³

Fresh water: 428,94 m³

Fuel oil: 692,19 m³

Hydraulic oil: 5,79 m³

Lube oil: 88,41 m³

Ballast: 5.278,25 m³

Lifting equipment

1x Hose handling crane - SWL 10,0 t

1x Stern hose handling crane - SWL 2,1 t

Manufacture: A Rim Mach. & Eng. Co.

Manager

Ships & Boats Marine

Alexandria

Egypt

ISM Manager

NGM Energy SA

47-49, Bouboulinas Street

Piraeus

Greece

Operator

V Ships Limited

Registered owner

Barker Hill Enterprises S.A.

Calle Beatriz M. De Cabal

PH Proconsa II Building

Octavo Piso Panama 5

Republic of Panama

Latest data adjustment

18 November 2020
