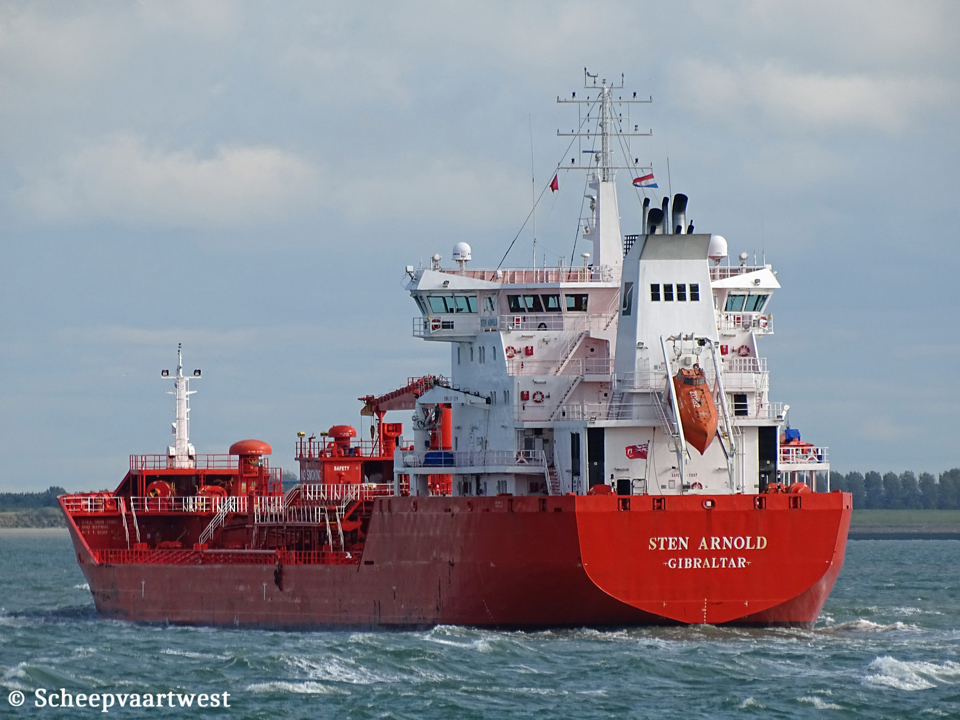

| Westerschelde 10 October 2011 |
 |
 |
 |
 |
 |
 |
|||||

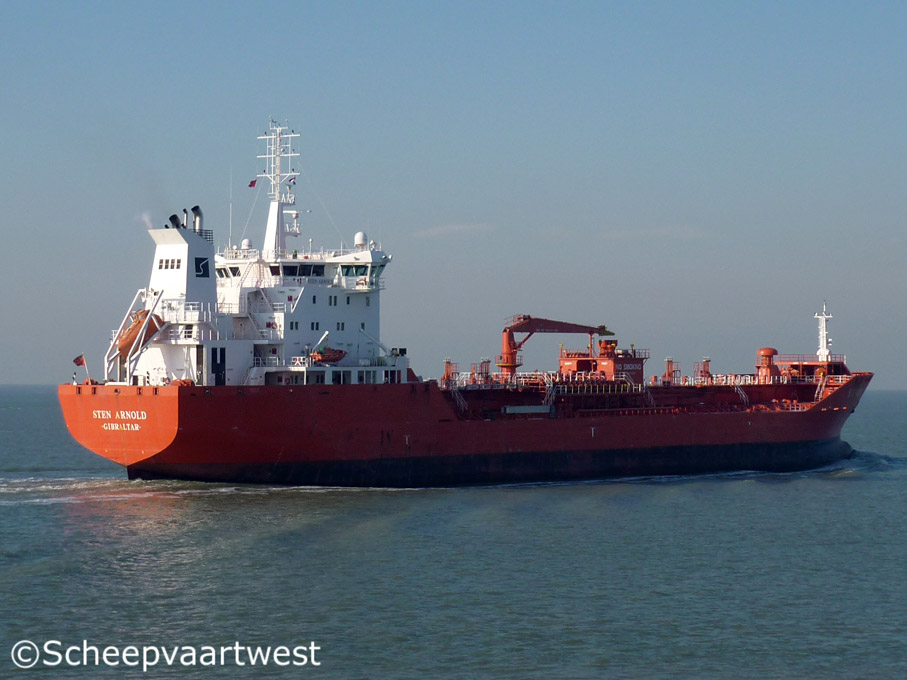

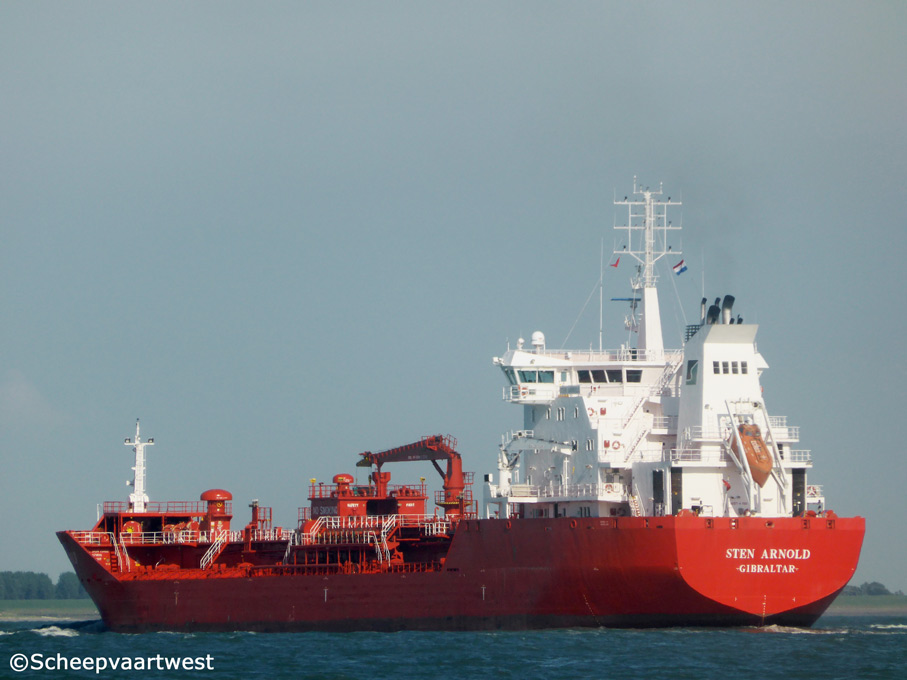

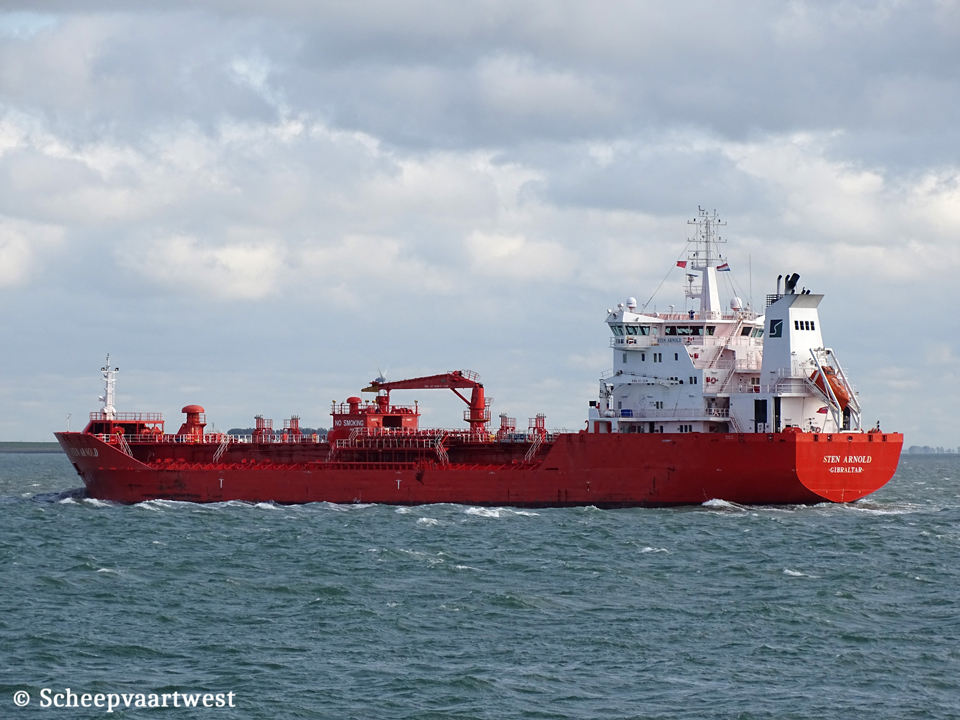

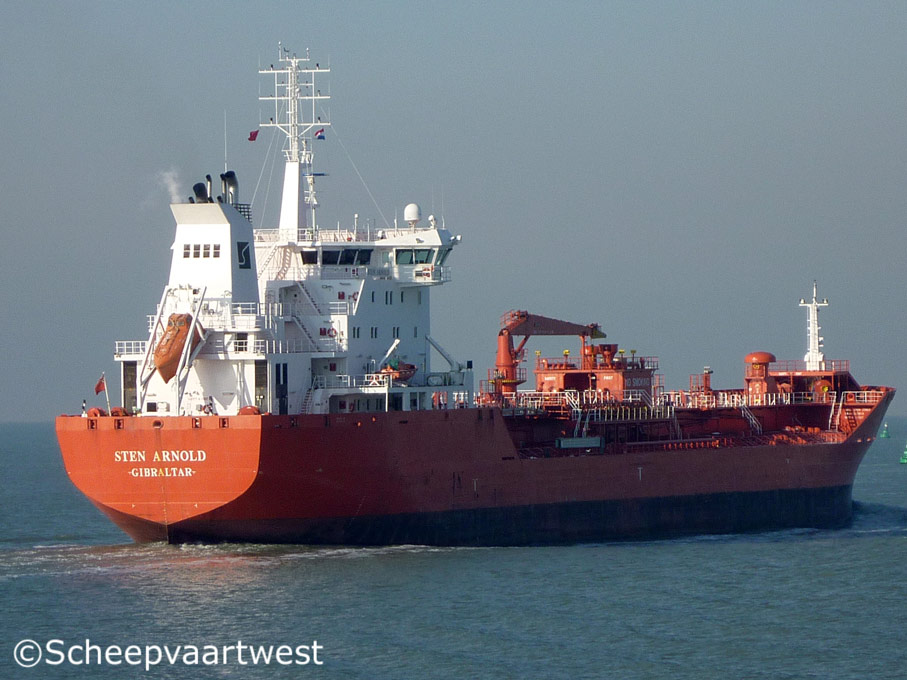

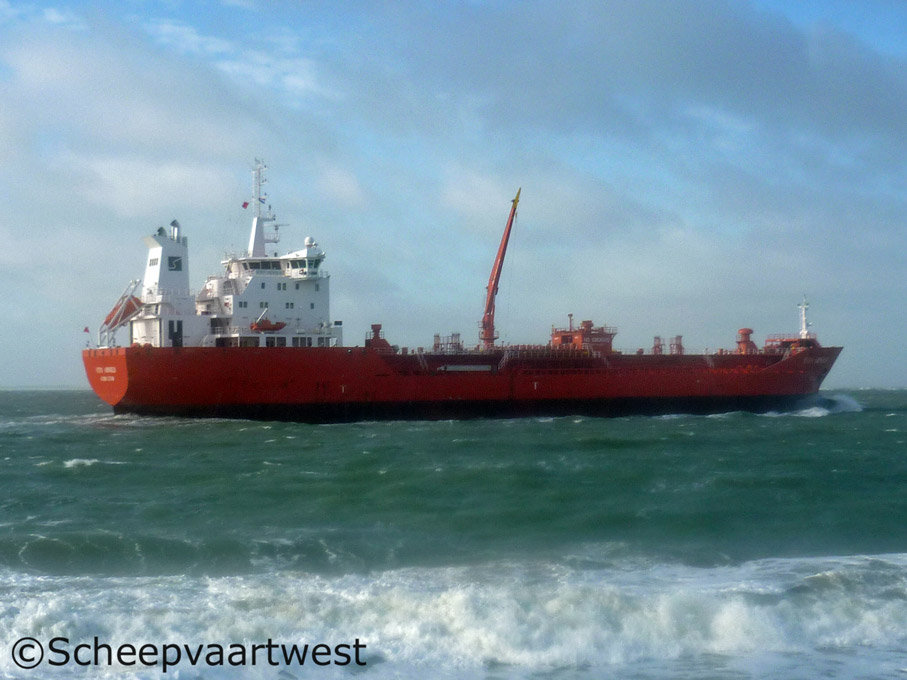

| Westerschelde 10/10/11 | Westerschelde 06/02/12 | Westerschelde 06/0212 | Westerschelde 14/07/14 | Westerschelde 09/10/19 | Westerschelde 09/10/19 | |||||
|
Name |
STEN ARNOLD |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9371610 |
|
Call sign |
ZDIB2 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
Norway |
|
GT |
11.935 t |
|
DWT |
Summer: 16.608 t |
|
NT |
5.131 t |
|
Length |
144,10 m overall 133,80 m between perpendiculars |
|
Breadth |
23,03 m extreme |
|
Draught |
8,91 m |
|
Keel to top of mast |
44,50 m |
|
Freeboard |
3.523 mm |
|
Depth |
12,412 m |
|
Speed |
16,0 knots |
|
Built |
2008 |
|
Keel laid |
22/02/2007 |
|
Launch date |
22/05/2007 |
|
Date of completion |
03/01/2008 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Feng Chan Village, Chang Xing Town Chongmin County Shanghai China |
|
Yard number |
H2364 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 Longitudinal: 1 |
|
Main engine |
1x Wärtsilä 6L46C - 4 stroke 6 cylinder 460 x 580 mm combustion engine 6.300 kW / 8.464 hp at 514 rpm Builder: Wärtsilä Finland Oy |
|
Propeller |
1x John Crane Lips CP 130 controllable pitch - 4 blades |
|
Boilers |
1x Auxiliary boiler, vertical shell type AQ-9 1x Auxiliary boiler, composite AQ-16 Builder: Aalborg Industries A/S |
|
Shaft generator |
1x AVK - 1.500 KW |
|
Generators |
2x Wärtsilä W4L20 diesel generatorsets 1x Wärtsilä W6L20 diesel generatorset Total 2.380 kW at 900 rpm Builder: Wärtsilä Finland Oy |
|
Bow thruster |
1x Brunvoll 800 kW |
|
Number of cargo tanks |
12 |
|
Cargo capacity 98% |
18.491 m³ |
|
Number of slop tanks |
3 |
|
Slop tank capacity |
681 m³ |
|
Number of segregations |
8 |
|
Number of pumps |
12x Framo cargo pumps each300 m³/h 2x Framo cargo pumps each 150 m³/h Pportable pumps |
|
Pumping capacity |
2.100 m³/h |
|
Bow to centre manifold |
71,80 m |
|
Heating capacity |
70°C |
|
Mooring equipment |
Number of ropes on drum forward: 9 Number of ropes on drum afterwards: 4 Number of ropes on drum midship: 2 |
|
Ballast capacity |
8.179,3 m³ |
|
Anchor chain |
Length: 577,5 m Diameter: 58 mm |
|
Lifting equipment |
1x Hose crane - SWL 5,0 t |
|
Manager |
Rederiet Stenersen A/S Solheimsgt. 13 5058 Bergen Norway |
|
Registered owner |
Stenship KS Care of Stenersen Chartering AS Vollsveien 2A 1366 Lysaker Norway |
|
Latest data adjustment |
29 October 2021 |
