| Antwepen 28 April 2010 |
 |
| Antwerpen 24/04/10 |
|
Name |

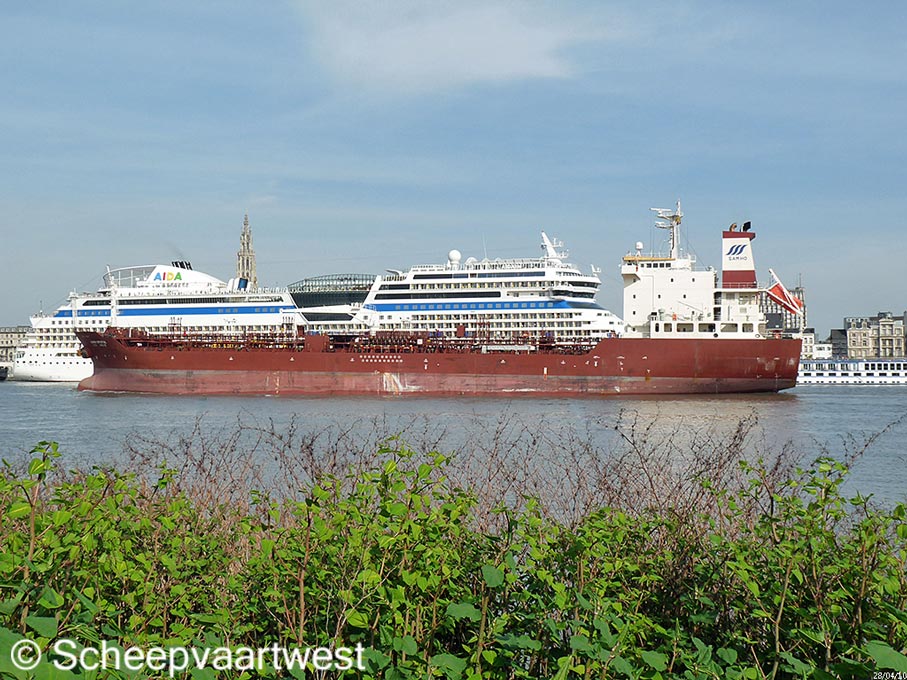

SAMHO CRYSTAL |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9541289 |
|
Call sign |
DSQM6 |
|
Flag |
South Korea |
|
Port of registry |
Jeju |
|
GT |
11.290 t |
|
DWT |
17.567 t |
|
NT |
5.263 t |
|
Length |
144,00 m |
|
Breadth |
20,00 m |
|
Reg. Dimensions L x B x D |
136,37 x 22,60 x 12,50 m |
|
Rule Dimensions L x B x D |
136,00 x 22,60 x 12,50 m |
|
Draught |
9,214 m |
|
Freeboard |
Summer: 3.312 mm |
|
Depth |
12,50 m |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Keel laid |
11.05.2009 |
|
Launch date |
22.06.2009 |
|
Builder |
Samho Shipbuilding Co., Ltd. |
|
Yard number |
1111 |
|
Hull type |
Double hull |
|
Number of trans. bulkheads |
13x watertight |
|
Main engine |
1x 2 stroke single acting 8 cylinder 350 x 1.400 mm diesel engine - output 5.920 kW at 173,0 rpm Date of Manufacturer: 06.2009 Manufacturer: STX Engine Co., Ltd. South Korea |
|
Boilers |
1x Auxiliary water tube boiler - 9,0 bar Heating surface: 184,2 m² 1x Auxiliary water tube boiler - 16,0 bar Heating surface: 218,7 m² Date of Manufacturer: 04.2009 Manufacturer: Miura Co., Ltd. Japan |
|
Generators |
4x Diesel generatorsets each 937 kVA - 450 Volt |
|
Number of decks |
1 |
|
Tank capacities |
Fuel oil: 935 m³ Fresh water: 469,10 m³ Water ballast: 7.681 m³ |
|
Radio Installations |
GMDSS A1+A2+A3: Global Maritime Distress Safety System |
|
Manager |
Samho Shipping Co., Ltd. |
|
Technical manager |
Samho Shipping Co., Ltd. |
|
Operator |
Samho |
|
Owner |
Samho Co., Ltd. |
