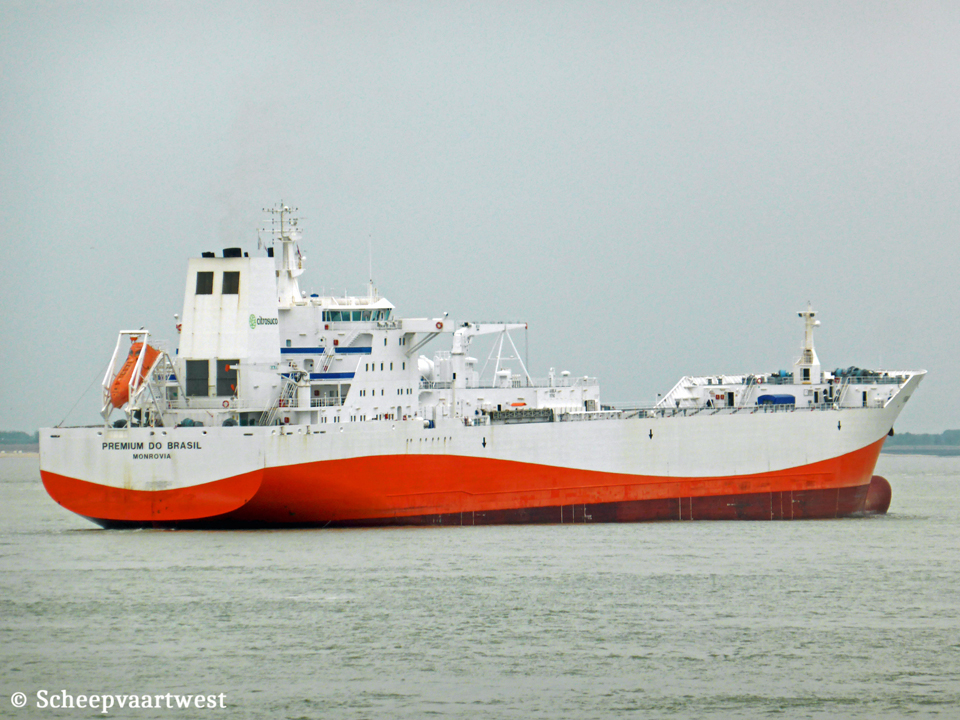

Westerschelde 26 April 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 26/04/19 | Westerschelde 01/08/14 | Westerschelde 29/09/15 | Zeebrugge 05/07/09 | Zeebrugge 04/05/06 | Westerschelde 15/07/17 | |||||
 |
||||||||||
| Westerschelde 14/05/15 | ||||||||||
|
Name |
PREMIUM DO BRASIL |
|
Previous names |
2003 Launch as: Premium Do Brazil |
|
Type |
Fruit juice carrier - Equipped for carriage of containers - Refrigerated cargo |
|
IMO-number |
9242089 |
|
Call sign |
A8BL4 |
|
Flag |
Liberia |
|
Port of registration |
Monrovia |
|
GT |
33.005 t |
|
DWT |
Summer: 43.002 t |
|
NT |
9.902 t |
|
Number of 20ft containers |
569 |
|
Reefer capacity |
75 |
|
Length |
204,98 m overall 194,30 m between perpendiculars 197,35 m registered |
|
Beam |
32,20 m overall |
|
Draught |
11,40 m |
|
Keel to mast end |
45,00 m |
|
Forecastle |
23,40 m |
|
Freeboard |
7.814 mm |
|
Depth |
19,20 m moulded |
|
Speed |
Service: 20,8 knots |
|
Built |
2003 |
|
Keel laid |
11/04/2002 |
|
Launch date |
11/09/2002 |
|
Date of completion |
20/08/2003 |
|
Builder casco |
Daewoo-Mangalia Heavy Industries Mangalia Romania Yard number: 5002 |
|
Builder completion |
Kelven Flore AS Shipyard Norway Yard number 148 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä-Sulzer 7 RTA 84 C - 2 stroke single acting 7 cylinder 840 x 2.400 mm combustion engine 28.350 kW / 38.545 hp at 102 rpm Year of manufacture: 2001 Manufacturer: Wärtsilä Italia S.p.A. Bagnoli della Rosandra, 334 34018 San Dorligo della Valle (Trieste) Italy |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 14,8 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 221,0 m² Year of Manufacture: 2001 Manufacturer: Aalborg Industries A/S Division Boiler Production Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
1x 440/220 V - 4.854 kVA 1x 440 V - 2.500 kVA 1x 440 V - 238 kVA |
|
Shaft generator |
1x 2.500 kVA |
|
Generators |
3x Wärtsilä 8L20 main diesel generatorsets each 1.618 kVA |
|
Emergency generator |
1x Volvo Penta TAMD103A-RC diesel generatorset 238 kVA |
|
Compressed air receivers |
2x Receivers, each 3.800 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 2.000 litres - 8,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 1.500 kW, forward |
|
Number of cargo tanks |
16 |
|
Largest cargo tank |
1.820 m³ |
|
Number of holds |
4 |
|
Number of insulated holds |
4 |
|
Number of separate cooled holds |
4 |
|
Total hold capacity |
29.200 m³ |
|
Tank capacities |
Ballast: 20.200 m³ Fuel oil: 4.684 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 660,00 m |
|
Refrigerating |
Maker of Refrigerating Machinery: York Refrigation A/S Marine Division 3x Compressors, Model SAB 128 HF Temperature of insulated Spaces, min.: -10°C Temperature of Sea Water, max.: 32°C |
|
Evaporators / Condensers |
Number of air cooler: 18 Number of brine pump: 3 Number of brine cooler: 2 Number of circulating fan: 64 Number of condenser: 3 Number of cooling water pump: 3 Number of liquid receiver: 1 Number of oil separator: 3 Number of Refrigerating machinery room fan: 1 Kind of Cooling: Brine cooling |
|
Crew |
20 |
|
Manager |
Citrosuco Citrosuco Europe N.V. Geeraard van Den Daelelaan 9000 Gent Belgium |
|
Registered owner |
Premium International Shipping Corporation c/o Maritime Services Aleuropa GmbH Oberhafenstr. 1 20097 Hamburg Federal Republic of Germany |
|
Latest data adjustment |
20 June 2023 |
