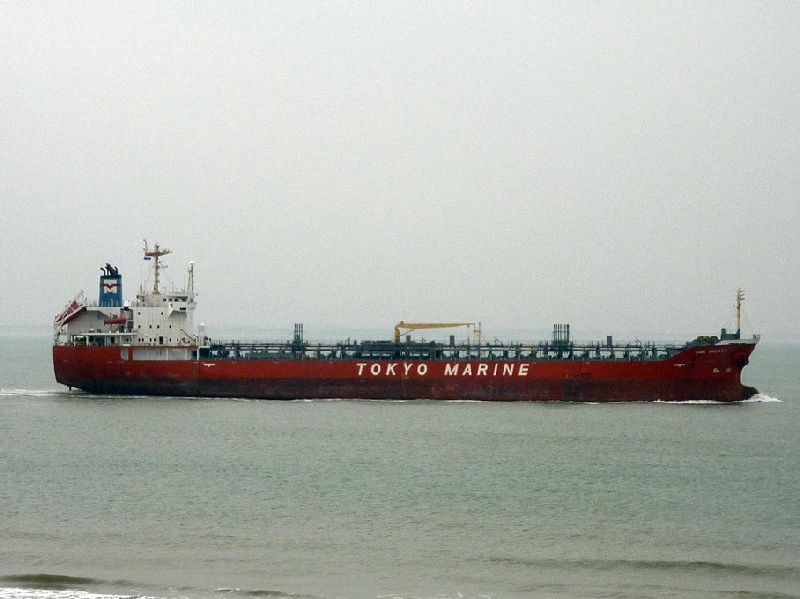

| Westerschelde 06 November 2011 |
|
Name |
OAK GALAXY |
|
Type |
Oil / Molasses / Chemical |
|
IMO-number |
9317195 |
|
Call sign |
3EBHG |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
12.105 t |
|
DWT |
Summer: 19.997 t |
|
NT |
6.378 t |
|
Length |
147,83 m overall 141,21 m between perpendiculars |
|
Breadth |
24,20 m |
|
Draught |
9,461 m |
|
Moulded L x B x D |
141,00 x 24,20 x 12,85 m |
|
Registered L x B x D |
141,20 x 24,20 x 12,85 m |
|
Air draft |
Lightship: 33,62 m Keel to mast: 39,04 m |
|
Freeboard |
Summer: 3.434 mm |
|
Depth |
12,85 m moulded |
|
Speed |
14,5 knots |
|
Built |
2005 |
|
Keel laid |
01.09.2004 |
|
Launch date |
24.01.2005 |
|
Date of completion |
27.05.2005 |
|
Builder |
Shin Kurushima Hiroshima Dockyard |
|
Yard number |
5336 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi 7UEC45LA - 2 stroke single acting 7 cylinder 450 x 1.350 mm diesel engine - 6.230 kW / 8.471 hp at 158,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Propeller |
1x Fixed pitch propeller |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 16,0 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Diesel generatorsets each 1.965 kVA |
|
Cargo capacity |
20.862 m³ |
|
Number of tanks |
22 |
|
Number of pumps |
22 x Pumps with a total capacity of 4.100 t/h |
|
Manifolds |
Height above deck: 2,70 m Distance from bow to centre manifold: 76,62 m |
|
Maximum heating capacity |
80°C |
|
Tank capacities |
Fuel oil: 1.102 m³ Fresh water: 305 m³ Ballast water: 7.865 m³ |
|
Lifting equipment |
1x Crane - SWL 2,0 t 1x Crane - SWL 6,0 t |
|
Manager |
Tohsei Kaiun Co., Ltd. |
|
Operator |
Tokyo Marine |
|
Registered owner |
Maya Line Corp. |
