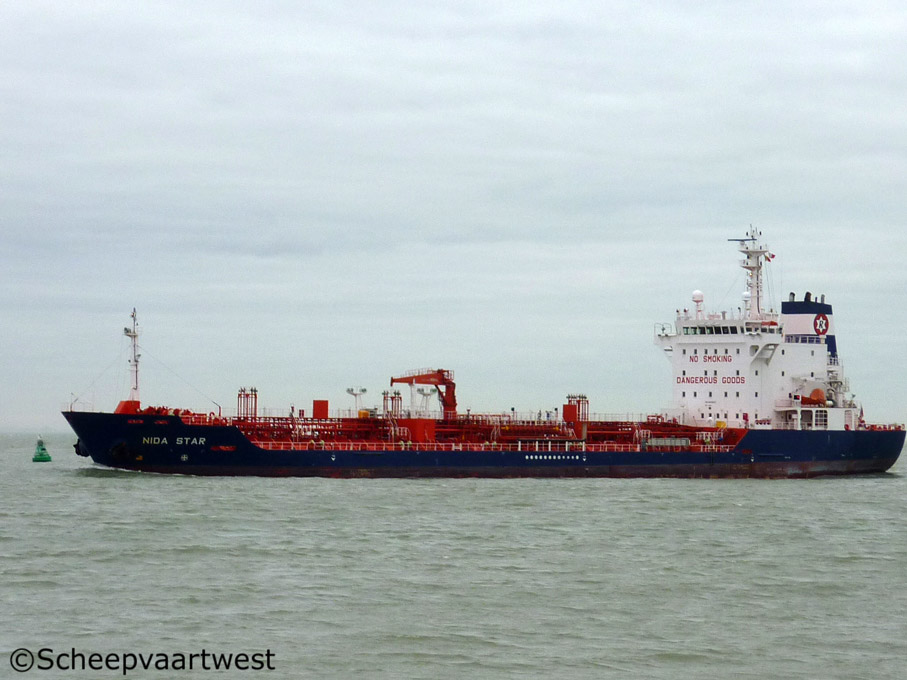

Nida Star 01
Westerschelde 09 January 2012

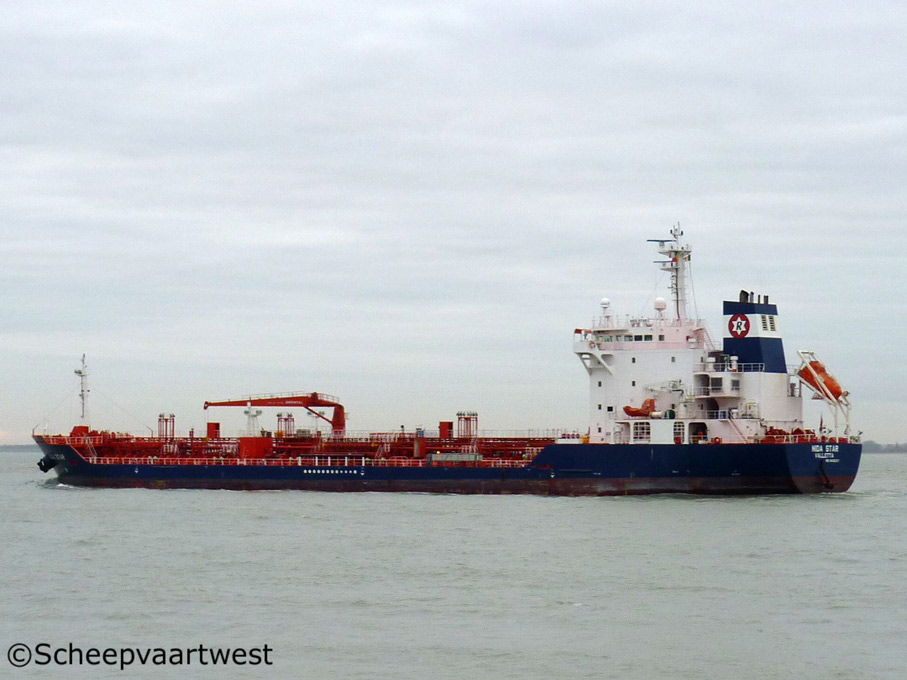

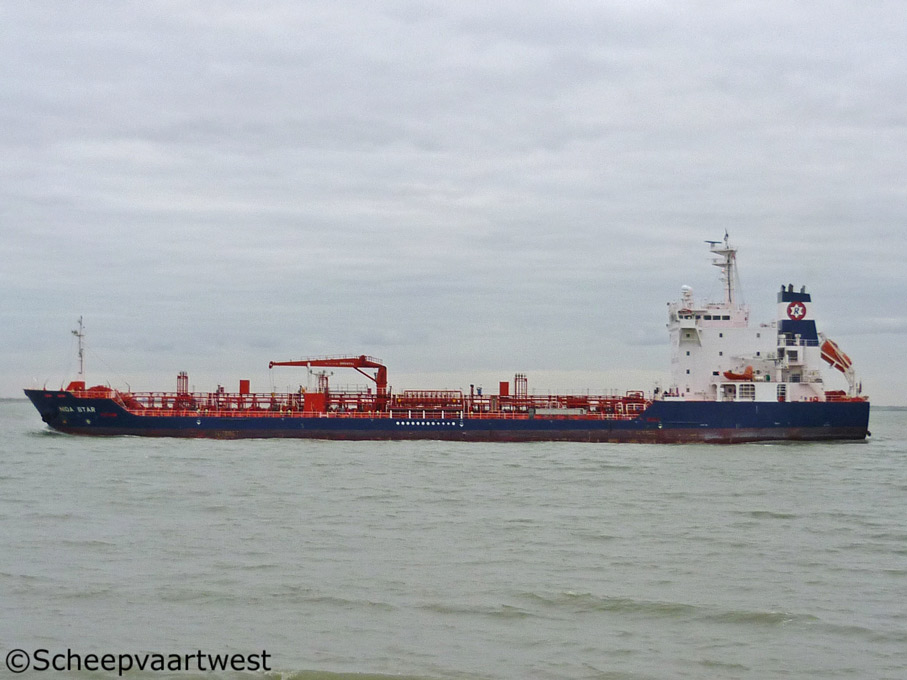

Nida Star 04   Nida Star 06
Westerschelde 09/01/12 Westerschelde 09/01/09


Name

NIDA STAR

Type

Chemical tanker - Oil tanker

IMO-number

9425227

Call sign

9HA2356

Flag

Malta

Port of registry

Valletta

GT

8.621 t

DWT

12.593 t

NT

4.014 t

Length

129,03 m overall

120,75 m registered

Breadth

20,40 m registered

Draught

8,70 m

Freeboard

2.812 mm

Depth

11,50 m

Speed

15,1 knots

Keel laid

12.06.2009

Launch date

21.09.2009

Date of completion

27.08.2010

Builder

Dae Sun Shipbuilding & Engineering Co., Ltd.
12, 4-ga, Bongnae-dong, Youngdo-gu
606-810 Busan 11
Republic of Korea

Yard number

484

Hull material

Shipbuilding steel (standard)

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN B & W 8S35MC-MK7 - 2 stroke 8 cylinder 350 x 1.400 mm diesel engine - 5.920 kW at 173,0 rpm

Year of Manufacture: 2009

Manufacturer: STX Engine Co., Ltd.
418 Cheongdeok-dong Giheung-gu
Yongin-si ,446-915 Kyonggi-do
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 183 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 78,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 80,0 m²

Year of manufacture: 2009

Manufacturer: Aalborg Industries Co. Ltd.
An Hong Marine Industrial Zone An Duong District
Hai Phong
Socialist Republic of Vietnam

Electric installations

3x Plant each 450 V - 750 kVA

1x Plant 445 V - 200 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

3x Plants each 24 V - 200 Ah

Generators

3x Main diesel generatorsets each 750 kVA

Emergency generator

1x Diesel generatorset 200 kVA

Batteries

1x Battery for start emergency engine 200 Ah

1x Battery for UPS radio 200 Ah

3x Batteries for other purpose each 200 Ah

Compressed air receivers

2x Receivers each 2.000 litres - 33,0 bar

1x Receiver 250 litres - 33,0 bar

1x Receiver 150 litres - 8,3 bar

1x Receiver 2.000 litres - 7,7 bar

Bow thruster

1x Transverse thruster - 480 kW, forward

Cargo tanks capacity

Tank 1P: 875 m³

Tank 1S: 883 m³

Tank 2P: 1.087 m³

Tank 2S: 1.086 m³

Tank 3P: 1.210 m³

Tank 3S: 1.203 m³

Tank 4P: 1.211 m³

Tank 4S: 1.202 m³

Tank 5P: 1.211 m³

Tank 5S: 1.203 m³

Tank 6P: 1.044 m³

Tank 6S: 1.044 m³

Total: 13.654 m³ at 98%

Slop tanks

Tank P: 341 m³

Tank S: 333 m³

Cargo capacity

14.227 m³

Pumps

12x Framo SD150 - 300 m³/h

2x Framo SD100 - 100 m³/h (slop tanks)

Tank capacities

Fuel oil: 650 m³

Diesel oil: 77 m³

Lub oil: 78 m³

Water ballast: 5.273 m³

Anchor equipment

3x Anchors weight each 4.590 kg

Chain length: 550,00 m

Lifting equipment

1x Hose crane - SWL 10,0 t

Accommodation

For a crew of 24 persons with heating, ventilation and air-conditioning

Manager

NSC Tank GmbH & Cie. KG
Van-der-Smissen-Str. 9
22767 Hamburg
Federal Republic of Germany

Operator

NSC Holding GmbH & Cei. KG

Registered owner

MT “NIDA STAR” Schifffahrtsgesellschaft mbH & Co. KG
Blinke 4
26789 Leer
Federal Republic of Germany
