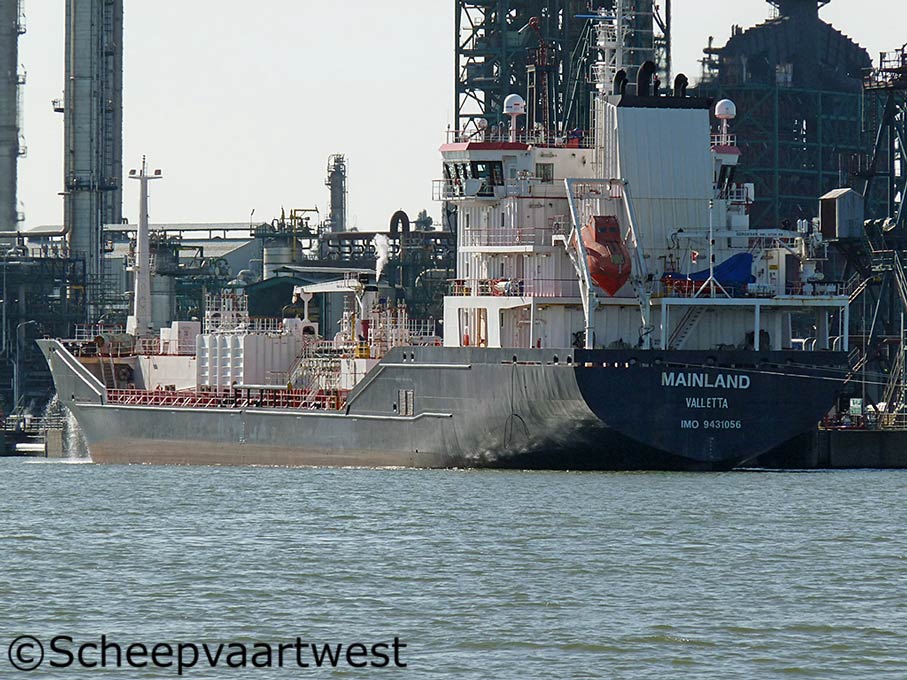

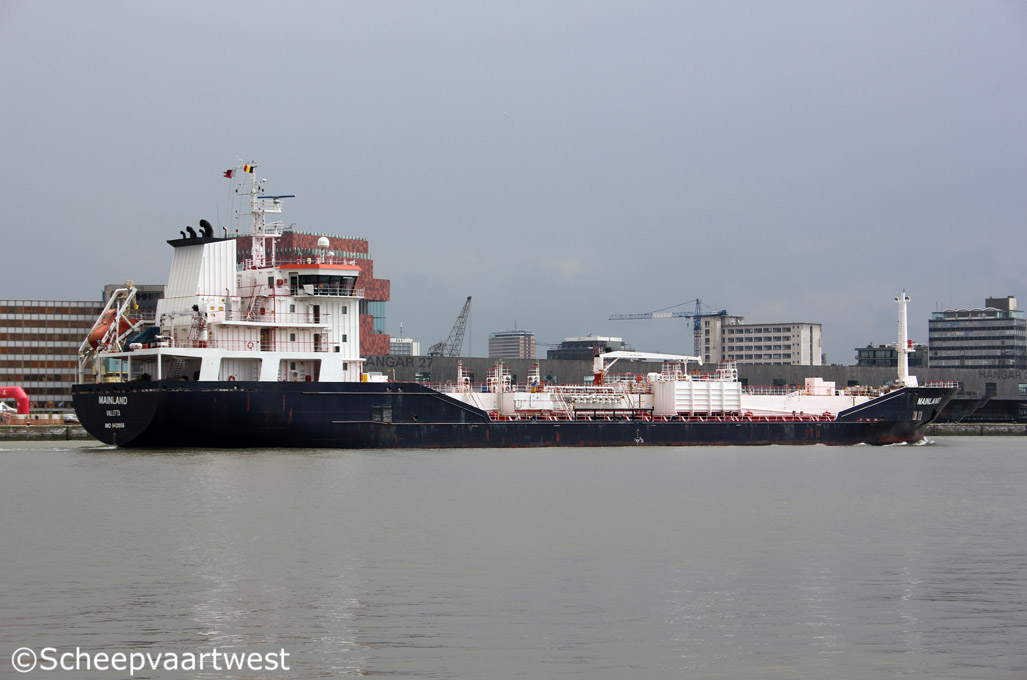

| Antwerpen 15 July 2012 |
|
 |
 |
 |
 |
 |
|||||

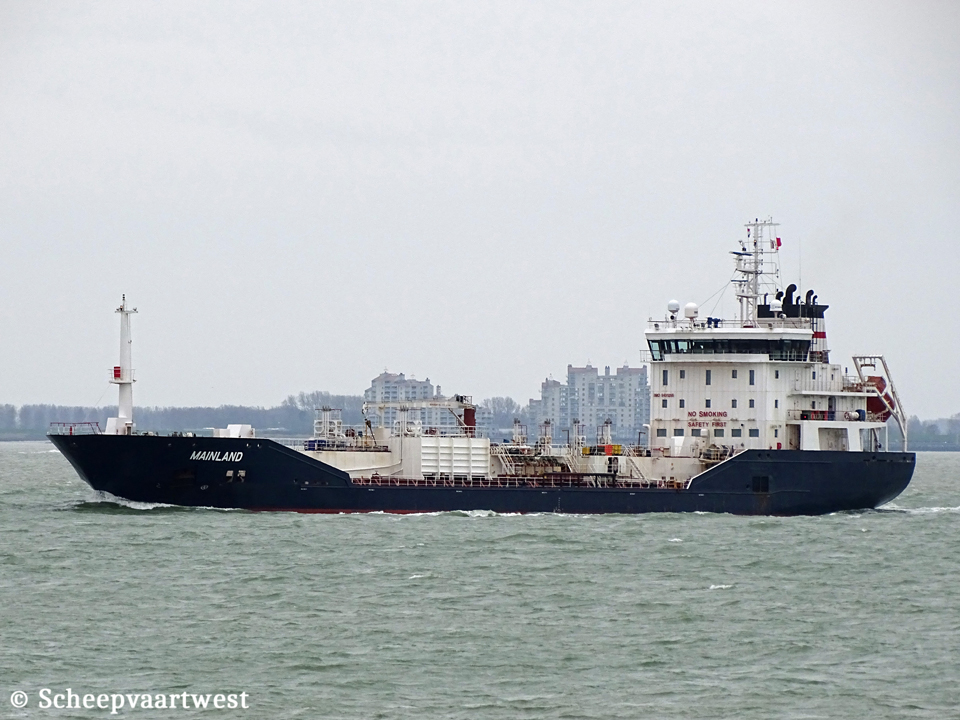

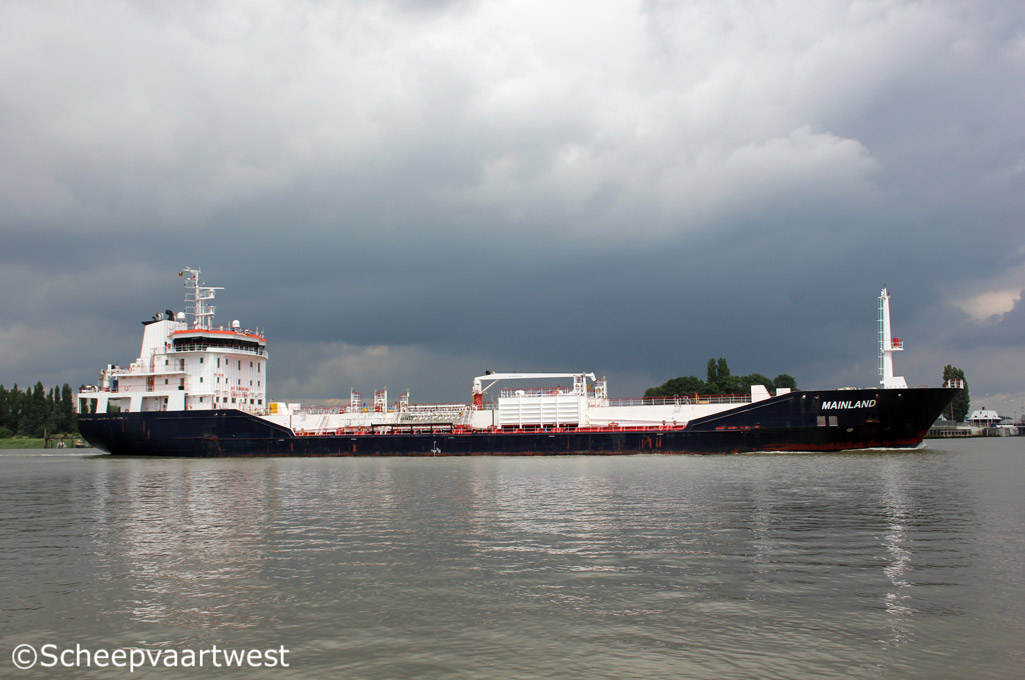

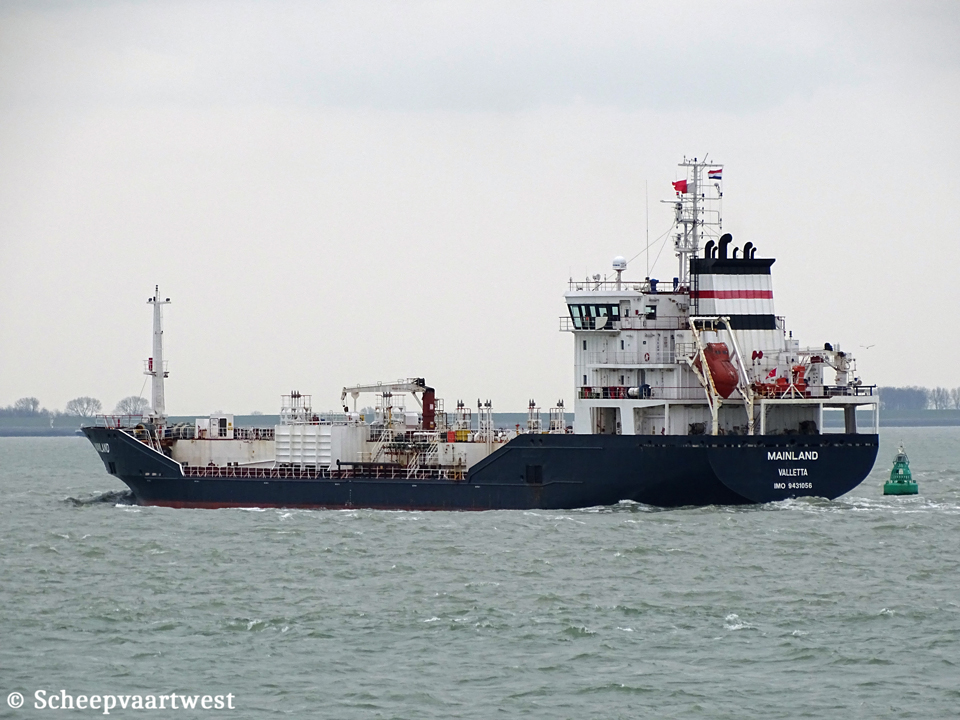

| Antwerpen 15/07/12 | Antwerpen 15/07/12 | Antwerpen 06/04/10 | Westerschelde 17/03/20 | Westerschelde 17/03/20 | Westerschelde 08/03/19 | |||||
|
Name |
MAINLAND |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9431056 |
|
Call sign |
9HSF9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
5.823 t |
|
DWT |
Summer: 7.749,91 t Winter: 7.494 t |
|
NT |
2.451 t |
|
Length |
122,66 m overall 115,94 m between perpendiculars |
|
Breadth |
17,20 m |
|
Draught |
summer: 6,86 m Winter: 6,72 m |
|
Keel to mast end |
34,88 m |
|
Freeboard |
1.952 mm |
|
Depth |
8,80 m |
|
Speed |
14,5 knots |
|
Built |
2008 |
|
Date of completion |
10/11/2008 |
|
Builder |
Gisan Gemi Shipbuilding & Shipping Istanbul Turkey |
|
Yard number |
45 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.217 hp at 600 rpm Builder:Caterpillar Motoren |
|
Electrical propulsion gen. |
1x 1.200 kW - 440 Volt |
|
Propelling system |
1x Screw Propeller Controllable pitch |
|
Boilers |
2x CHO 57,00 m² - 13,0 bar 1x CHR 47,20 m² - 10,0 bar 1x CHS 18,00 m² - 10,0 bar |
|
Generators |
3x Diesel generatorsets each 725 kVA - 580 kW - 842 hp |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo capacity |
98%: 8.429 m³ |
|
Slop tank |
98%: 186,749 m³ |
|
Segregations |
14 (double valve) |
|
Number of pumps |
12x cargo pumps each 350 m³/h |
|
Tank capacities |
Fuel: 517,89 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Crew size |
19 |
|
Commercial manager |
Swede Chem Tankers AB Styrmansgatan 4 SE-114 54 Stockholm Sweden |
|
ISM manager |
Besiktas Likid Tasimacilik Denizcilik Ve Ticaret A.S. Kat 15, Blok A, Piyale Pasa Bulvari Memorial Centre, Okmeydani, Sisli 34385 Istanbul Turkey |
|
Owner |
Ocean Med Shipping Ltd. Care of Swede Chem Tankers AB Styrmansgatan 4 SE-114 54 Stockholm Sweden |
|
Latest data adjustment |
26 March 2022 |
