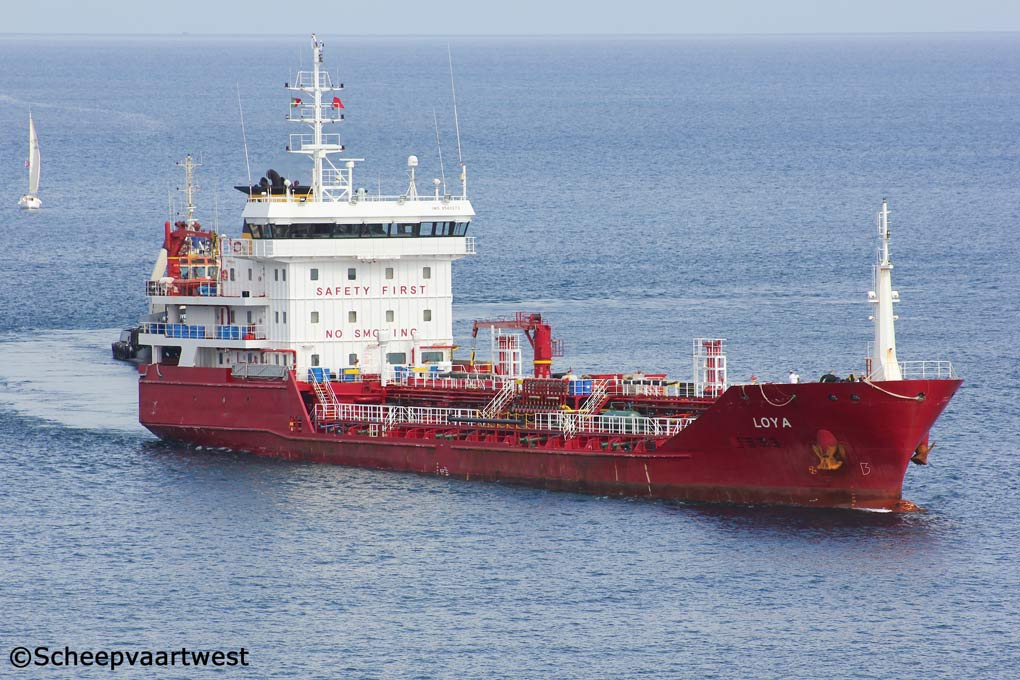

Loya 07

Ponta Delgada, Azores 12 June 2015

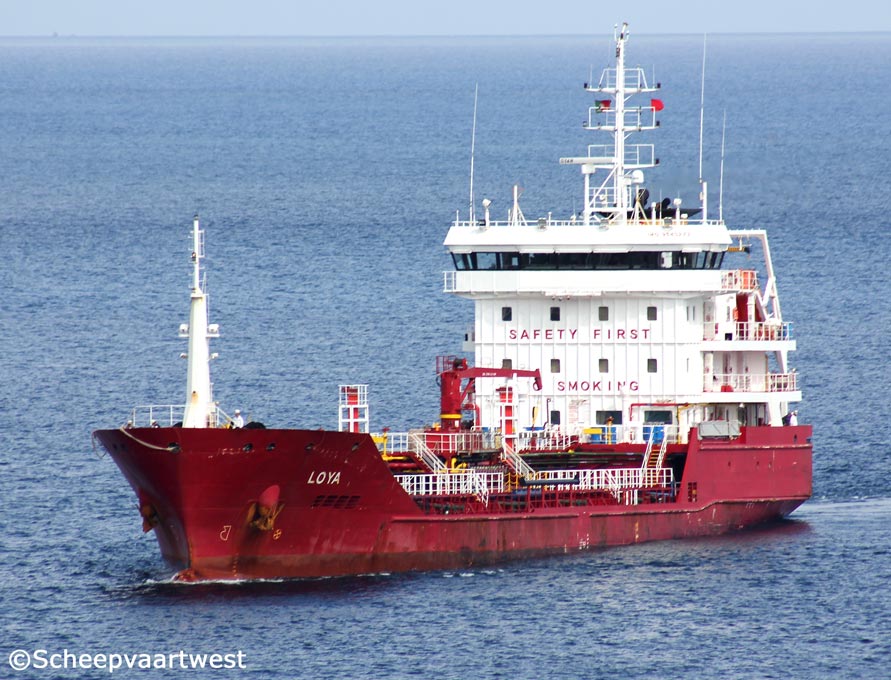

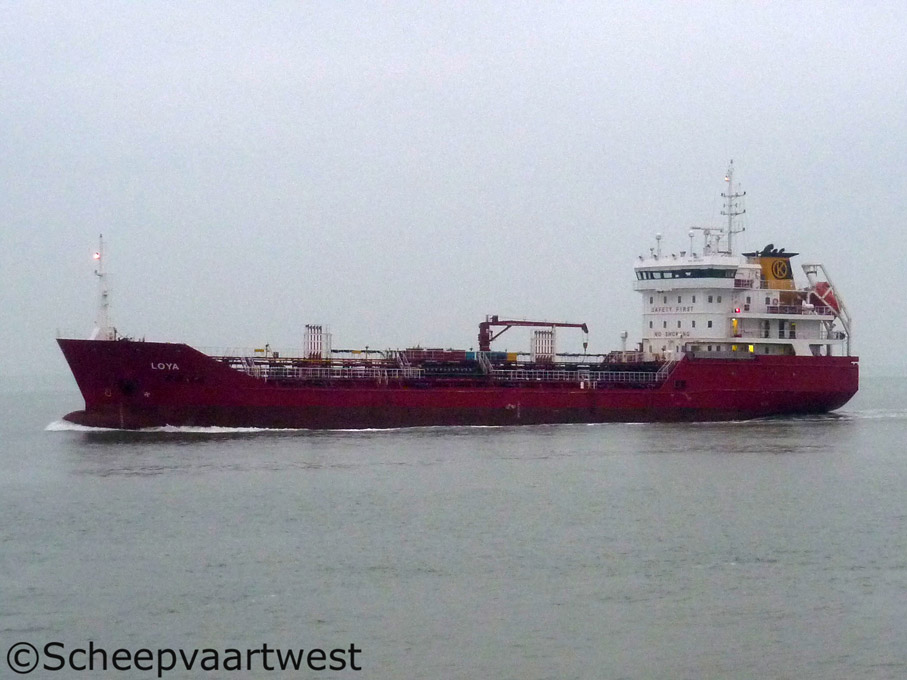

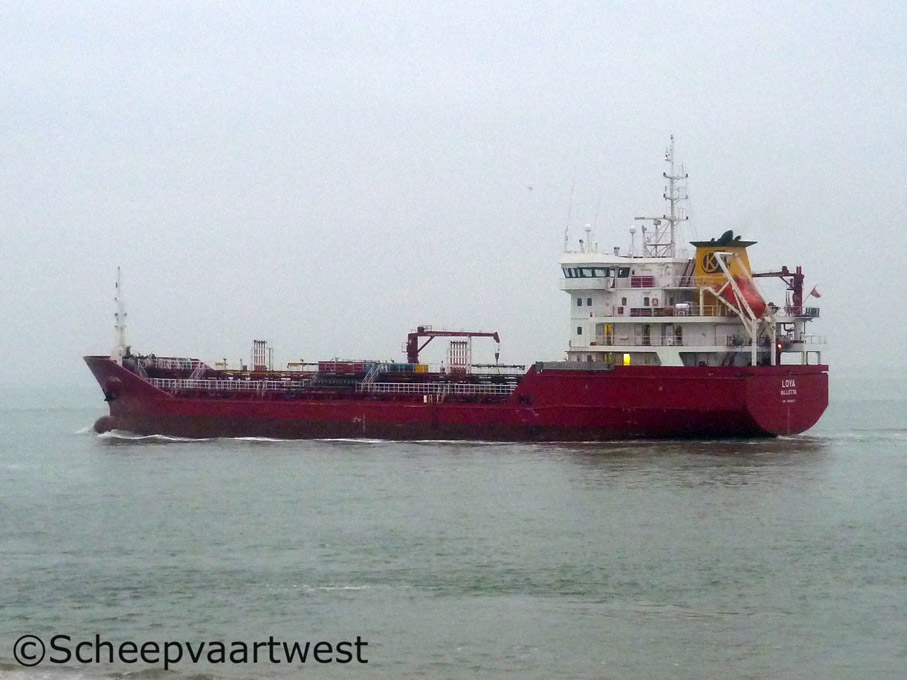

Loya 06   Loya 01   Loya 04
Ponta Delgada 12/06/15 Westerschelde 27/09/11 Westerschelde 27/09/11


Name

LOYA

Type

Oil & chemical tanker

IMO-number

9540273

Call sign

9HA2452

Flag

Malta

Port of registry

Valletta

GT

2.962 t

DWT

Summer: 3.912,97 t

Winter: 3.773 t

NT

1.215 t

Length

92,96 m overall

88,55 m between perpendiculars

Breadth

14,60 m

Draught

Summer: 5,80 m

Freeboard

1.610 mm

Depyh

7,40 m

Speed

14,0 knots

Built

2010

Date of completion

28.09.2010

Builder

Desan Tersanesi
Istanbul
Turkey

Yard number

18

Hull material

Steel

Hull type

Double hull

Main engine

1x Man B&W 8L28/32A - 4 stroke 8 cylinder 280 x 320 mm diesel engine -1.960 kW / 2.663 hp at 775 rpm

Builder: STX Engine Co., Ltd.

Propelling system

1x Screw propeller controllable pitch

Boilers

2x CHO S MAN 35,00 m² - 10,0 bar
1x CHR S MAN 39,00 m² - 10,0 bar

Generators

3x Main diesel generatorsets each 537 kVA - 430 kW - 611 hp

Emergency generators

1x Diesel generatorset 130 kVA - 104 kW - 158 hp

Number of tanks

10 + 1

Segregation

11 Grades

Coating

Marineline

Pumps

11x Deepwell 500 m³/h

Total capacity of tanks

4.453,44 m³

Manifold

To main deck: 2.000 mm

To stern: 45,19 m

To bow: 44,77 m

To rail: 3,03 m

Heating capacity

80°C

Tank capacities

Fuel oil: 169 m³

Diesel oil: 42 m³

Ballast water: 1.555 m³

Lifting equipment

1x Crane - SWL 3,0 t

Manager

K Tankering & Shipmanagement
Istanbul
Turkey

Operator

K Tankercilik Ve Gemi Isletmeciligi A.S

Owner

Kaptanoglu Holding
Istanbul
Turkey

Registered owner

Loya Maritime Ltd.

Latest data adjustment

09 July 2015
