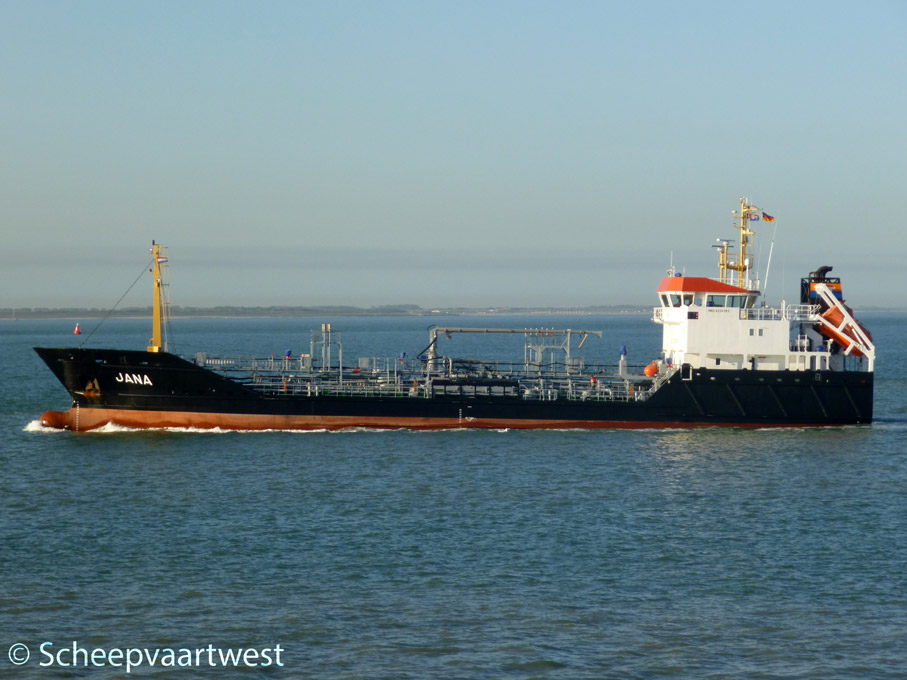

Jana - IMO 9330185

Name

JANA

Type

Chemical tanker - Oil tanker

IMO-number

9330185

Call sign

DFIH

Flag

Germany

Port of registry

Cuxhaven

GT

1.164 t

DWT

1.323 t

NT

366 t

Length

69,34 m overall

64,89 m registered

Breadth

11,70 m registered

Draught

3,70 m

Forecastle

7,09 m

Poop

14,60 m

Depth

5,20 m

Speed

11,0 knots

Built

2005

Keel laid

11.04.2005

Launch date

14.09.2005

Date of completion

07.11.2005

Builder

MW Abwicklungsgesellschaft GmbH
Woltmanstr. 2
27472 Cuxhaven
Federal Republic of Germany

Yard number

251

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Partly double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN B&W 6 L23/30 A - 4 stroke 6 cylinder 225 x 300 mm diesel engine - 750 kW at 900 rpm

Year of manufacture: 2005

Manufacturer: MAN B&W Diesel A/S Frederikshavn
Niels Juels Vej 15
9900 Frederikshavn
Kingdom of Denmark

Propellers

1x Controllable pitch propeller - aft at 233 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 47,9 m²

Year of manufacture: 2005

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

2x Plants each 400/230 V - 200 kVA

1x Plant 400 V - 375 kVA

1x Plant 400 V - 87,2 kVA

1x Plant 24 V - 88 Ah

1x Plant 24 V - 143 Ah

Shaft generator

1x 375 kVA

Generators

2x Main diesel generatorsets each 200 kVA

Emergency generator

1x Diesel generatorset 87,2 kVA

Batteries

2x Batteries for automation each 143 Ah

2x Batteries for start emergency engine each 88 Ah

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 150 kW, forward

Pumps

4x Bornemann pumps provides a rate up to 130 m³/h each

Cargo tank capacity

1.544 m³

Anchor equipment

3x Anchors weight each 1.290 kg

Chain length: 385,00 m

Manager

Cuxhavener Mineralöl GmbH & Co. Beteiligungs-KG
Hafenkaje 1
27472 Cuxhaven
Federal Republic of Germany

Managing owner

Kapt. R. Glüsing
Hafenkaje 1
27472 Cuxhaven
Federal Republic of Germany

Registered owner

Reederei Glüsing KG
Hafenkaje 1
27472 Cuxhaven
Federal Republic of Germany

Last update

01.04.2013
