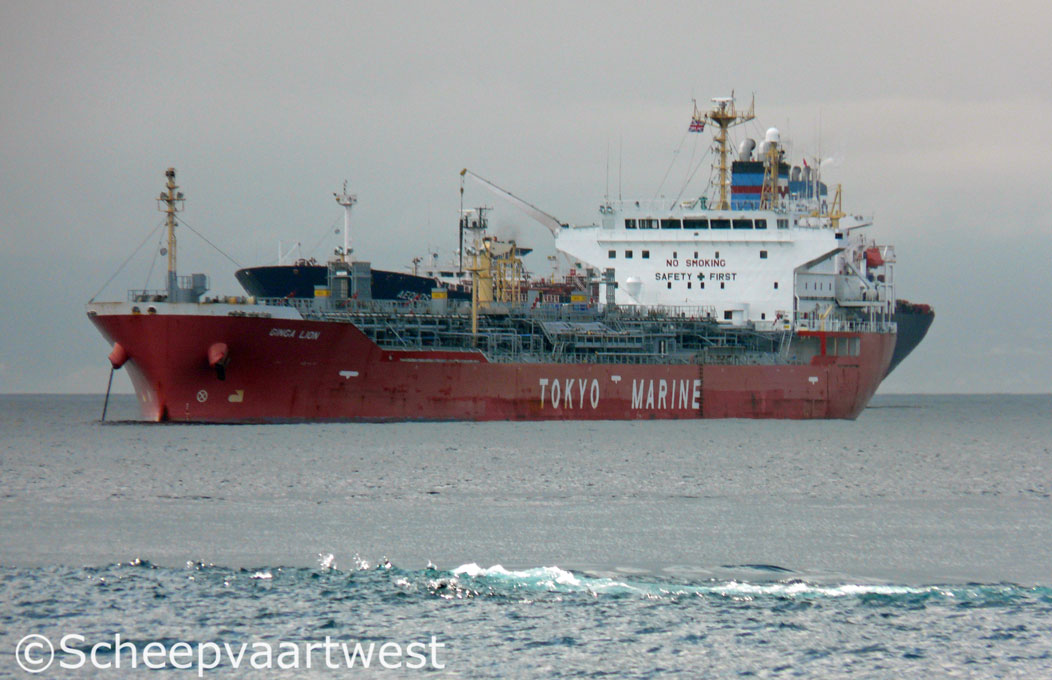

Ginga Lion 01
Gibraltar 21 September 2011



Name

GINGA LION

Type

Oil/ Molasses / Chemical tanker

IMO-number

9278727

Call sign

H3RU

Flag

Republic of Panama

Port of registry

Panama City

GT

16.232 t

DWT

Summer: 25.451 t

NT

7.381 t

Length

159,98 m

Breadth

27,00 m

Draught

Summer: 9,876 m

Moulded L x B x D

154,00 x 26,80 x 14,20 m

Freeboard

Summer: 4.365 mm

Depth

14,20 m moulded

Speed

Service: 15,2 knots

Max.: 16,9 knots

Built

2004

Keel laid

26.06.2002

Launch date

12.01.2004

Date of completion

26.05.2004

Builder

Shin Kurushima Hiroshima Dockyard
Higashihiroshima
Japan

Yard number

5258

Hull type

Double hull

Main engine

1x Mitsubishi 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine - 7.080 kW at 133,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Number of screws

1

Propeller shaft

1x Oil lubrication shaft without monitoring device

Boiler

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 16,30 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Diesel generators

4x Diesel generatorsets - 2.640 kVA

Tank capacities

Fuel oil: 1.248 m³

Fresh water: 531 m³

Water ballast: 10.807 m³

Lifting equipment

1x Crane - SWL 2,0 t

1x Crane - SWL 5,0 t

Manager

NT Marine Co., Ltd.
Tokyo
Japan

Operator

Tokyo Marine

Registered owner

Kyokuho Marine, S.A.
Tokyo
Japan
