| Westerschelde 26 September 2012 |
|
Name |

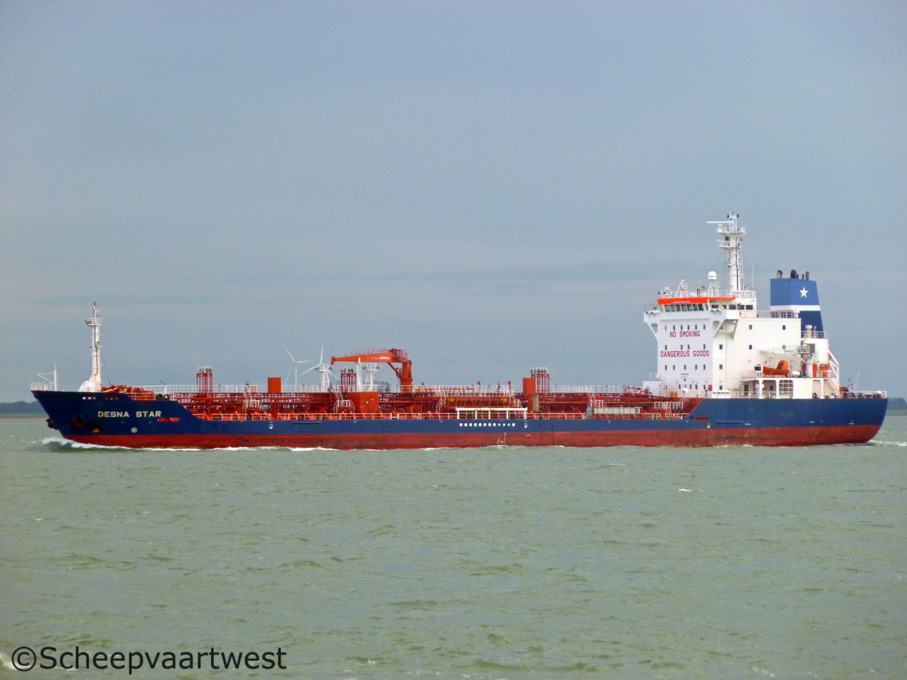

DESNA STAR |
|
Type |
Oil & Chemical tanker |
|
IMO-number |
9419199 |
|
Call sign |
9HA2065 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
8.621 t |
|
DWT |
12.551 t |
|
NT |
4.014 t |
|
Length |
129,00 m overall 120,75 m registered |
|
Breadth |
20,39 m moulded |
|
Draught |
8,69 m |
|
Freeboard |
2.812 mm |
|
Depth |
11,50 m moulded |
|
Speed |
Service: 13,8 knots Max.:15,1 knots |
|
Built |
2010 |
|
Keel laid |
19.12.2008 |
|
Launch date |
12.06.2009 |
|
Date of completion |
22.04.2010 |
|
Builder |
Dae Sun Shipbuilding & Engineering Co., Ltd. |
|
Yard number |
482 |
|
Hull material |
Shipbuilding steel (standard) |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 8S35MC-MK7 - 2 stroke 8 cylinder 250 x 1.400 mm diesel engine - 5.920 kW at 173,0 rpm Year of manufacture: 2009 Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1x Solid propeller - aft at 173,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 78,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 80,0 m² Year of manufacture: 2008 Manufacturer: Aalborg Industries Co. Ltd. |
|
Electric installation |
3x Plants each 450 V - 750 kVA 1x Plant 445 V - 200 kVA 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 3x Plants each 24 V - 200 Ah |
|
Generators |
3x Main diesel generatorsets each 750 kVA |
|
Emergency generator |
1x Diesel generatorset 200 kVA |
|
Batteries |
1x Battery for start emergency engine 200 Ah 1x Battery for UPS radio 200 Ah 3x Batteries for other purpose each 200 Ah |
|
Compressed air receivers |
2x Receivers each 2.000 litres - 33,0 bar 1x Receiver 250 litres - 33,0 bar 1x Receiver 150 litres - 8,3 bar 1x Receiver 2000 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster - 450 kW, forward |
|
Number of tanks |
12 |
|
Cargo tank capacity |
No. 1.P: 875 m³ (pump: 300 m³) No. 1 S: 883 m³ (pump: 300 m³) No. 2 P: 1.087 m³ (pump: 300 m³) No. 2 S: 1.086 m³ (pump: 300 m³) No. 3 P: 1.210 m³ (pump: 300 m³) No. 3 S: 1.203 m³ (pump: 300 m³) No. 4 P: 1.211 m³ (pump: 300 m³) No. 4 S: 1.202 m³ (pump: 300 m³) No. 5 P: 1.211 m³ (pump: 300 m³) No. 5 S: 1.203 m³ (pump: 300 m³) No. 6 P: 1.044 m³ (pump: 300 m³) No. 6 S: 1.044 m³ (pump: 300 m³) Total: 13.259 m³ |
|
Slop tanks |
2 Slop P: 341 m³ (pump: 100 m³) Slop S: 333 m³ (pump: 100 m³) Total: 674 m³ |
|
Cargo tank capacity |
Liquid: 14.185 m³ |
|
Tank capacities |
Heavy fuel oil: 650 m³ Marine diesel oil: 77 m³ Lub oil: 78 m³ Ballast water: 5.273 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Lifting equipment |
1x Hose crane - SWL 10,0 t |
|
Accommodation |
For a crew of 24 persons with heating, ventilation and air-conditioning |
|
Manager |
NSC Tank GmbH & Cie. KG |
|
Owner |
NSC Holding GmbH & Cie. KG |
|
Registered owner |
MT "DESNA STAR" Schifffahrtsgesellschaft mbH & Co. KG |
