Name |

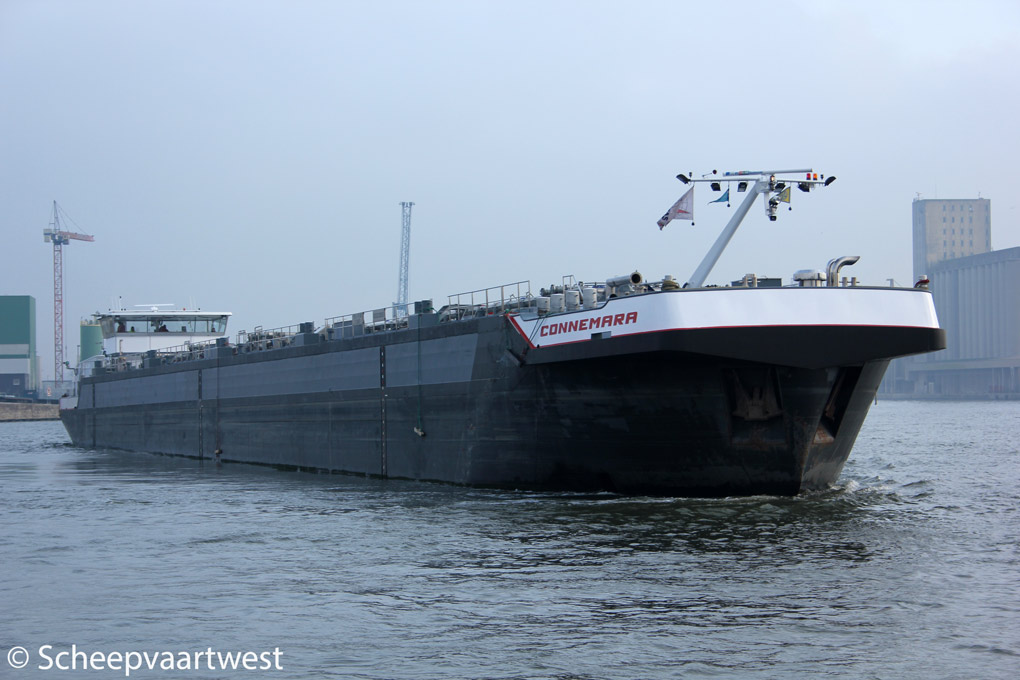

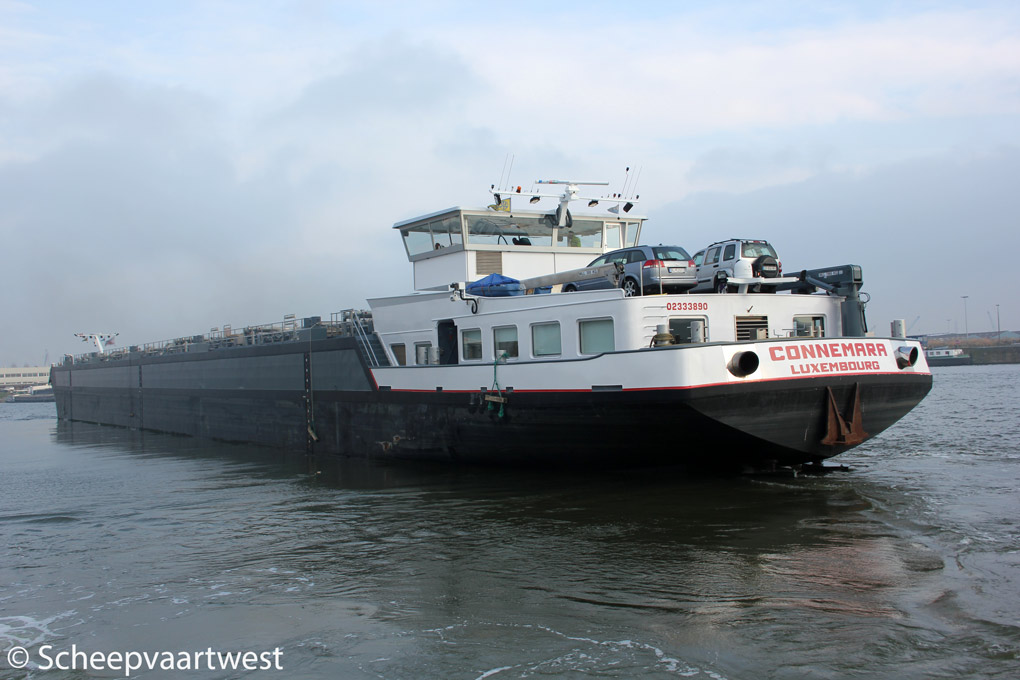

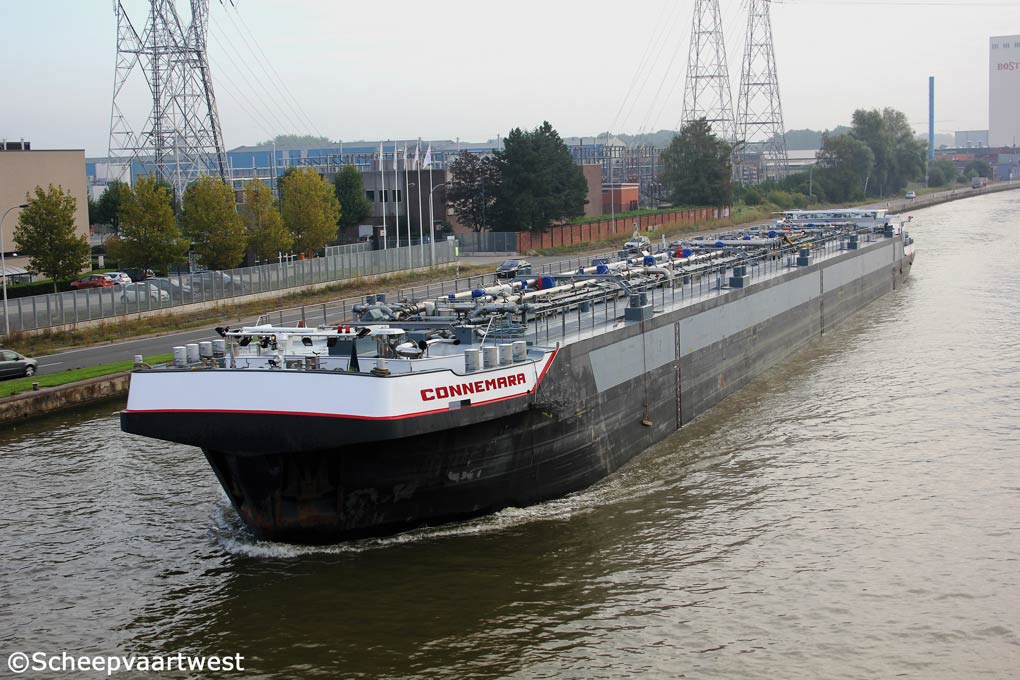

CONNEMARA |
|
Type |
Inland tanker |
|
ENI-number |
02333890 |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxembourg City |
|
GT |
2.142 t |
|
DWT |
3.047 t |
|
Length |
110,00 m overall 106,60 m between perpendiculars |
|
Breadth |
11,35 m |
|
Draught |
3,71 m |
|
Depth |
5,90 m |
|
Built |
2011 |
|
Date of completion |
30.03.2011 |
|
Builder casco |
G.S.K. |
|
Builder completion |
Machinefabriek en Handelsmij. Asto B.V. |
|
Yard number |
JLH 110-013 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x ABC 6 MDZC - 4 stroke 6 cylinder diesel engine - 1.800 hp / 1.324 kW at 1.000 rpm Built: 2010 Builder: Anglo Belgian Corporation N.V. Wiedauwkaai 43 |
|
Gearbox |
1x Reintjes reduction - type WGF 763 / 3,007:1 |
|
Propellers |
1x Screw propeller solid 5-blades screw counter clockwise - 1.700 mm |
|
Generators |
1x Sisu Diesel type 49DTG-B/UCM274C diesel generatorset 81 kVA / 65 kW 1x Sisu Diesel type 49CTAG-B/UCM274E diesel generatorset 120 kVA 1x Scania type DI1652M/HCM534E diesel generatorset 590 kVA driving a bow thruster |
|
Bow thruster |
1x Scania Veth-Jet type 4-K-1300 - 632 hp |
|
Tank capacity |
4.008 m³ |
|
Pumps |
11 MarFlex electric Deepwell pump type MDPD-80 - each 100 m³/h |
|
Fuel oil |
60 m³ |
|
Lifting equipment |
1x Car crane - SWL 1.995 kg 1x Crane - SWL 300 kg |
|
Manager |
Unitas United Shipping and Trucking Company N.V. |
|
Owner |
Citerna SA |
|
Last update |
21.02.2013 |
