| Westerschelde 23 November 2012 |
|
Name |

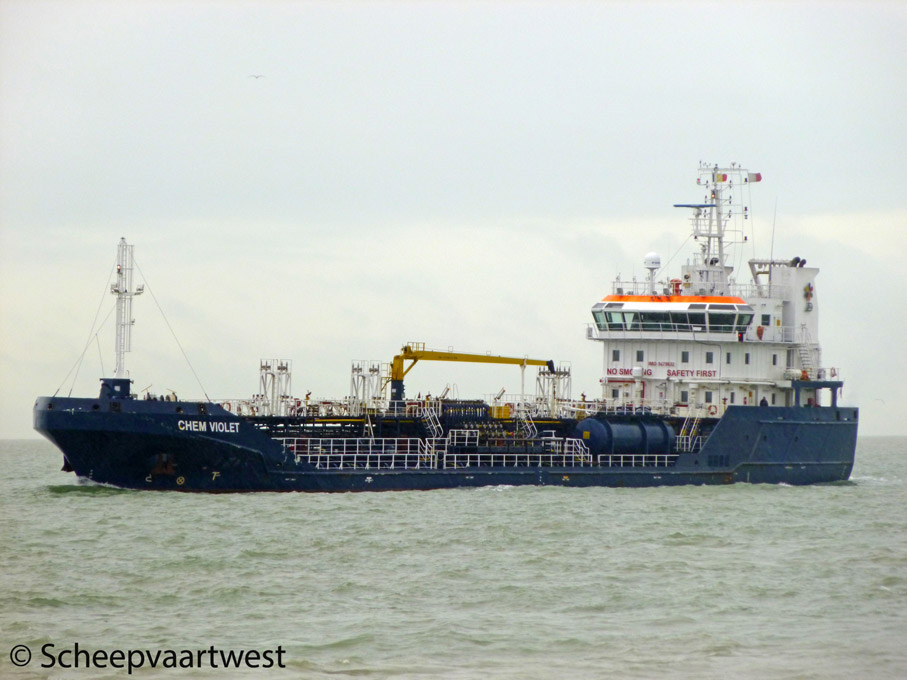

CHEM VIOLET |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9479632 |
|
Call sign |
9HA2081 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
2.105 t |
|
DWT |
3.074,29 t |
|
NT |
1.747 t |
|
Length |
84,97 m overall 78,55 m between perpendiculars |
|
Breadth |
12,60 m |
|
Draught |
Summer: 5,39 m Ballast: 3,30 m |
|
Air draft |
Ballast: 23,70 m Loaded: 21,60 m |
|
Height van keel to mast |
27,00 m |
|
Freeboard |
5.394 mm |
|
Depth |
6,40 m moulded |
|
Speed |
13,0 knots |
|
Built |
2010 |
|
Date of completion |
12.04.2010 |
|
Builder |
Cicek Shipyard Marine Industry |
|
Yard number |
47 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
2x Mitsubishi S12R-MPTK - 12 cylinder diesel engine - 1.880 kW / 2.554 hp at 1.600 rpm Builder: Mitsubishi Heavy Industry Co., Ltd., Kobe - Japan |
|
Propellers |
2x Azimuth thruster solid |
|
Boilers |
1x CHO 27,50 m² - 7,0 bar |
|
Generators |
3x MAN diesel generatorset each 525 kVA - 420 kW - 611 hp at 1.500 rpm |
|
Bow thruster |
268 hp / 199,84 kW |
|
Number of tanks |
12 |
|
Tank capacity 98% |
3.281 m³ |
|
Slop tank capacity 98% |
68,71 m³ |
|
Pumps |
12x Electric deepwell pumps each 150 m³/h |
|
Segregations |
6x Double valve |
|
Manifolds |
Distance from bow to centre manifold: 40,42 m Distance from stern to centre manifold: 41,20 m Distance from stern to centre manifold: 600 mm Distance from ship side to manifold: 2.600 mm |
|
Tank capacities |
Fuel oil: 129,8 m³ Ballast: 1.282 m³ |
|
Lifting equipment |
1x Crane - SWL 1,3 t |
|
Manager |
Deniz Endustrisi AS |
|
Operator |
Eco Tanker Isletmecilik ve Ticaret A.S. |
|
Owner |
Cicek Shipyard Marine Industry |
|
Registered owner |
White Rose Shipping Ltd. |
|
Last update |
27.02.2013 |
