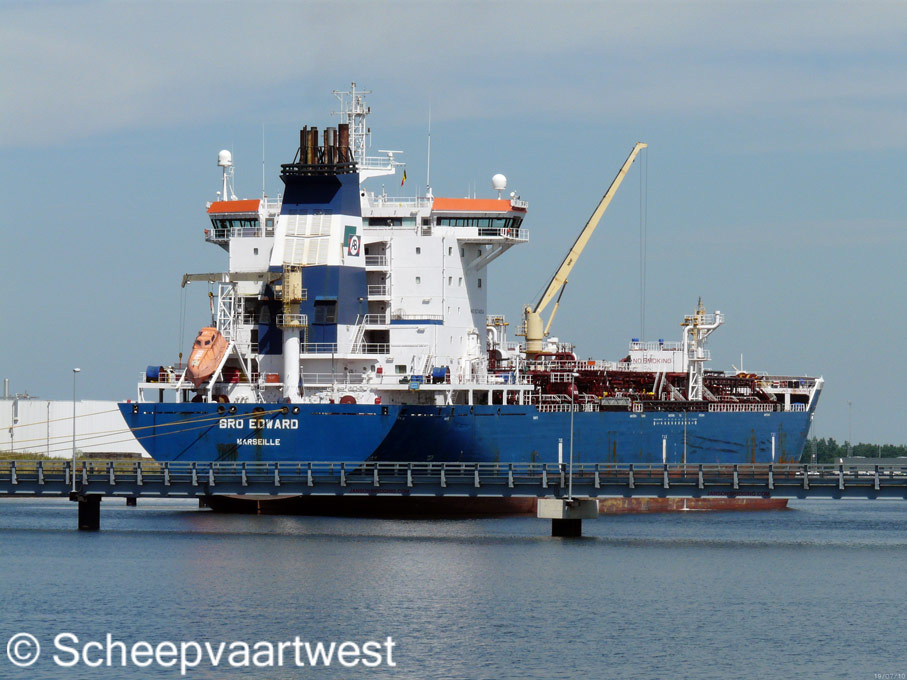

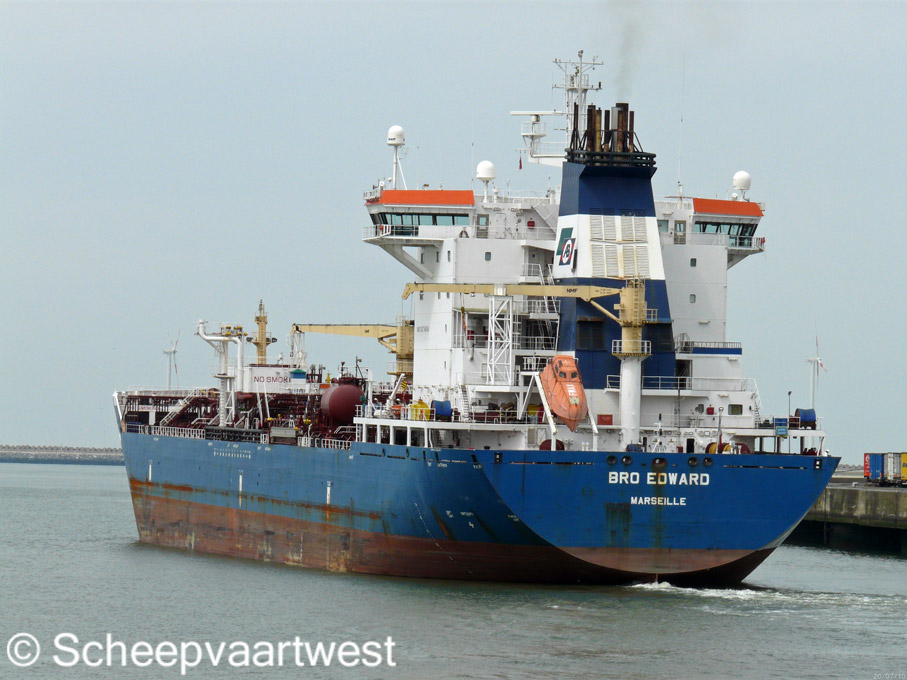

| Zeebrugge 20 July 2010 |
 |
| Zeebrugge 19/07/10 |
|
Name |
BRO EDWARD |
|
Type |
Chemical tanker / Tanker for oil |
|
IMO-number |
9274654 |
|
Call sign |
FWAX |
|
Flag |
01.05.2007 France |
|
Port of registry |
Marseille |
|
GT |
26.659 t |
|
DWT |
37.300 t |
|
NT |
10.207 t |
|
Length |
186,30 m overall 174,60 m between perpendiculars |
|
Breadth |
31,00 m |
|
Draught |
Summer: 10,50 m |
|
Freeboard |
5.815 mm |
|
Depth |
16,40 m |
|
Speed |
15,2 knots |
|
Built |
2005 |
|
Date of completion |
27.07.2005 |
|
Builder |
Jinling Shipyard |
|
Yard number |
JLZ020504 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
14 |
|
Continuous decks |
6 |
|
Main engine |
1x MAN B&W 6S 50 MC - 2 stroke 6 cylinder 500 x 1.910 mm internal combustion engine - 8.580 kW / 11.658 hp at 127,0 rpm Built: 2003 Builder: Hudong Heavy Machinery Co. Ltd., Shanghai - China |
|
Propelling system |
1x Screw propeller solid - at 127 rpm |
|
Boilers |
1x CHM AALBORG 432,00 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Diesel generatorsets each 1.238 kVA - 990 kW - 1.436 hp |
|
Emergency generators |
1x Diesel generatorset 288 kVA - 230 kW - 425 hp |
|
Number of holds |
16 |
|
Total capacity of holds |
45.143,70 m³ |
|
Pumps |
16x Capacity 500 m³/h each |
|
Fuel capacity |
1.378,4 m³ |
|
Crew |
20 |
|
Operator |
Brostrom Tankers France SAS |
|
Owner |
Copropriete Du Navire Bro Etienne |
|
Registered owner |
Maersk Tankers France SAS |
|
Renamed |
08.2010 Maersk Edward - Denmark - Call sign: OWVT2 |
