| Westerschelde 02 September 2017 |
|
Name |

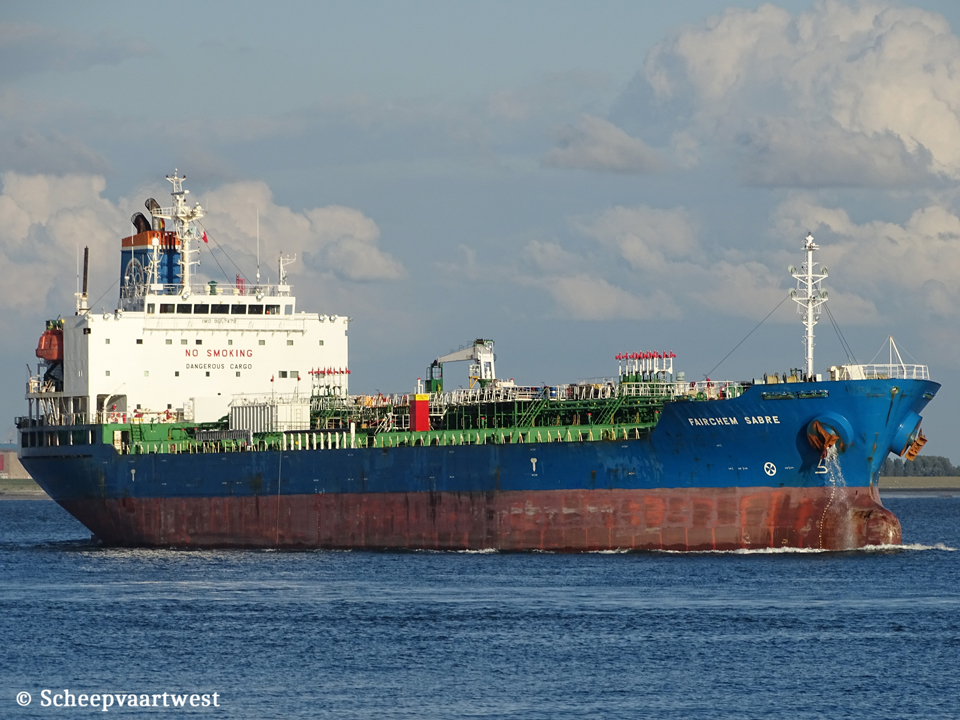

FAIRCHEM SABRE |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9657478 |
|
Call sign |
V7FX9 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
Previous flags |
2013 - 2017 Republic of Panama, Panama City - Call sign: 3FBY8 |
|
GRT |
11.752 t |
|
DWT |
19.994 t |
|
NRT |
6.272 t |
|
Light ship |
5.544 t |
|
Length |
146,60 overall |
|
Breadth |
23,70 m moulded |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
138,00 x 23,70 x 13,00 m |
|
Registered L x B x D |
138,50 x 23,70 x 13,00 m |
|
Keel to mast end |
37,50 m |
|
Freeboard |
Summer: 3.314 mm |
|
Depth |
13,00 m moulded |
|
Speed |
Max. 15,1 knots Service: 14,5 knots |
|
Built |
2013 |
|
Keel laid |
29/06/2012 |
|
Launch date |
05/12/2012 |
|
Date of completion |
12/04/2013 |
|
Builder |
Fukuoka Shipbuilding Co. Ltd., Nagasaki Yard Nagasaki Japan |
|
Yard number |
N-2056 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S42MC7 - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 5.000 kW / 6.798 hp at 120,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 420 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary Vertical boiler - 0,93 MPa Evaporation: 16,00 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 515 kW |
|
Bow thruster |
1x 631 kW |
|
Number of pumps |
20 + 2 slop tanks |
|
Cargo tank capacity 98% |
Tank 1 P: 641 m³ Tank 1 S: 655 m³ Tank 2 P: 1.140 m³ Tank 2 S: 1.153 m³ Tank 3 P: 1.514 m³ Tank 3 S: 1.514 m³ Tank 4 P: 1.377 m³ Tank 4 S: 1.390 m³ Tank 5 P: 726 m³ Tank 5 S: 739 m³ Tank 6 P: 1.377 m³ Tank 6 S: 1.390 m³ Tank 7 P: 1.377 m³ Tank 7 S: 1.390 m³ Tank 8 P: 1.362 m³ Tank 8 S: 1.375 m³ Tank 9 P: 672 m³ Tank 9 S: 685 m³ Tank 10 P: 565 m³ Tank 10 S: 578 m³ Liquid: 21.625 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h 8x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel oil: 936 m³ Fresh water: 207 m³ |
|
Manager |
Anglo-Eastern Shipmanagement (Singapore) Pte. Ltd. 16-02, Southpoint, 200, Cantonment Road Singapore 089763 republic of Singapore |
|
Registered owner |
Fairfield Chemical Carriers Pte. Ltd. 2nd Floor, 21, River Road Wilton CT 06897-4151 USA |
|
Latest data adjustment |
25 May 2024 |
