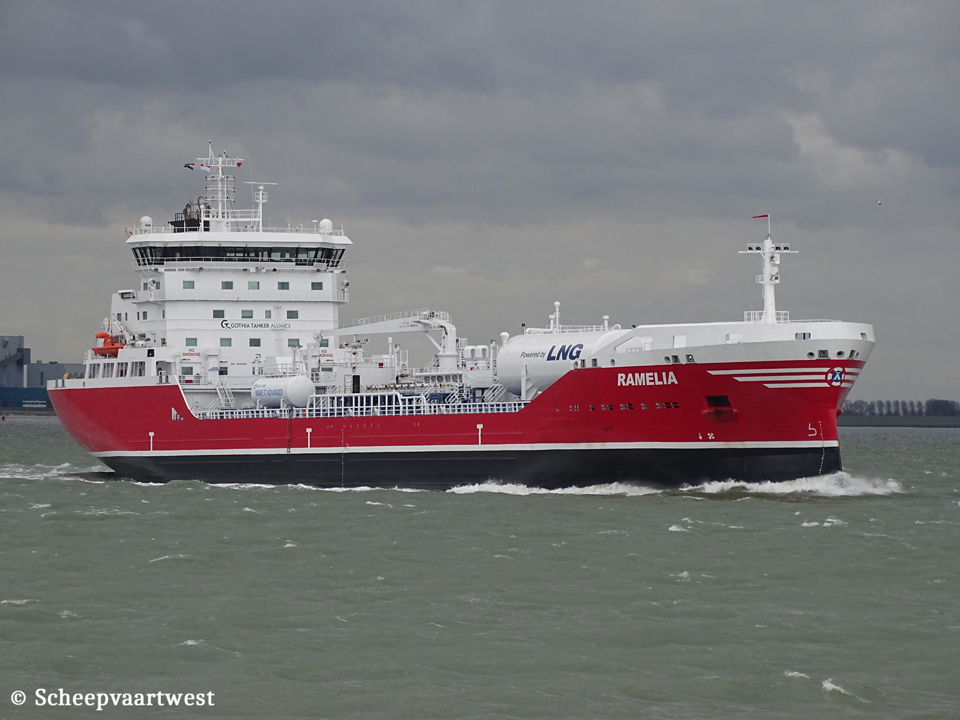

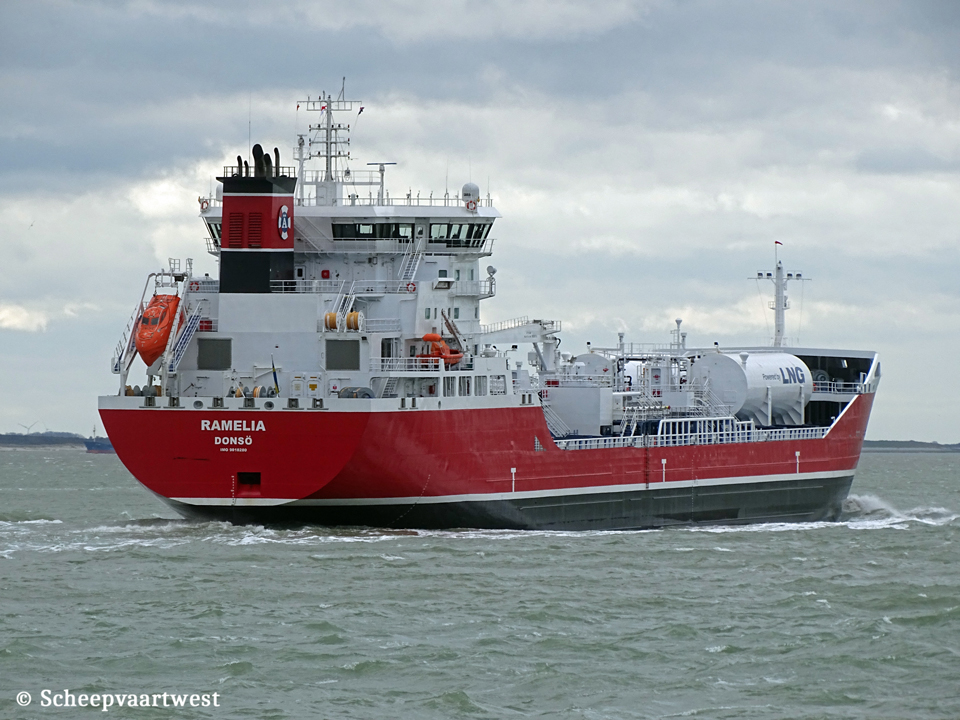

| Westerschelde 20 February 2020 |
 |
|
| Westerschelde 20/02/20 | |
|
Name |
RAMELIA |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9818280 |
|
Call sign |
SGWI |
|
Flag |
Sweden |
|
Port of registry |
Donsö |
|
GT |
12.770 t |
|
DWT |
17.994 t |
|
NT |
5.838 t |
|
Length |
149,90 m overall 146,64 m between perpendiculars |
|
Breadth |
22,80 m |
|
Draught |
Summer: 9,36 m |
|
Keel to mast end |
40,30 m |
|
Freeboard |
2.752 mm |
|
Depth |
12,10 m |
|
Speed |
Max: 14,5 nots Service: 13,0 knots |
|
Built |
2019 |
|
Date of completion |
16/09/2019 |
|
Builder |
China Merchants Jinling Shipyard (Yangzhou) Dingheng Co.,Ltd. (Avic Dingheng Shipbuilding Co. Ltd.) China |
|
Yard number |
AD0036 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L34DF - 4 stroke 9 cylinder 340 x 400 mm combustion engine 4.500 kW / 6.114 hp at 750 rpm Build: 18/12/2018 Builder: Wärtsilä Finland Oy, Vaasa - Finland |
|
Propellers |
1x Controllable pitch propeller - aft at 108 rpm |
|
Boilers |
1x CHO 12499CHN18 64,00 m² / 8,0 bar 1x CHM 12500CHN18 235,00 m² / 8,0 bar Manufacturer: Aalborg, Alfa Laval |
|
Shaft generator |
1x 2.250 kVA |
|
Generators |
1x Wärtsilä 4L20 main diesel generatorset 856 kVA - 685 kW - 980 hp 1x Wärtsilä 9L20 main diesel generatorset 2.000 kVA - 1.600 kW - 2.262 hp |
|
Emergency generator |
1x Diesel generatorset 250 kVA - 200 kW - 345 hp |
|
Bow thruster |
1x Brunvoll 850 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity |
Tank 1 S / P: 664 / 672 m³ Tank 2 S / P: 1.909 / 1.904 m³ Tank 3 S / P: 1.755 / 1.759 m³ Tank 4 S / P: 2.101 / 2.091 m³ Tank 5 S / P: 2.090 / 2.094 m³ Tank 6 S / P: 1.589 / 1.588 m³ 100 %: 20.216 m³ 98%: 19.812 m³ |
|
Deck drain tank P/S |
63 / 63 m³ |
|
Number of pumps |
12x Svanehöj cargo pumps each 300 m³/h 2x Svanehöj ballast pumps each 500 m³/h |
|
Tank capacities |
HFO: 522 m³ Ballast: 7.494 m³ LNG: 919 m³ Gas oil: 153 m³ Fresh water: 40 m³ Fresh water technical: 297 m³ |
|
Commercial operator |
Furetank Chartering Hinsholmens bryggväg 50 SE–426 79 Västra Frölunda Sweden |
|
Manager |
Rederi AB Älvtank Donsö Hamnväg 27 SE-430 82 Donsö Sweden |
|
Registered owner |
Rederi AB Älvtank Donsö Hamnväg 27 SE-430 82 Donsö Sweden |
|
Latest data adjustment |
02 May 2024 |
