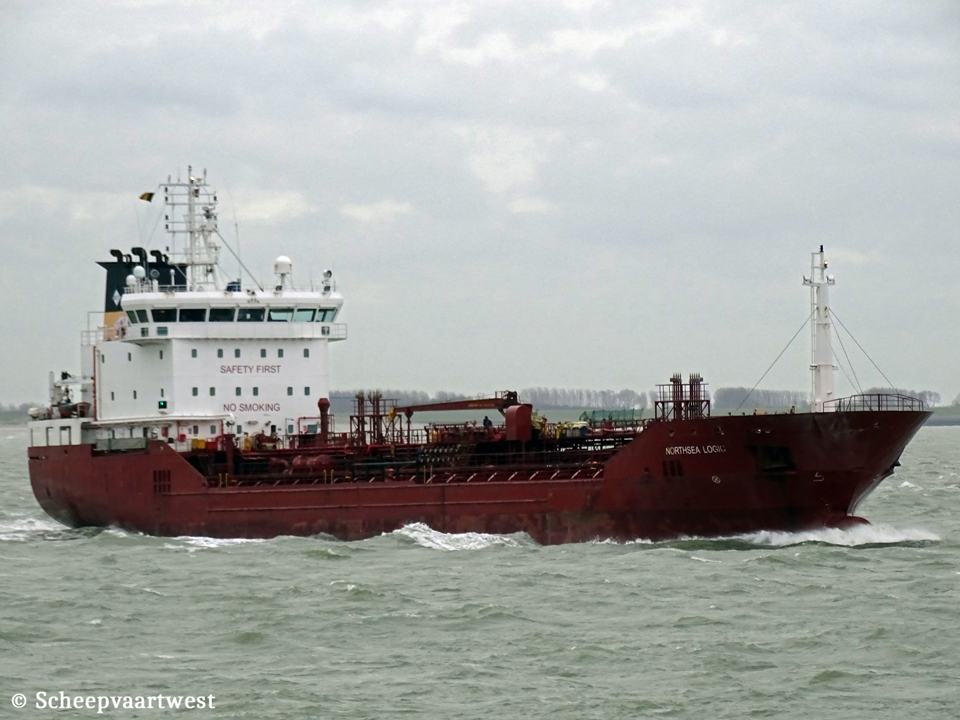

| Westerschelde 21 December 2015 |
 |
 |
||

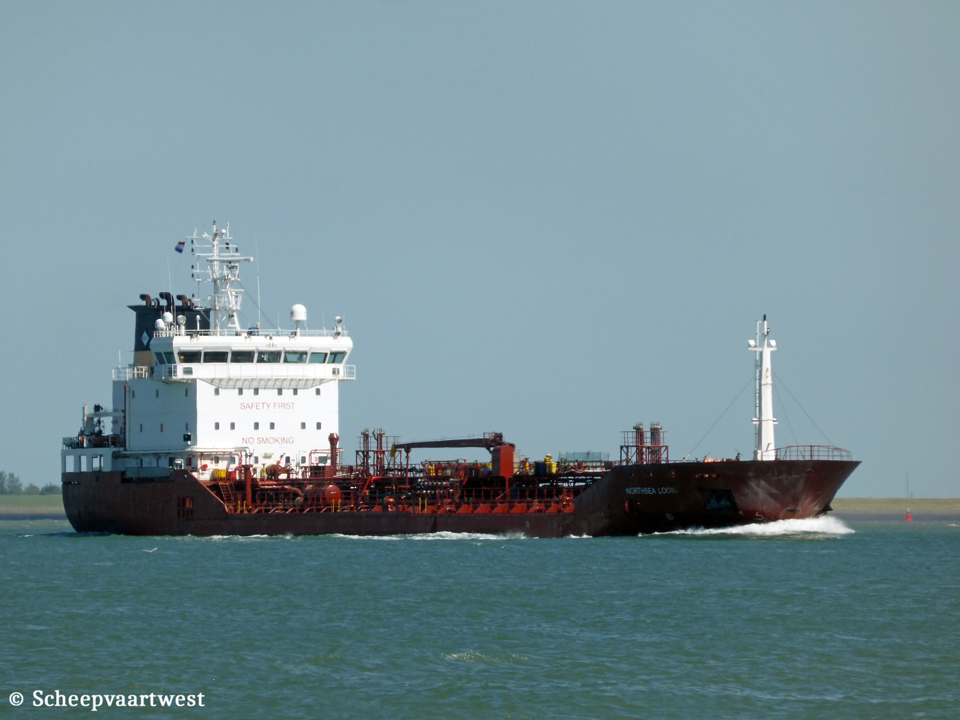

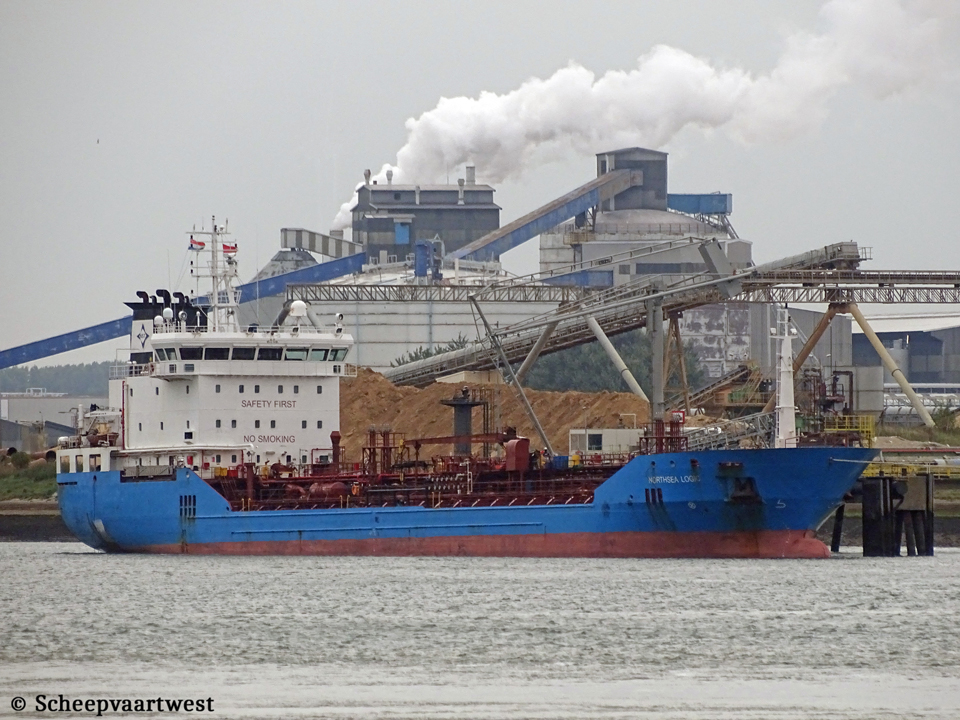

| Westerschelde 06/06/15 | Vlissingen 03/09/18 | ||
|
Name |
NORTHSEA LOGIC |
|
Previous names |
Build as: Urartian |
|
Type |
Tanker for chemicals & oil |
|
IMO-number |
9334301 |
|
Call sign |
9HWC8 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2007 - 2007 Turkey 2007 - 2009 Bahamas 2009 - 2009 Malta |
|
GT |
3.981 t |
|
DWT |
5.675 t |
|
NT |
1.824 t |
|
Length |
109,10 m overall 99,80 m between perpendiculars |
|
Breadth |
16,03 m overall |
|
Draught |
6,37 m |
|
Keel to mast end |
34,00 m |
|
Freeboard |
1.644 mm |
|
Depth |
7,25 m moulded |
|
Speed |
14,0 knots |
|
Built |
2007 |
|
Keel laid |
17/04/2006 |
|
Launch date |
22/09/2006 |
|
Date of completion |
02/03/2007 |
|
Builder |
ShipyardCeliktekne Sanayii ve Ticaret A.S shipyard Tuzla Turkey |
|
Yard number |
58 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L27/38 - 4 stroke 8 cylinder 270 x 380 mm combustion engine 2.720 kW / 3.698 hp at 800 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x Auxiliary boiler, vertical shell type GMT-V300 - 12,0 bar Heating Surface: 25,0 m² 1x Auxiliary boiler, exhaust gas water tube NG-EG 882 - 12,0 bar Heating Surface: 35,0 m² Builder: Garionaval |
|
Shaft generator |
1x 1.800 kW |
|
Generators |
3x Caterpillar C18 main diesel generatorsets each 548 kVA - 438 kW - 595 hp |
|
Emergency generator |
1x Caterpillar 3506T diesel generatorset 105 kVA - 84 kW - 114 hp |
|
Bow thruster |
1x Rolls Royce 45TC - 330 kW, forward |
|
Number of tanks |
12 + 1 slop tank |
|
Cargo tank capacity |
Liquid: 6.259 m³ |
|
Number of pumps |
8x Cargo pumps each 200 m³/h 4x Cargo pumps each 150 m³/h |
|
Loading rate |
700 m³/h |
|
Discharging rate |
700 m³/h |
|
Heating capacity |
75°C |
|
Tank capacities |
Fuel: 327,84 m³ |
|
Anchor equipment |
|
|
Lifting equipment |
Lifting equipment |
|
Crew size |
15 |
|
Manager |
Miklagard S Gemi İşletmeciliği ve Tic. A.Ş., Istanbul Turkey |
|
Registered owner |
North Sea Chemical AS Care of North Sea Tankers BV Westblaak 152 3012 KM Rotterdam The Netherlands |
|
Renamed |
2022 Lara S Malta, Valletta - Call sign : 9HWC8 Owner: BC Tanker Ltd., Majuro - Marshall islands Operator: Coship Danismanlik Hizmetleri ve Turizm Limited Sirketi |
|
Latest data adjustment |
25 August 2023 |
