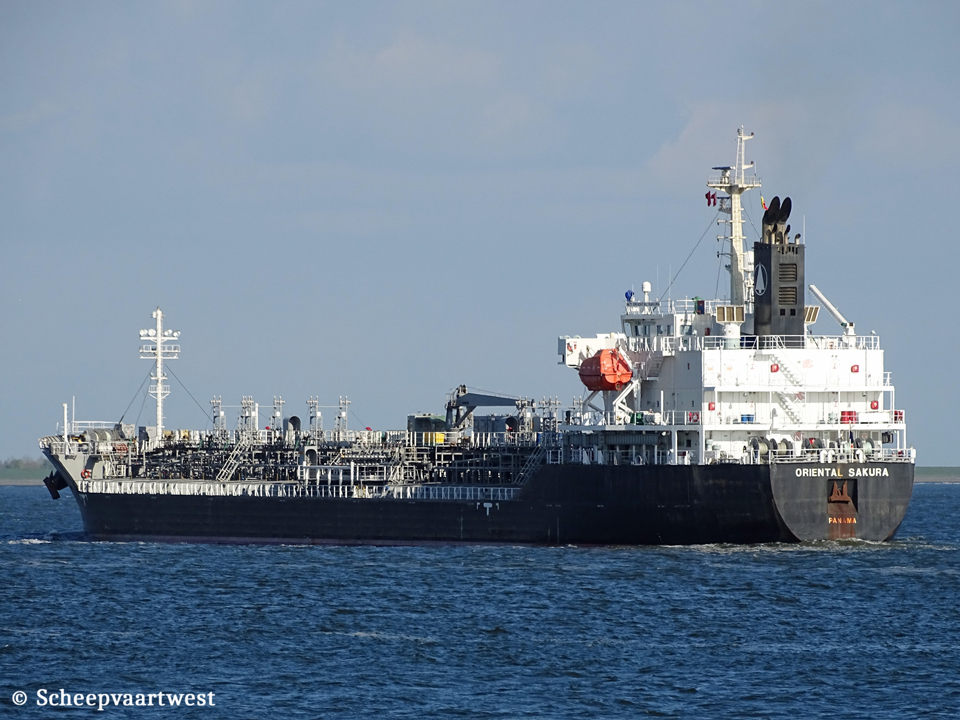

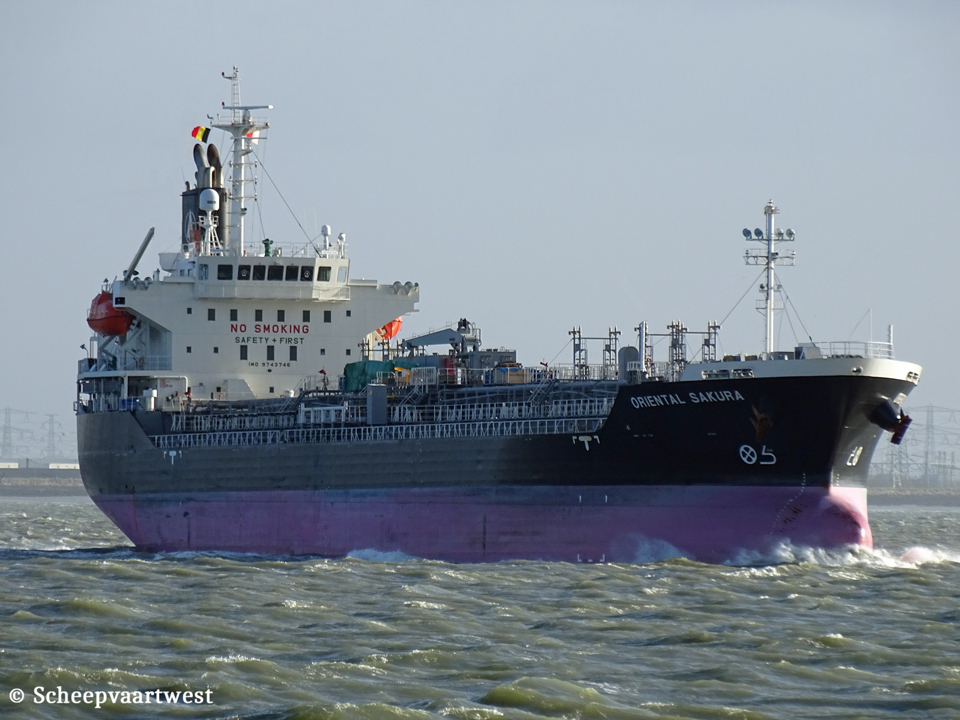

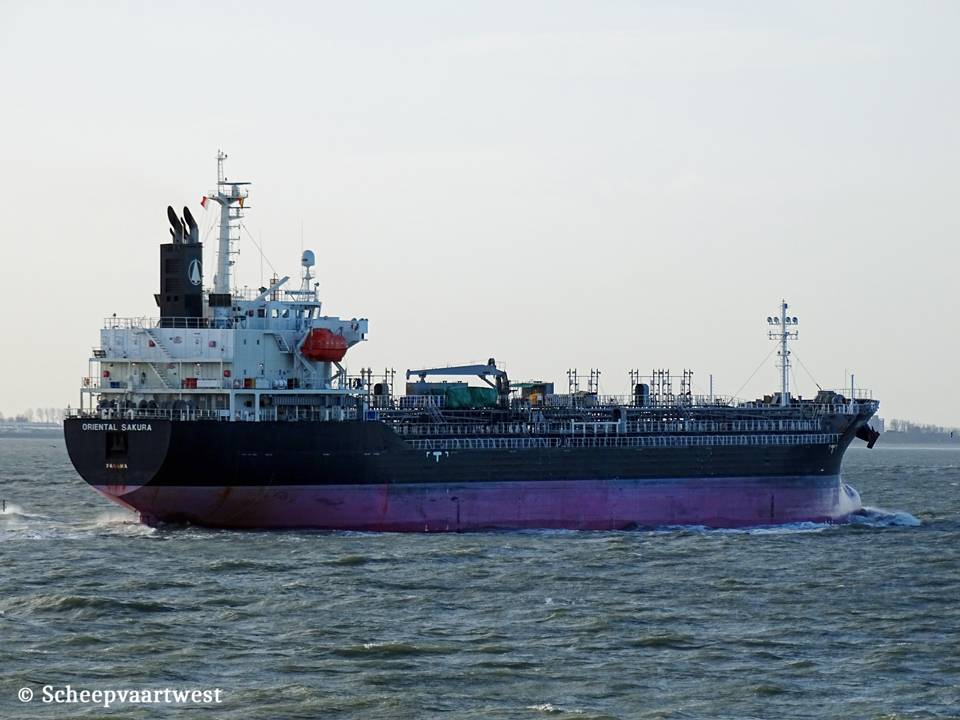

Oriental Sakura - IMO 9743746

Name

ORIENTAL SAKURA

Type

Oil and chemical tanker

IMO-number

9743746

Call sign

3EHC8

Flag

Republic of Panama

Port of registry

Panama City

GRT

9.141 t

DWT

16.090 t

NRT

5.040 t

Length

134,03 m overall

Breadth

21,60 m moulded

Draught

Summer: 9,11 m

Moulded L x B x D

125,00 x 21,60 x 12,00 m

Registered L x B x D

125,18 x 21,60 x 12,00 m

Keel to mast end

38,92 m

Freeboard

Summer: 2.914 mm

Depth

12,00 m moulded

Speed

Max: 14,8 knots

Service: 12,5 knots

Built

2015

Keel laid

21/05/2014

Launch date

26/11/2014

Date of completion

18/02/2015

Builder

Asakawa Zosen K.K. - Imabari Yard

Japan

Yard number

593

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Hitachi/MAN-B&W 6S35ME-B9 - 2 stroke single acting 6 cylinder 350 x 1.550 mm combustion engine Mcr 4.440 kW / 6.037 hp at 167 rpm

Builder: Hitachi Zosen Corporation Innoshima Works - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 350 mm

Propellers

1x Fixed pitch propeller- aft at 167 rpm

Boilers

1x Auxiliary Vertical boiler- 0,98 MPa

Evaporation: 15;85 t/h

Manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

3x Main diesel generatorsets each 550 kW

Bow thruster

1x Tunnel thruster 385 kW / 523 bhp, forward

Number of tanks

20

Cargo tank capacity 98%

Liquid: 17.206 m³

Number of pumps

8x Cargo pumps each 300 m³/h

12x Cargo pumps each 200 m³/h

Tank capacities

Ballast: 4.715,0 m³

Fuel oil: 842,0 m³

Fresh water: 286,0 m³

Crew size

24

Commercial manager

Serromah Shipping B.V.

Hoofdweg 236 (3rd floor)

3067 GJ Rotterdam

The Netherlands

ISM manager

New Shipping Kaisha Ltd.

6-3, Ichigayata-machi, Shinjuku-ku

Tokyo, 162-0066

Japan

Registered owner

Howa Shipping SA

Care of NYK Bulk & Projects Carriers Ltd , 7th Floor, Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku

Tokyo, 100-0005

Japan

Latest data adjustment

17 January 2024
