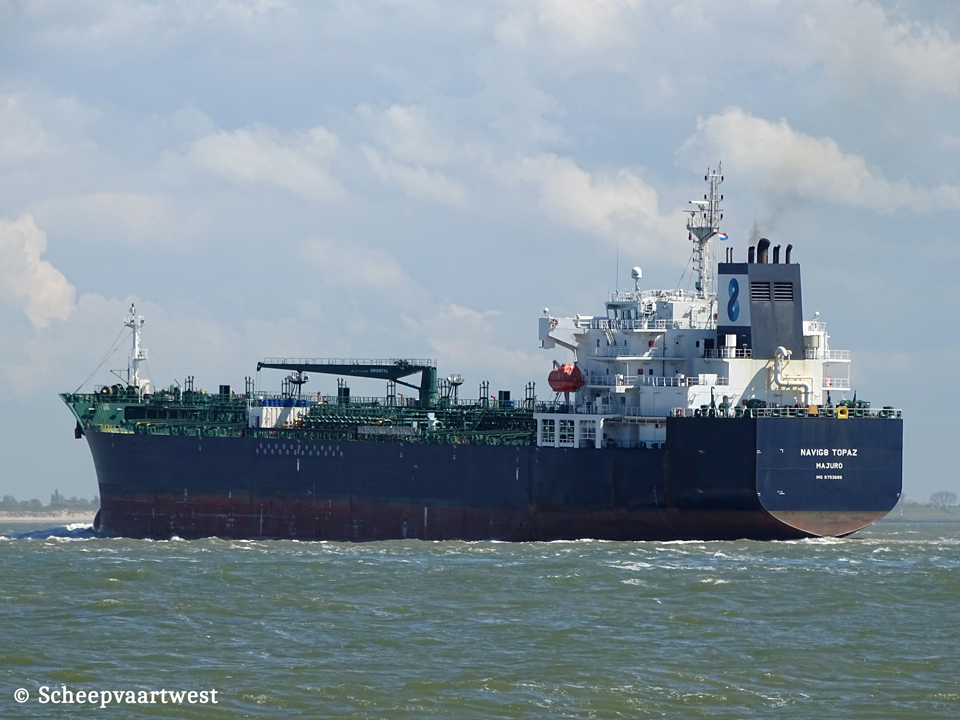

| Westerschelde 24 April 2018 |
|
Name |
NAVIG8 TOPAZ |
|
Type |
Oil & Chemical carrier |
|
IMO-number |
9753686 |
|
Call sign |
V7RA2 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
29.492 t Suez: 31.066,84 t |
|
DWT |
49.560,8 t |
|
NT |
13.589 t Panama: 24.484 t Suez: 27.137,19 t |
|
Displacement |
60.539,4 t |
|
Length |
182,90 m overall 173,90 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,30 m |
|
Keel to mast end |
49,91 m |
|
Freeboard |
5.812 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Max: 15,0 knots Service: 14,5 knots |
|
Built |
2016 |
|
Keel laid |
01/12/2015 |
|
Launch date |
26/06/2016 |
|
Delivery date |
22/07/2022 |
|
Builder |
Stx Offshore Shipbuilding Co., Ltd. 60, Myeongje-Ro, Jinhae-Gu Chang-Won-Si, Gyeongsangnanm-Do South Korea |
|
Yard number |
S1722 |
|
Hull material |
Steel |
|
Hull type |
Double Hull |
|
Main engine |
1x STX/MAN-B&W 6G50ME-B9.3 - 2 stroke single acting 6 cylinder 500x 2.500 mm combustion engine 7.153 kW / 9.728 bhp at 86,0 rpm Manufacturer: STX Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller - aft at 86,0 rpm Manufacturer: Sil La Metal Co. |
|
Boilers |
1x Auxiliary boiler - 7,0 MPa 1x Composite boiler - 7,0MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Hyundai/Himsen 6H21/32 - 4 stroke 6 cylinder 210 x 320 mm main diesel engines each Mcr 1.00 kW connected with generators each 990 kW Manufacturer: HHI Electro Electric System |
|
Number of cargo tanks |
16 |
|
Cargo tank capacity |
46.914,9 m³ |
|
Tank capacities |
Ballast: 21.027,1 m³ Lub oil: 147,5 m³ Fuel oil: 1.844,1 m³ Fresh water: 687,6 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 3,2 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 3,2 t Manufacturer: Oriental Precision Machinery Co., Ltd. |
|
Crew |
25 |
|
Manager |
TB Marine Shipmanagement GmbH Paul-Dessau-Straße 6 22761 Hamburg Germany |
|
Registered owner |
Navig8 Chemical Tankers 28 Inc. |
|
Renamed |
2022 Hafnia Topaz Marshall Islands, Majuro - Call sign: V7RA2 Operator: OSM Ship Management AS - Norway Owner: Fortune Chem4 Shipping Limited - Hong Kong |
|
Latest data adjustment |
08 April 2023 |
