| Westerschelde 09 August 2016 |
|
Name |

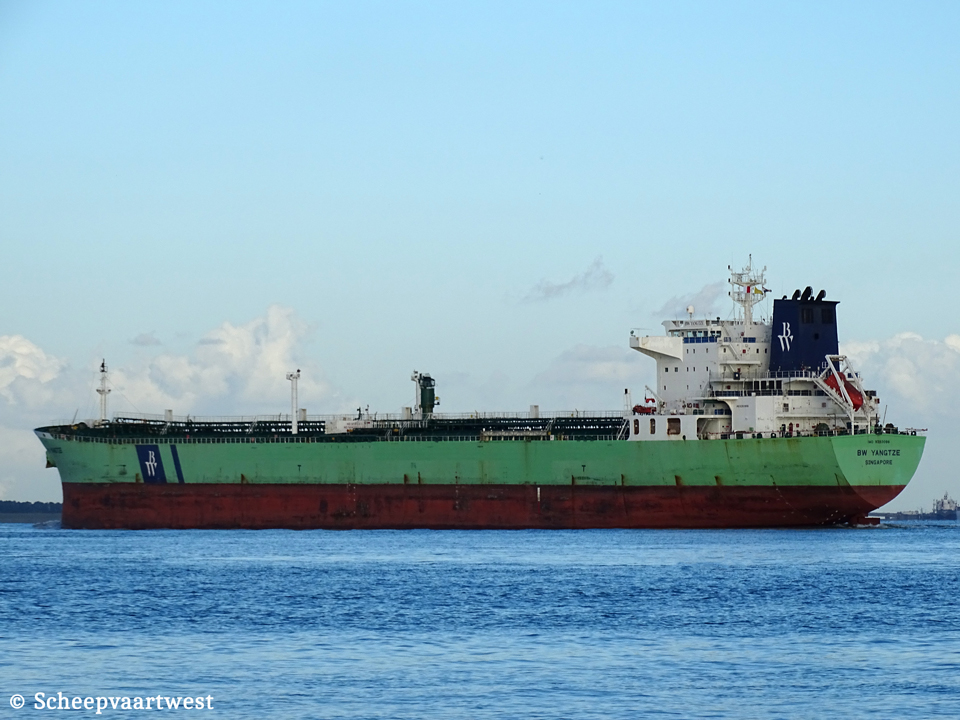

BW YANGTZE |
|
Type |
Oil products tanker |
|
IMO-number |
9393096 |
|
Call sign |
9VNH7 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
43.797 t Suez: 45.550,44 t |
|
DWT |
76.578,5 t |
|
NT |
21.967 t Panama: 37.425 t Suez: 40.379,73 t |
|
Displacement |
91.368,5 t |
|
Light ship |
14.790 t |
|
Length |
228,60 m overall 220,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
14,70 m |
|
Keel to mast end |
51,60 m |
|
Freeboard |
6.514 mm |
|
Depth |
21,20 m moulded |
|
Speed |
Max: 15,4 knots Service: 12,5 knots |
|
Built |
2009 |
|
Keel laid |
08/08/2008 |
|
Launch date |
20/10/2008 |
|
Delivery date |
05/01/2009 |
|
Builder |
Dalian Shipbuilding Industry Co., Ltd. Dalian Shipyard Group Co.,Ltd. No.1 Haifang Street,Dalian 116021 China |
|
Yard number |
PC760-10 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHI/MAN-B&W 6S70MC - 2 stroke single acting 6 cylinder 600 x 2.292 mm combustion engine Mcr 12.240 kW / 16.642 hp at 105,0 rpm Manufacturer: Dalian Marine Diesel Works |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Dalian Marine Propeller Co., Ltd. |
|
Boilers |
2x Auxiliary boiler OL20T/H - 18 MPa Manufacturer: Aalborg Industries Ltd. |
|
Generators |
3x Yanmar 6N21AL-UV main diesel generatorsets each 925 kW Manufacturer: Taiyo Electric Co.,Ltd. Gifu Factory |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
98%: 80.591,3 m³ 100%: 82.235,8 m³ |
|
Slop tank capacity |
3.095,9 m³ |
|
Number of pumps |
3x Centrifugal cargo pumps each 2.000 m³/h 2x Centrifugal ballast pumps each 1.000 m³/h |
|
Tank capacities 100% |
Ballast: 28.831,0 m³ Lub oil: 161,0 m³ Diesel oil: 195,0 m³ Fresh water: 361,2 m³ Fuel oil: 2.585,0 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 15,0 t Manufacturer: Jiangyin Xingcheng Marine Machinery Factor 1x Provision crane - SWL 4,0 t Manufacturer: Concrane SRL 1x Engine room crane - 3,2 t Manufacturer: Danish Crane industrial Co. Ltd. |
|
Commercial manager |
Hafnia Pte Ltd. 17-02, Mapletree Business City, 10, Pasir Panjang Road Singapore 117438 Republic of Singapore |
|
ISM manager |
BW Fleet Management Pte Ltd. 17-02, Mapletree Business City, 10, Pasir Panjang Road Singapore 117438 Republic of Singapore |
|
Registered owner |
BW Aldrich Pte Ltd. Care of BW Group Ltd. Suite 412, Washington Mall - Phase II, 22, Church Street Hamilton, HM 11 Bermuda |
|
Renamed |
2022 Hafnia Yangtze Republic of Singapore, Singapore City - Call sign: 9VNH7 Owner: BW Aldrich Pte. Ltd. Manager: BW Fleet Management Pte. Ltd. |
|
Latest data adjustment |
02 March 2023 |
