| Westerschelde 16 May 2017 |
 |
 |
|
| Westerschelde 16/05/17 | Westerschelde 16/05/17 | |
|
Name |

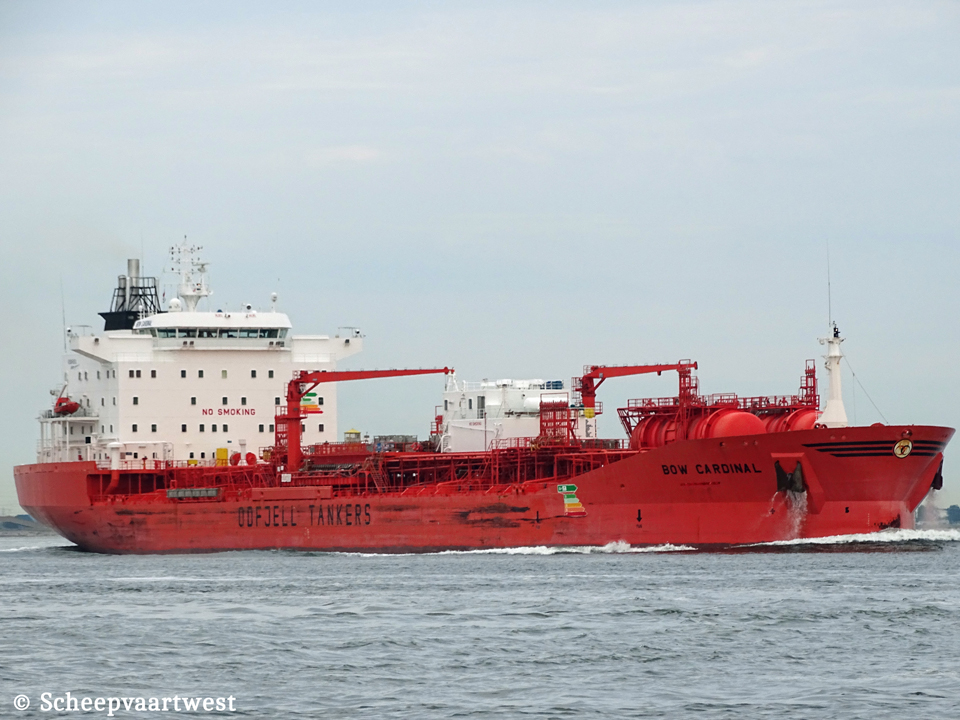

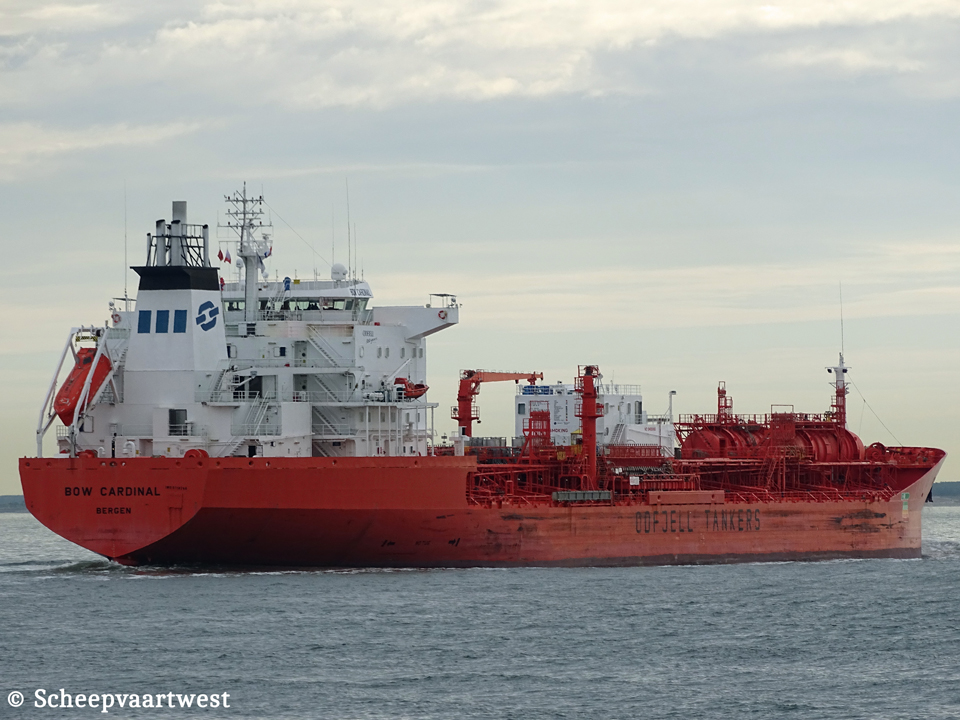

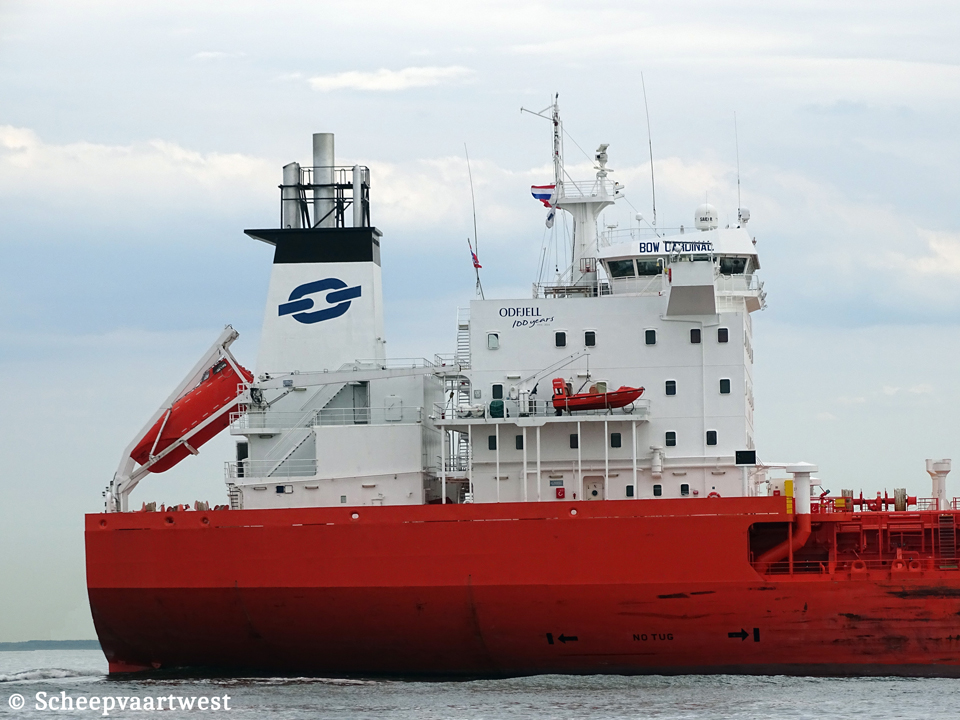

BOW CARDINAL |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9114244 |
|
Call sign |
V7A5151 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
Norway, Bergen - Call sign: LADQ5 |
|
GT |
23.220 t Suez: 23.397 t |
|
DWT |
Summer: 37.446 t |
|
NT |
12.176 t Suez: 20.798 t Panama: 19.325 t |
|
Lightship |
11.043 t |
|
Length |
183,10 m overall 176,00 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Summer: 10,72 m |
|
Keel to mast end |
43,36 m |
|
Depth |
14,00 m |
|
Speed |
Max: 15,0 knots Service: 14,3 knots |
|
Built |
1997 |
|
Keel laid |
18/01/1997 |
|
Launch date |
03/05/1997 |
|
Date of completion |
03/10/1997 |
|
Builder |
Kværner Florø AS Florø Norway |
|
Yard number |
135 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6L60MC - 6 cylinder combustion engine 14.169 bhp |
|
Propellers |
1x Controllable pitch propeller Diameter: 6,20 m |
|
Boilers |
2x Auxiliary boiler, oil/gas fired Aalborg AQ9 1x Auxiliary boiler, exhaust gas heated Aalborg AV-6N |
|
Generators |
2x B&W 6L28/32H main diesel generatorsets |
|
Emergency generator |
1x Volvo TMD 122 A diesel generatorset |
|
Bow thruster |
1x 1.200 hp |
|
Number of tanks |
52 |
|
Cargo tank capacity |
40.779 m³ |
|
Manifolds |
Summer Waterline to Manifold: 6,12 m Normal Ballast Waterline to Manifold: 9,80 m Rail to Manifold: 4,50 m Bow to Center of Manifold: 65,77 m |
|
Tank capacities |
Ballast: 15.438,1 m³ |
|
Manager |
Odfjell Management AS Bergen Norway |
|
Registered owner |
Odfjell Chemical Tankers AS Bergen Norway |
|
Previous owners |
1997 - 2007 Odfjell Chemical Tankers AS 2007 - 2009 Odfjell UK Ltd. |
|
Latest data adjustment |
17 January 2023 |
