Westerschelde 28 September 2018 |
|
Name |

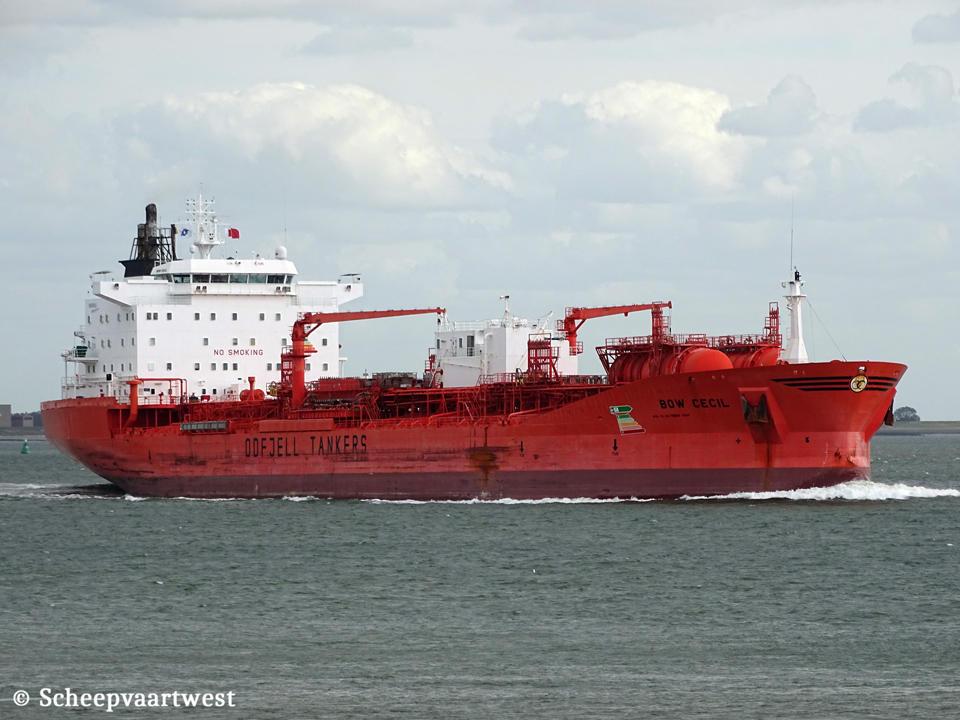

BOW CECIL |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9143219 |
|
Call sign |
LAGU5 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
23.230 t Suez: 23.386 t |
|
DWT |
Summer: 37.369 t |
|
NT |
11.915 t Suez: 20.699 t Panama: 1.353 t |
|
Lightship |
11.153 t |
|
Length |
183,10 m overall 176,90 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Summer: 10,72 m |
|
Keel to top of mast |
43,36 m |
|
Depth |
14,00 m |
|
Speed |
Max: 14,3 knots |
|
Built |
1998 |
|
Keel laid |
17/01/1998 |
|
Launch date |
03/08/1998 |
|
Date of completion |
23/10/1998 |
|
Builder |
Kværner Florø AS Florø Norway |
|
Yard number |
137 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side with top wing |
|
Bulkheads |
Transverse: 7 |
|
Continuous decks |
1 |
|
Main engine |
1x Hitachi/MAN-B&W 6L60MC - 6 cylinder combustion engine 11.475 kW / 14.160 hp at 123,0 rpm |
|
Propellers |
1x controllable pitch propeller |
|
Boilers |
2x Auxiliary boiler, oil/gas fired AQ9 1x Auxiliary boiler, exhaust gas heated AV-6N |
|
Shaft generator |
1x 1.200 kW |
|
Generators |
2x MAN-B&W 6L28/32H - 4 stroke 6 cylinder 280 x 320 mm main diesel engines each 1.342 kW connected with generators each 1.200 kW |
|
Emergency generator |
1x Volvo TMD 122A diesel generatorset 207 kW |
|
Bow thruster |
1x 883 kW / 1.200 hp |
|
Number of cargo tanks |
47 |
|
Manifolds |
Summer waterline to manifold: 5,60 m Normal ballast waterline to manifold: 9,80 m Rail to manifold: 4,50 m Bow to centre of manifold: 93,00 m |
|
Tank capacities |
Ballast: 15.034 m³ |
|
Manager |
Odfjell Management AS Conrad Mohrs Veg 29 5072 Bergen Norway |
|
Registered owner |
Nduna Maritime Pty Ltd. 93 Protea Road Chislehurston Sandton Gauteng 2196 South Africa |
|
Previous owners |
1998 Odfjell ASA 1999 UL Bow Cecil K/S 2007 Odfjell Chemical Tankers AS 2008 Odfjell UK Ltd. |
|
Latest data adjustment |
21 May 2021 |
