| Westerschelde 01 August 2020 |
|
Name |

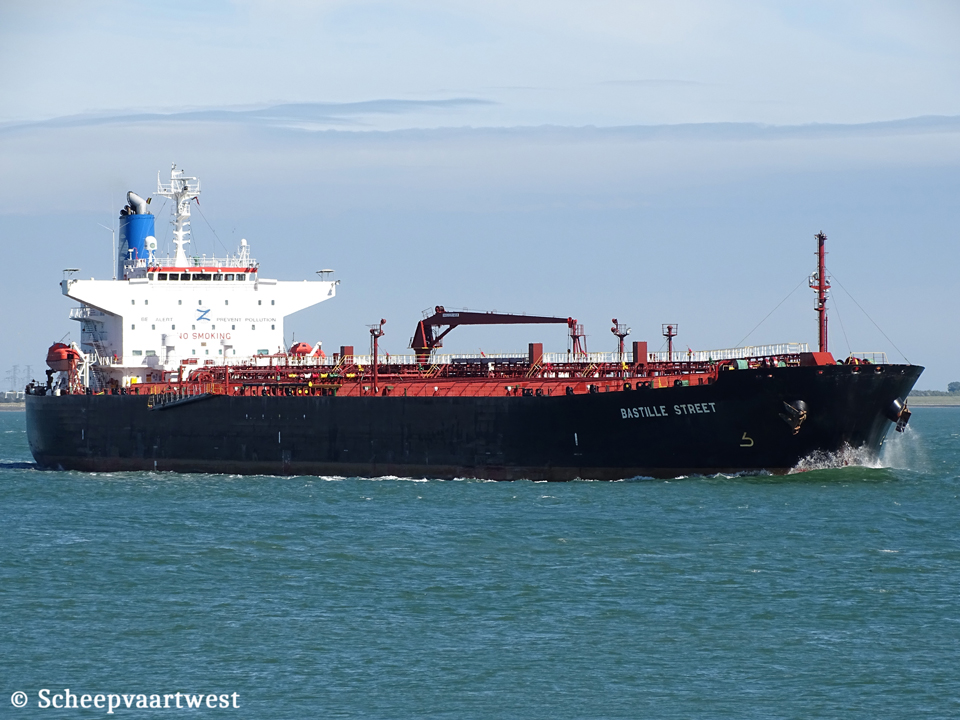

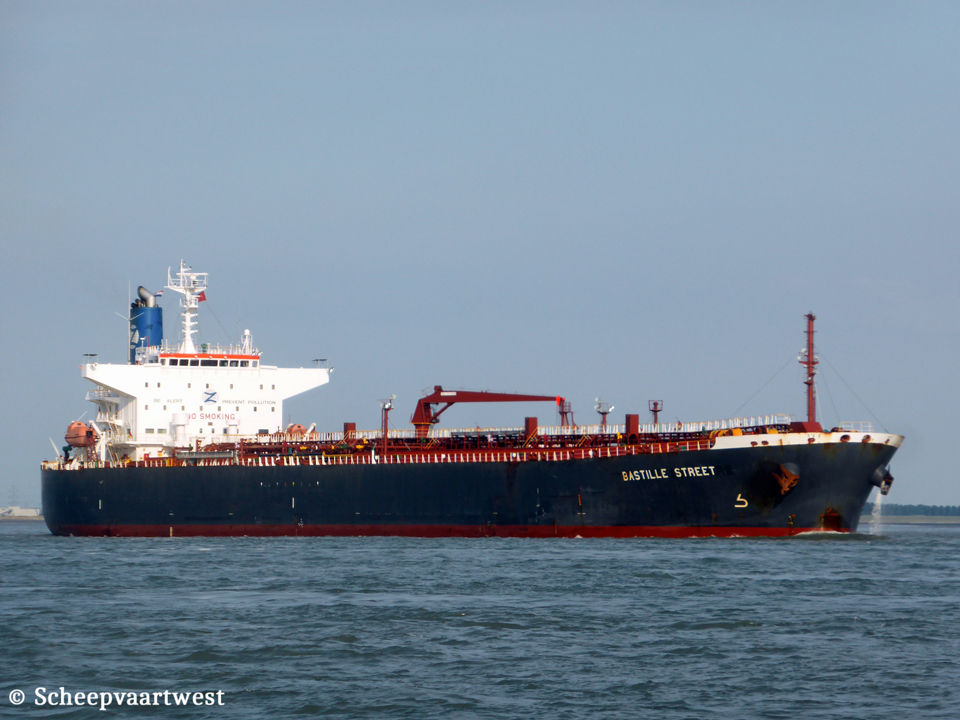

BASTILLE STREET |
|
Previous names |
2011 - 2013 Pacific Sapphire |
|
Type |
Oil products tanker - Panamax |
|
IMO-number |
9573701 |
|
Call sign |
A8YZ6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GRT |
28.778 t |
|
DWT |
47.906 t |
|
NRT |
12.680 t |
|
Length |
179,99 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 12,60 m |
|
Moulded L x B x D |
172,00 x 32,20 x 19,05 m |
|
Registered L x B x D |
172,47 x 32,20 x 19,05 m |
|
Freeboard |
Summer: 6.462 mm |
|
Depth |
19,05 m moulded |
|
Speed |
15,3 knots |
|
Built |
2011 |
|
Keel laid |
02/09/2010 |
|
Launch date |
14/01/2011 |
|
Date of completion |
25/05/2011 |
|
Builder |
Iwagi Zosen Co.,Ltd. Kamijima Japan |
|
Yard number |
294 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsui/MAN-B&W 6S50MC-C – 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 490 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,90 MPa Evaporation: 3,93 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW |
|
Number of tanks |
18 |
|
Cargo tank capacity 100% |
Liquid: 54.902 m³ |
|
Tank capacities |
Fuel oil: 2.365 m³ Fresh water: 270 m³ Ballast: 20.931 m³ |
|
Lifting equipment |
1x Kyoritsu Kinkai hose handling crane - SWL 10,0 t |
|
Manager |
Zodiac Maritime Limited 5th Floor, Portman House, 2 Portman Street, London, W1H 6DU United Kingdom |
|
Registered owner |
Forward Gloria Navigation SA Kyukan-Hakata Building, 26-29, Hakataekimae 3-chome, Hakata-ku, Fukuoka-shi, Fukuoka Prefecture, 812-0011 Japan |
|
Latest data adjustment |
16 June 2022 |
