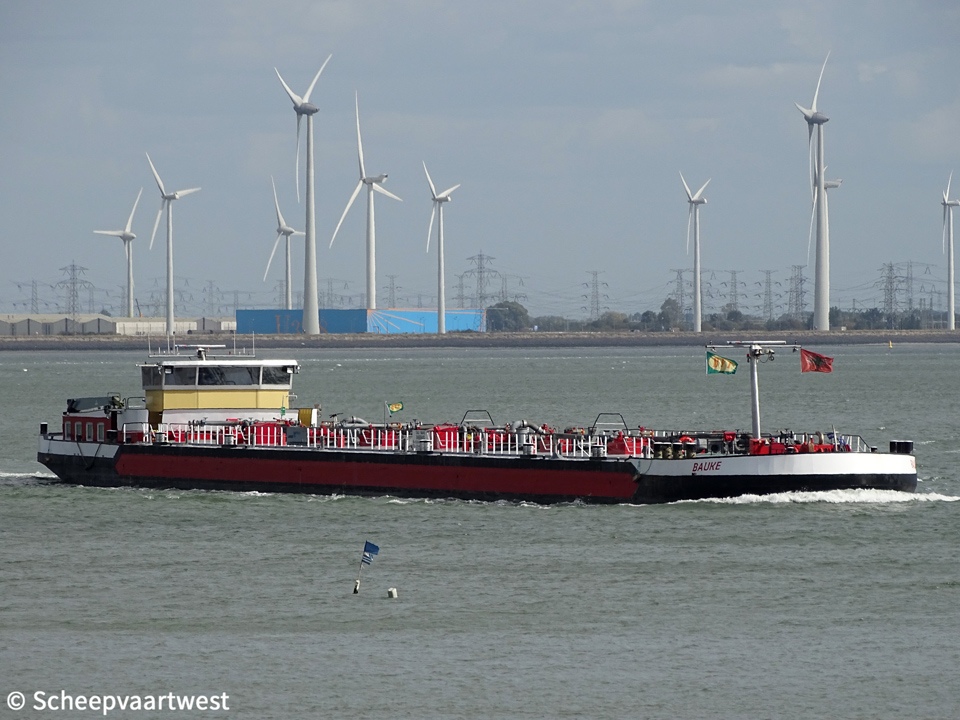

Bauke 02

Westerschelde 25 September 2018

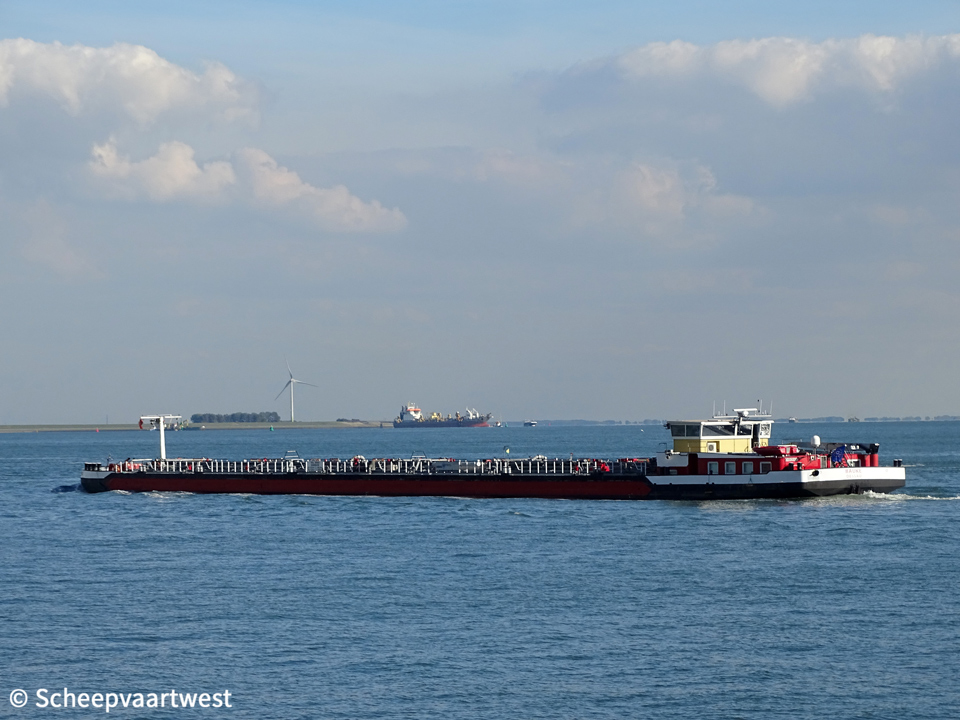

Bauke 01
Westerschelde 25/09/18













Name

BAUKE

Type

Inland tanker

ENI-number

04808410

Call sign

DK5474

Flag

Germany

Port of registry

Dessau

Tonnage

2.662,45 t

Length

109,96 m overall

Breadth

11,45 m

Draught

3,20 m

Depth

4,70 m

Built

2010

Keel laid

24/02/2010

Launch date

16/04/2010

Date of completion

15/06/2010

Builder casco

Hogau Scheepsbouw B.V.

Builder completion

GS Yard

Waterhuizen

The Netherlands

Yard number

114

Hull material

Steel

Hull type

Double hull

Main engine

1x ABC 6DZC-1000-166-A - 6 cylinder combustion engine 1.324 kW / 1.800 hp at 1.000 rpm

Builder: Anglo Belgian Corporation N.V., Gent - Belgium

Gear box

1x Reintjes type WGF 763 - reduction 3,007

Propellers

1x Fixed propeller diameter 1.800 mm with Giessen Optima nozzle 1.816 mm

Generators

1x Caterpillar C18 ACERT diesel engine connected with Marathon 572 RSL 4030 generator 525 kVA for bow thruster & cargo pumps

1x John Deere 6068 HFU72 diesel engine connected with Marathon 431 PSL 6202 generator 127 kVA

1x John Deere 4045 TFU70 diesel engine connected with Marathon 362 CSL 1604 generator 63 kVA

Bow thruster

1x Caterpillar 450 hp Verhaar Omega-Jet - connected with E-motor 330 kW at 1.780 rpm

Pumps

2x Bornemann EPS400 cargo pumps each 400 m³/h

Cargo tank capacity

3.044 m³

Anchor equipment

Length: 120,00 m

Lifting equipment

Diameter: 33 mm

Owner

Langius Tankschiffahrt GBR

Dessau

Germany

Registered owner

Klaas Langius und Bauke Langius

Latest data adjustment

12 September 2020
