| Westerschelde 18 April 2019 |
|
Name |

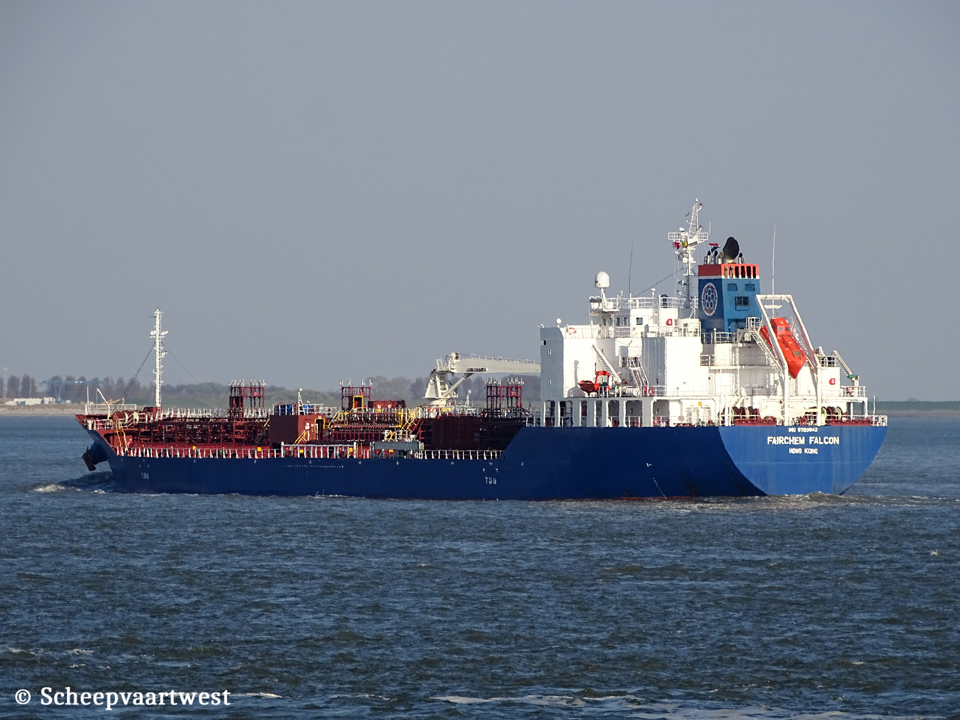

FAIRCHEM FALCON |
|
Type |
Oil/Chemical carrier |
|
IMO-number |
9799642 |
|
Call sign |
VRRI3 |
|
Flag |
Hong Hong - China |
|
Port of registry |
Hong Kong |
|
GRT |
12.188 t |
|
DWT |
19.971,17 t |
|
NRT |
6.273 t |
|
Length |
145,26 m overall 139,00 m between perpendiculars |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,78 m |
|
Moulded L x B x D |
139,00 x 24,20 x 13,20 m |
|
Registered L x B x D |
139,26 x 24,20 x 13,20 m |
|
Keel to mast end |
37,15 m |
|
Freeboard |
Summer: 3.448 mm |
|
Depth |
13,20 m moulded |
|
Speed |
Service: 14,5 knots Max: 16,9 knots |
|
Built |
2018 |
|
Keel laid |
21/12/2015 |
|
Launch date |
31/08/2018 |
|
Date of completion |
07/11/2018 |
|
Builder |
Kitanihon Shipbuilding Yard Japan |
|
Yard number |
651 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi 5UEC45LSE-1 -2 stroke single acting 5 cylinder 450 x 1.840 mm combustion engine 4.900 kW / 6/662 hp at 124,0 rpm Manufacturer: Akasaka Diesels Limited |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1x fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,9 MPa Evaporation: 16,12 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Diesel generatorsets total 2.350 kVA |
|
Bow thruster |
1x 700 kW |
|
Number of tanks |
16 |
|
Cargo tank capacity |
Liquid: 22.417,03 m³ |
|
Number of pumps |
16x Cargo pumps each 250 m³/h |
|
Tank capacities |
Fuel oil: 868,27 m³ Fresh water: 402,89 m³ |
|
Commerical manager |
Kowa Kaiun Co., Ltd. 470-1, Nagashima, Kaminoseki-cho, Kumage-gun, Yamaguchi-ken, 742-1402 Japan |
|
ISM manager |
Fleet Management Limited 27th Floor, South Island Place, 8, Wong Chuk Hang Road, Southern Hong Kong China |
|
Registered owner |
T.A.C.K. Shipping, S.A. Care of Kowa Kaiun KK (Kowa Kaiun Co Ltd) 470-1, Nagashima, Kaminoseki-cho, Kumage-gun, Yamaguchi-ken, 742-1402 Japan |
|
Latest data adjustment |
25 April 2022 |
