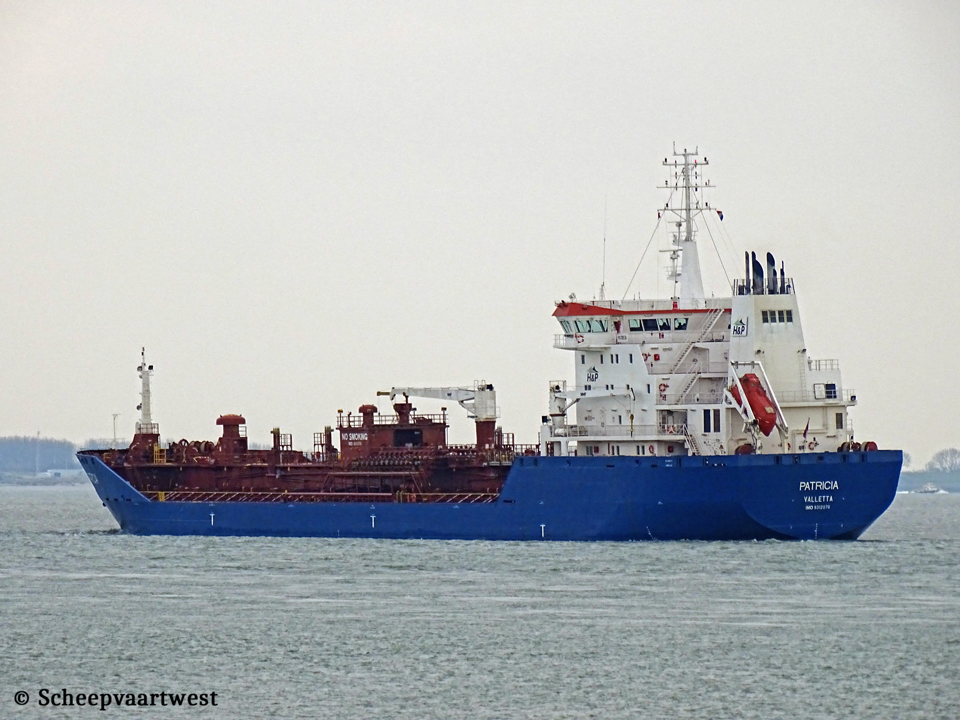

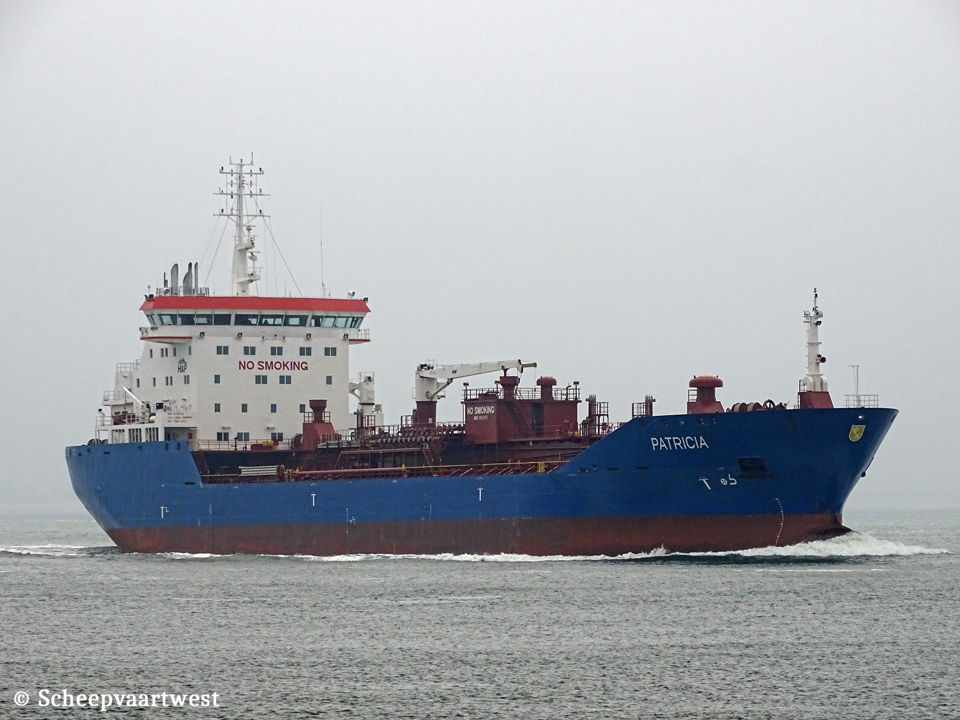

| Westerschelde 17 October 2019 |
 |
 |
|
| Westerschelde 07/05/17 | Westerschelde 26/06/16 | |
|
Name |
PATRICIA |
|
Previous names |
2005 - 2010 Maersk Naantali |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9312078 |
|
Call sign |
CQEJ9 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2005 - 2020 Malta, Valletta - Call sign: 9HNM9 |
|
GRT |
11.935 t |
|
DWT |
16.642 t |
|
NRT |
5.137 t |
|
Light displacement |
5.936 t |
|
Length |
144,05 m overall 133,80 m between perpendiculars |
|
Breadth |
23,03 m extreme |
|
Draught |
Summer: 8,90 m |
|
Keel to mast end |
44,41 m |
|
Depth |
12,40 m |
|
Speed |
Max: 15,0 knots |
|
Built |
2005 |
|
Keel laid |
20/12/2004 |
|
Launch date |
25/05/2005 |
|
Date of completion |
24/12/2005 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. China |
|
Yard number |
H2330 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1xMAN-B&W 6L48/60B - 4 stroke 6 cylinder 480 x 600 mm combustion engine 6.300 kW / 8.865 hp at 500 rpm Builder: MAN-B&W Diesel AG, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
Auxiliary boiler, oil/gas fired - Mission OM Auxiliary boiler, composite - Mission OC Manufacturer: Aalborg Industries A/S |
|
Shaft generator |
1x 1.500 kVA |
|
Generators |
3x Wärtsilä W6L20 main diesel generatorsets total 2.800 kVA |
|
Emergency generator |
1x AGCO Sisu 634 diesel generatorset 125 kVA |
|
Bow thruster |
1x 750 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
18.868,1 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Tank capacities |
IFO: 580,3 m³ MDO: 74,80 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Crew size |
20 |
|
ISM & commercial manager |
Harren Tanker Management GmbH & Co. KG Hermann-Hollerith-Strasse 10 28355 Bremen Germany |
|
Registered owner |
57. PHOENIX PCT UG (haftungsbeschränkt) & Co. KG MS "URANUS" |
|
Renamed |
Rubikon 78 Portugal, Madeira - Call sign: CQEJ9 Owner: Rubikon Shipping Company doo Beograd, 11000 Beograd - Serbia Manager: Harren Tanker Management GmbH & Co. KG |
|
Latest data adjustment |
09 April 2024 |
