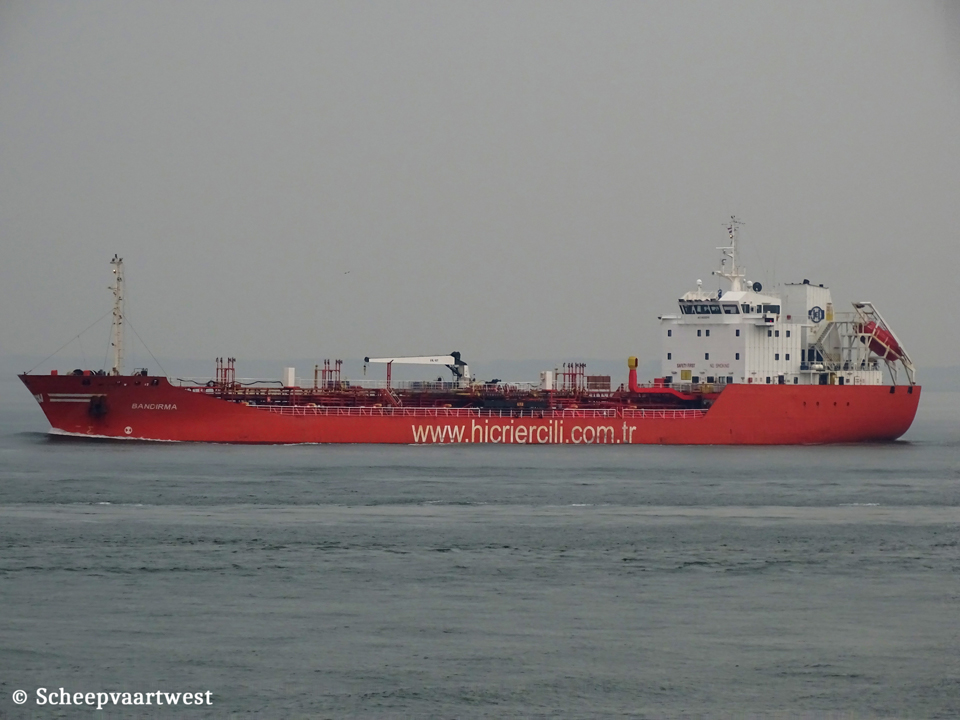

| Westerschelde 13 August 2020 |
|
Name |
BANDIRMA |
|
Previous names |
1997 - 02/2014 Mar Virgina |
|
Type |
Oil and Chemical tanker |
|
IMO-number |
9120243 |
|
Call sign |
TCA6559 |
|
Flag |
Turkey |
|
Port of registry |
Istanbul |
|
Previous flags |
1996 - 2011 Spain - Call sign: EAIN 2011 - 2013 Malta, Valletta - call sign: 9HA2844 2013 - 2021 Republic of Panama, Panama City - Cal sign: 3FMG5 |
|
GT |
6.085 t Suez: 6.600,94 t |
|
DWT |
Summer: 9.630,7 t |
|
NT |
2.714 t Suez: 5.057 ,79 t |
|
Lightship |
2.981,27 t |
|
Length |
121,00 m overall 113,22 m between perpendiculars |
|
Breadth |
18,50 m moulded |
|
Draught |
Summer: 7,39 m |
|
Keel to mast end |
35,00 m |
|
Bridge |
Bow: 94,00 m Stern: 27,00m |
|
Freeboard |
2.687 mm |
|
Depth |
10,08 m |
|
Speed |
Service: 12,0 knots Max: 15,5 knots |
|
Built |
1996 |
|
Keel laid |
1995 |
|
Launch date |
21/06/1996 |
|
Delivery date |
21/06/1996 |
|
Builder |
Union Naval De Levante Valencia Spain |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä - 4 stroke 8 cylinder combustion engine 3.323 kW / 4.456 hp at 750 rpm Build: 31/05/1995 Builder: Wärtsilä Diesel S.A. - Finland |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHR 49,20 m² - 9,0 bar 2x CHO 49,20 m² - 9,0 bar |
|
Shaft generator |
781 kVA - 625 kW |
|
Generators |
3x Wärtsilä UD25L06 main diesel generatorsets each 438 kVA - 350 kW - 476 hp |
|
Emergency generator |
1x Volvo Penta-Tamd71B diesel generatorset 100 kW |
|
Bow thruster |
1x Balino-Kamewa 685 Hp / 485 KW |
|
Cargo tank capacity 100% |
1P/1S: 524,7 m³ 2P/2S: 566,34 m³ 3P/3S: 608,28 m³ 4P/4S: 618,02 m³ 5P/5S: 1.226,74 m³ 6P/6S: 659,27 m³ 7P/7S: 778,61 m Total 98%: 9.964,70 m³ Total 100%: 9.963,98 m³ |
|
Pumps |
2x Framo deepwell cargo pumps each 300 m³/h 12x Framo deepwell cargo pumps each 200 m³/h 1x Emergence portable pump 70 m³/m² 2x Framo ballast pumps each 250 m³/h |
|
Manifolds |
Bridge manifolds: 34,00 m Stern manifolds: 61,00 m |
|
Tank capacities |
HFO: 98%: 242,25 m³ 100%: 255,00 m³ MGO: 98%: 102,98 m³ 100%: 108,40 m³ Lub oil: 31,82 m³ Sludge; 14,03 m³ Bilge: 11,91 m³ Grey/black water: 53,3 m³ |
|
Crew size |
20 |
|
Manager |
HICRI Ercili Deniz Nakliyat Turkey |
|
Owner |
HICRI Ercili Denizcilik Anonim Sirketi Kurkey |
|
Latest data adjustment |
23 January 2022 |
