Westerschelde 24 June 2020 |
|
Name |

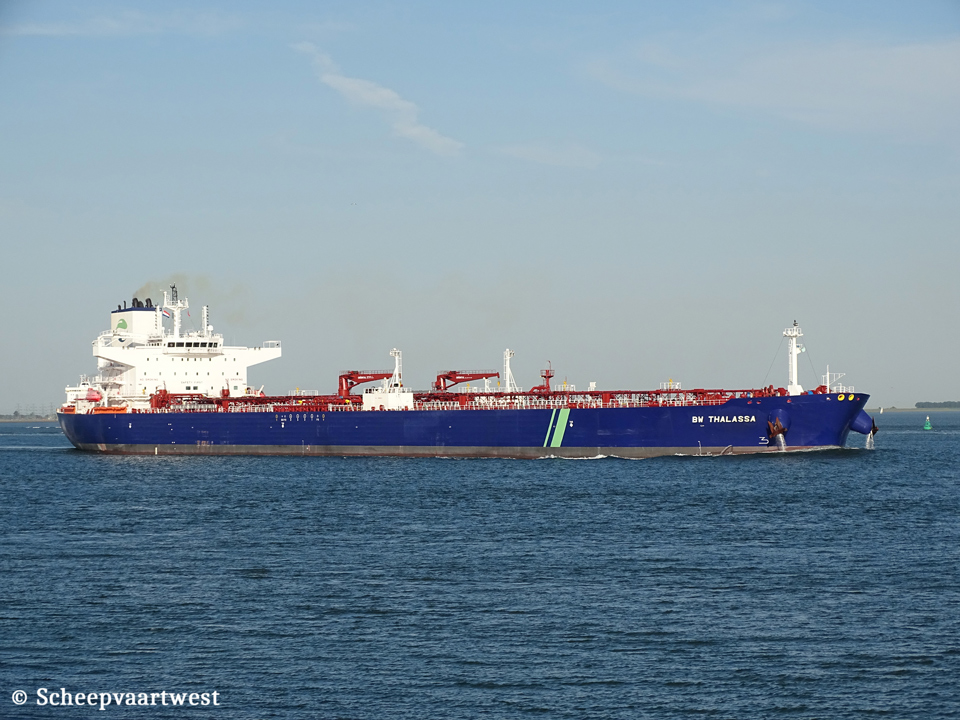

BW THALASSA |
|
Type |
Crude oil carrier - Aframax |
|
IMO-number |
9800324 |
|
Call sign |
9V6090 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
62.533 t Suez: 63.770,16 t |
|
DWT |
Summer: 104.999 t Winter: 102.192 t |
|
NT |
33.389 t Suez: 57.536,21 t Panama: 51.377 t |
|
Displacement |
Summer: 124.289,8 t Winter: 121.583,4 t |
|
Length |
249,90 m overall 242,00 m between perpendiculars |
|
Breadth |
44,04 m extreme |
|
Draught |
Summer: 14,14 m Winter: 13,84 m |
|
Keel to mast end |
49,44 m |
|
Air draft |
Summer deadweight: 35,31 m Normal ballast: 40,66 m Lightship: 46,88 m |
|
Freeboard |
Summer: 7.104 mm Winter: 7.398 mm |
|
Depth |
21,20 m moulded |
|
Speed |
Ballast Max: 12,50 knots - Economic: 11,0 knots Laden: Max: 12,50 knots - Economic: 11,0 knots |
|
Built |
2019 |
|
Launch date |
09/05/2019 |
|
Date of completion |
30/09/2019 |
|
Builder |
Daehan Shipbuilding Co Ltd. South Korea |
|
Yard number |
5025 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Doosan6G60ME-C9.5 - 6 cylinder combustion engine 13.450 KW |
|
Propellers |
1 |
|
Generators |
3x STX/7L23/30H diesel generatorsets each 1.250 kW 1x STX/6L23/30H diesel generatorset 1.050 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
Seg#1 (1P, 1S, 4P & 4S): 39.402,80 m³ Seg#2 (2P, 2S, 5P & 5S): 43.176,00 m³ Seg#3 (3P, 3S, 6P & 6S): 41.950,40 m³ 124.529,20 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
2.747,50 m³ |
|
Number of pumps |
2x Centrifugal ballast pumps each 1.800 m³/h 3x Centrifugal cargo pumps each 3.000 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 79,10 m Bow to centre manifold: 126,9 m Stern to centre manifold: 123,81 m Distance between cargo manifold centres: 2.500 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 700 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Fuel oil: 1.946,46 m³ Gas oil: 533,80 m³ |
|
Lifting equipment |
2x Cranes - SWL 15,0 t |
|
Commercial operator |
Equinor ASA PRO Shipping, ST-FO E-3 Forusbeen 50 N-4035 Stavanger Norway |
|
Technical operator |
BW Fleet Management Pte. Ltd. 10 Pasir Panjang Road, #18-01 Mapletree Business City Singapore 117438 Republic Singapore |
|
Registered owner |
BW Aldrich Pte Ltd. 10 Pasir Panjang Road, #18-01 Mapletree Business City Singapore 117438 Republic Singapore |
|
Disponent owner |
Equinor ASA PRO Shipping, ST-FO E-3 Forusbeen 50 N-4035 Stavanger Norway |
|
Latest data adjustment |
24 November 2021 |
