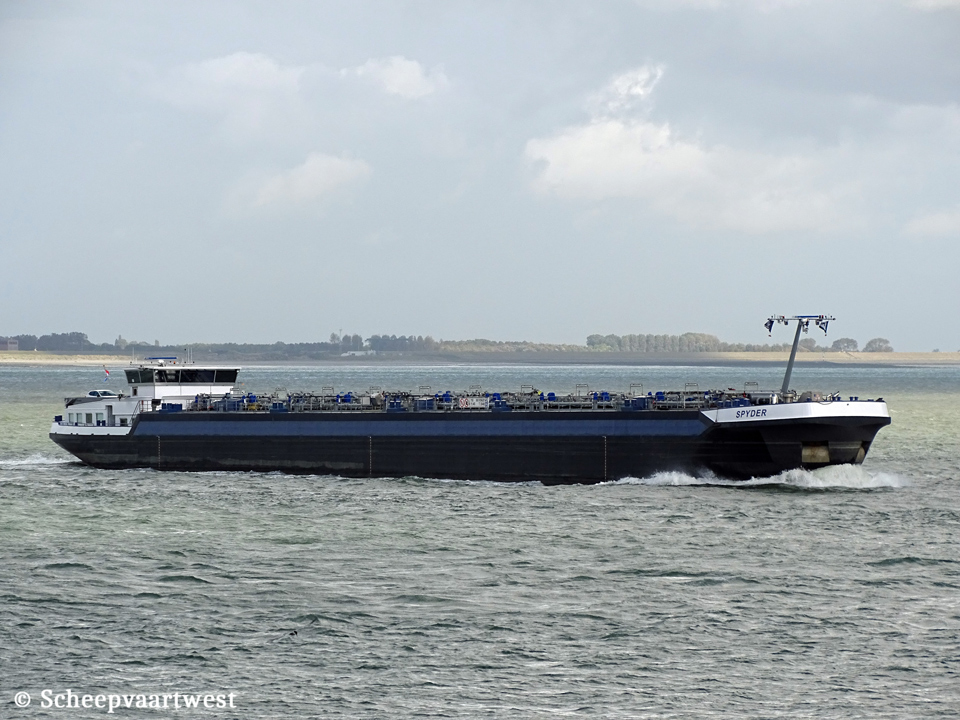

Westerschelde 29 August 2020 |
|
Name |
SPYDER |
|
Type |
Inland tanker |
|
ENI-number |
06105620 |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Ahn |
|
Tonnage |
3.549 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
4,10 m |
|
Depth |
5,85 m |
|
Built |
2018 |
|
Builder casco |
Santierul Naval Orsova SA Orsova Romania |
|
Builder completion |
Asto Raamsdonksveer The Netherlands |
|
Yard number |
1086 |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA electronic combustion engine 1.836 hp |
|
Gearbox |
1x Reintjes WAF 763 L - reduction 5,136:1 |
|
Propellers |
1 |
|
Bow thruster |
1x Verhaar Omega-Jet VBS1200sr electro motor thruster 393 kW / 535 hp at 1.780 rpm Propeller diameter: 1.200 mm |
|
Number of tanks |
11 |
|
Cargo tank capacity |
11x 380 m³ Total: 4.180 m³ |
|
Number of pumps |
8x MDPD-80 cargo pumps |
|
Owner |
Ortus SA 7 Route du Vin L-5401 Ahn (Ohn) G.D. Luxembourg |
|
Latest data adjustment |
08 August 2021 |
