Westerschelde 07 February 2019 |
|
Name |

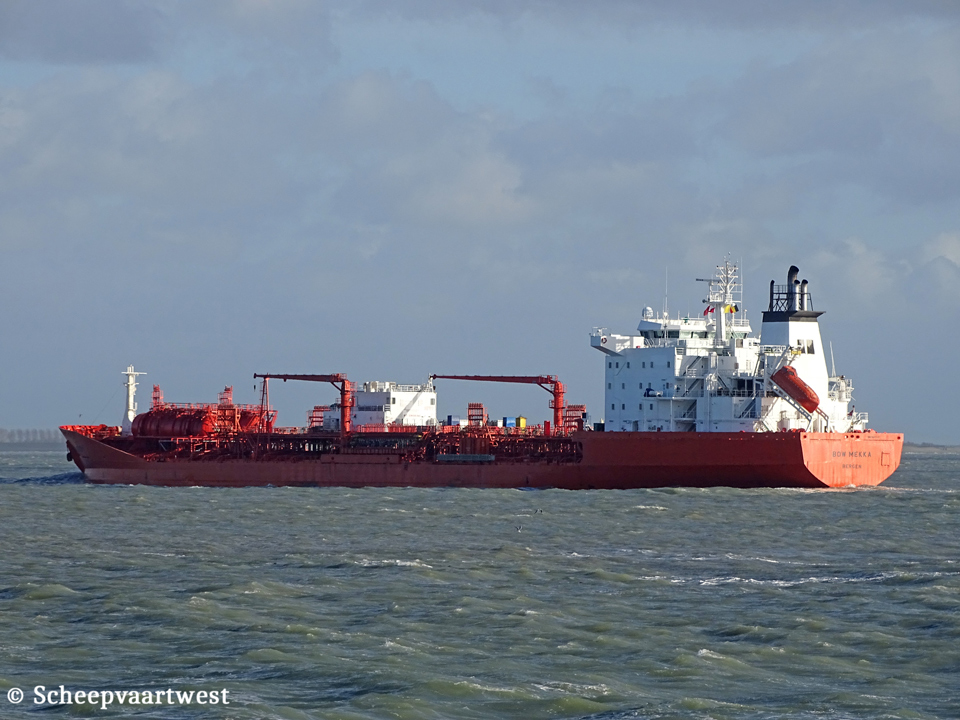

BOW MEKKA |
|
Previous names |
1995 - 06/2009 NCC Mekka |
|
Type |
Oil/chemical tanker |
|
IMO-number |
9047752 |
|
Call sign |
LAUD4 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
23.197 t |
|
DWT |
Summer: 37.272 t |
|
Length |
183,10 m overall 176,9 m between perpendiculars |
|
Breadth |
32,20 m |
|
Draught |
Summer: 10,72 m |
|
Depth |
14,00 m |
|
Speed |
Service: 14,3 knots Max: 16,0 knots |
|
Built |
1995 |
|
Keel laid |
08/06/1994 |
|
Launch date |
06/01/1995 |
|
Date of completion |
05/05/1995 |
|
Builder |
Kvaerner Floro AS (Floro Yard) Floro Norway |
|
Yard number |
258 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6L60MC - 2 stroke single acting 6 cylinder 600 x 1.944 mm combustion engine 11.475 kW / 15.601 hp at 123,0 rpm Builder: Hyundai Heavy Industries Co., Ltd., Ulsan - South Korea |
|
Propellers |
1x Controllable pitch propeller - aft at 123,0 rpm |
|
Shaft generator |
1x 1.100 kW |
|
Generators |
2x MAN-S&W 6L28/32H - 4 stroke 6 cylinder 280 x 320 mm diesel engines each 1.343 kW connected with generators each 1.300 kW 230/450 Volt 60 Hz |
|
Bow thruster |
1x Controllable pitch thruster 883 kW / 1.200 bhp, forward |
|
Number of tanks |
52 |
|
Cargo tank capacity 98% |
40.658 m³ |
|
Number of pumps |
5x Cargo pumps each 500 m³/h 13x Cargo pumps each 300 m³/h 30x Cargo pumps each 200 m³/h 4x Cargo pumps each 100 m³/h |
|
Tank capacities |
Fuel oil: 1.344 m³ Diesel oil: 563 m³ Ballast: 15.438,2 m³ |
|
Crew size |
23 |
|
Manager |
Odfjell Asia Singapore City Republic of Singapore |
|
Operator |
Odfjell Management AS Conrad Mohrs veg 29 5072 Bergen Norway |
|
Owner |
National Chemical Carriers Ltd. Co. Riyadh Saudi Arabia |
|
Renamed |
2019 NCC Mekka Saudi Arabia, Dammam - Call sign: HZBZ |
|
Scrapped |
15/07/2020 Beached at Alang - India |
|
Latest data adjustment |
02 June 2021 |
