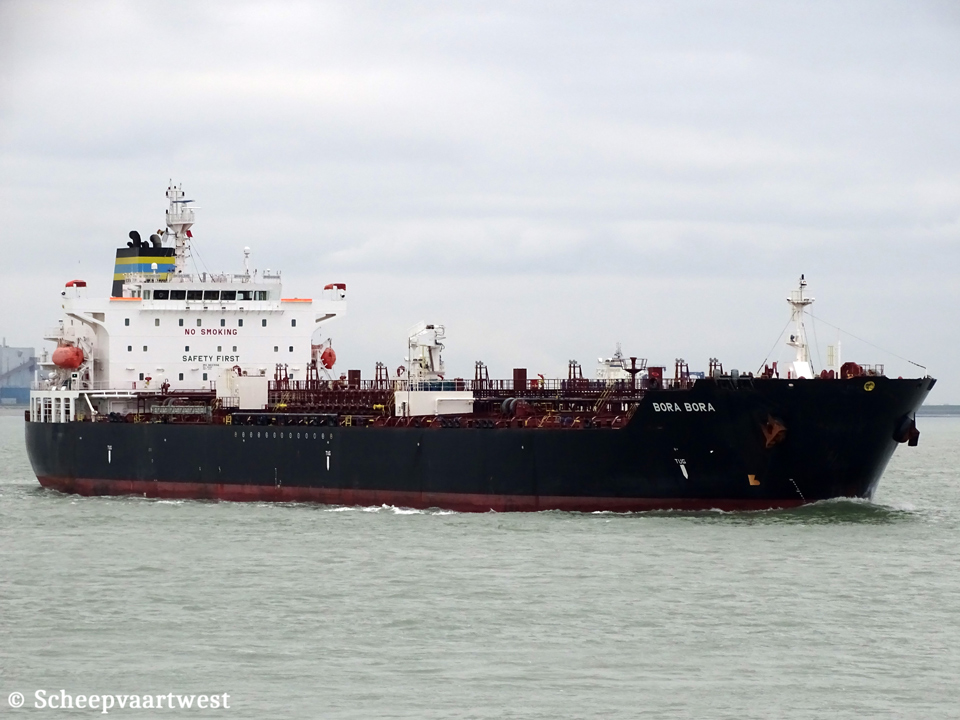

Bora Bora IMO 9621596 01

Westerschelde 05 January 2020

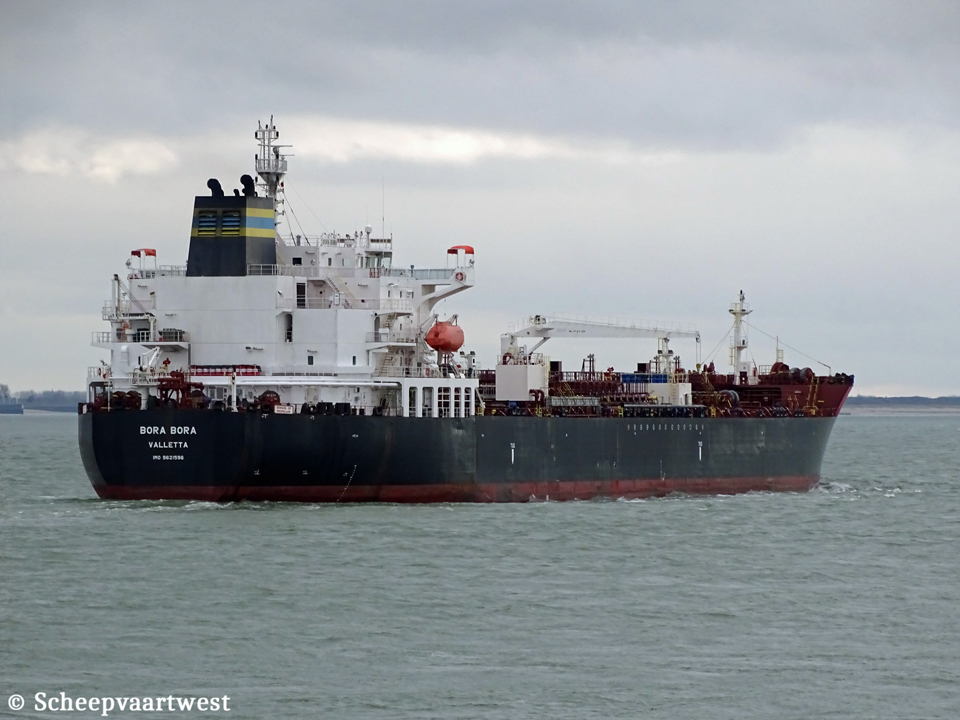

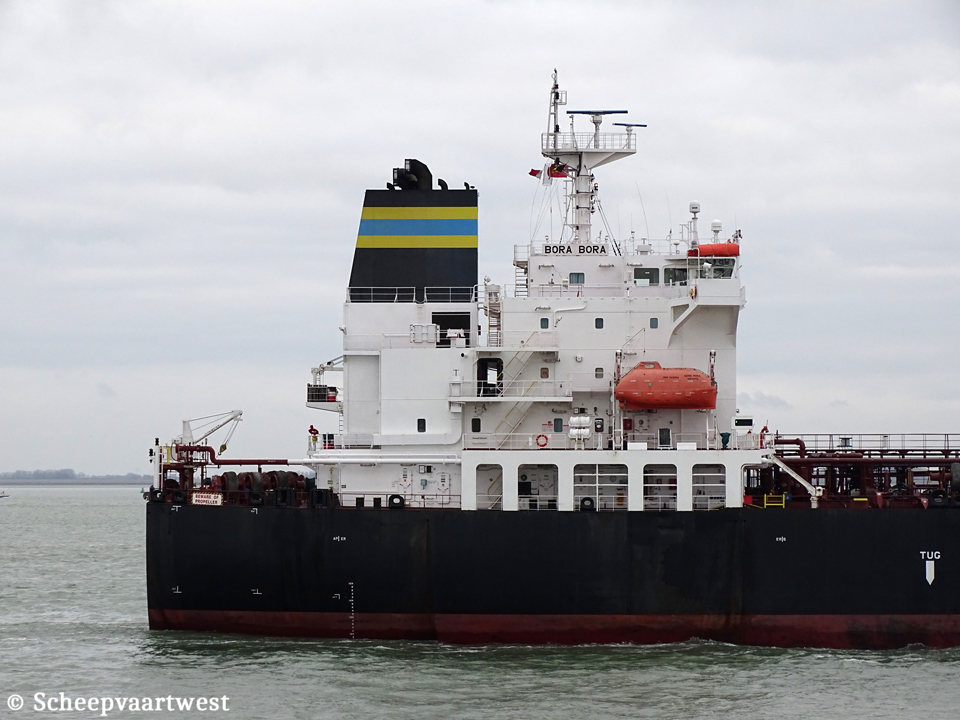

Bora Bora IMO 9621596 03   Bora Bora IMO 9621596 02
Westerschelde 05/01/20   Westerschelde 05/01/20













Name

BORA BORA

Type

Chemical and oil product tanker

IMO-number

9621596

Call sign

9HA4247

Flag

Malta

Port of registry

Valletta

GT

29.795 t registered

DWT

49.994 t

NT

13.770 t registered

Length

183,00 m overall

Breadth

32,20 m moulded

Draught

Summer: 13,29 m

Moulded L x B x D

174,00 x 32,20 x 19,10 m

Registered L x B x D

175,34 x 32,20 x 19,10 m

Freeboard

Summer: 5.834 mm

Depth

19,10 m moulded

Speed

Max: 15,2 knots

Built

2016

Keel laid

07/09/2015

Launch date

25/11/2015

Date of completion

24/03/2016

Builder

SPP Shipbuilding Co. Ltd.

Tongyoung

South Korea

Yard number

S1179

Hull material

Steel

Hull type

Double hull

Main engine

1x Doosan/MAN-B&W 6S50ME-B9.3 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 7.660 kW at 99,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 495 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 0,9 MPa

Evaporation: 2,08 t/h

1x Auxiliary vertical boiler - 0,9 MPa

Evaporation: 18,0 t/h

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Generators

4x Generatorsets total 3.563 kVA

Number of cargo tanks

12

Cargo tank capacity 98%

53.083 m³

Number of slop tanks

2

Residue tanks

1

Pumps

12x Framo SD200 cargo pumps each 600 m³/h

2x Framo SD200 slop tank pumps each 300 m³/h

1x Framo SD100 residue pump 100 m³/h

Tank capacities

Fuel oil: 1.544,7 m³

Fresh water: 325,6 m³

Lifting equipment

1x Hose handling crane - SWL 10,0 t

1x Provision crane - SWL 3,5 t

Manager

TMS Tankers Ltd.

109, Kifissias Ave. & Sina str.,

GR-151 24 Maroussi

Greece

Registered owner

Angelino Shipping Ltd.

c/o TMS Tankers Ltd, Omega Building, 80

Kifisias Avenue

151 25 Athens

Greece

Latest data adjustment

05 April 2021
