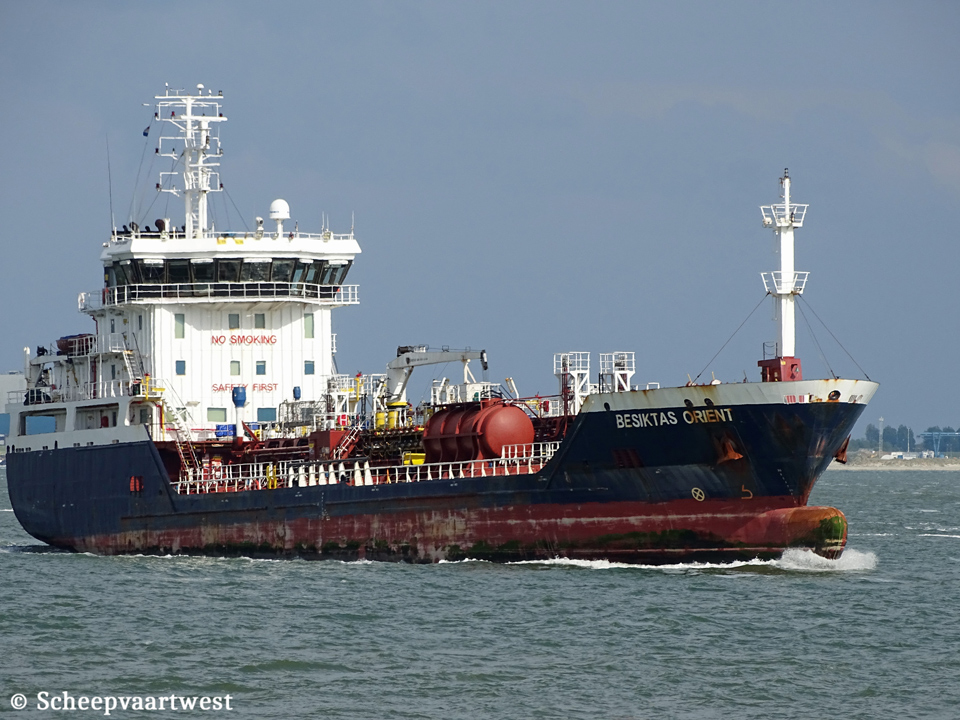

Besiktas Orient IMO 9517446 02

Westerschelde 06 May 2019

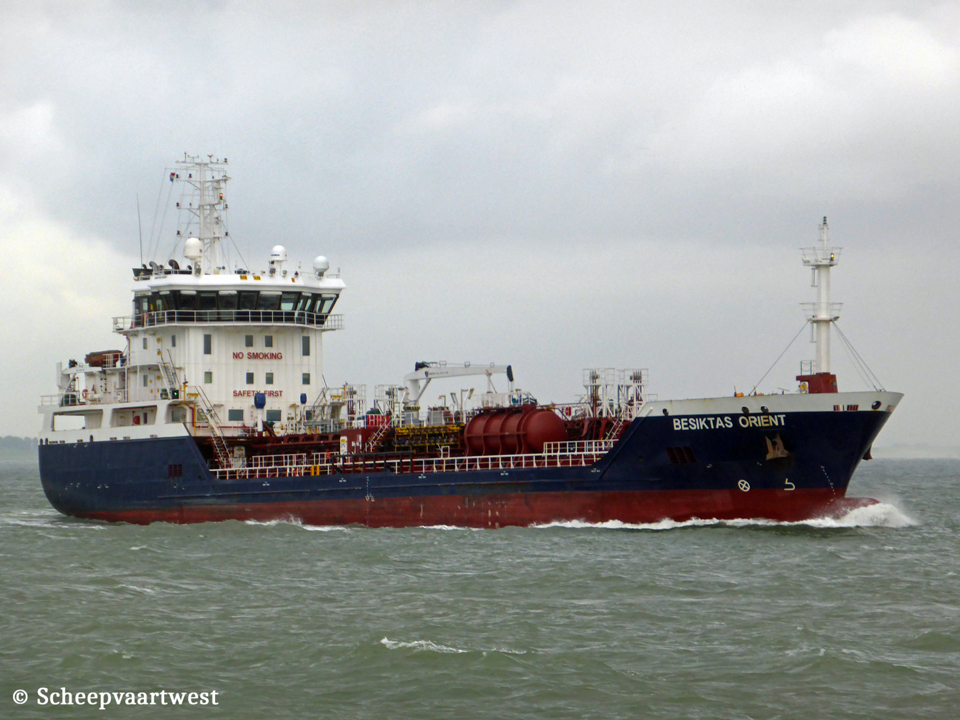

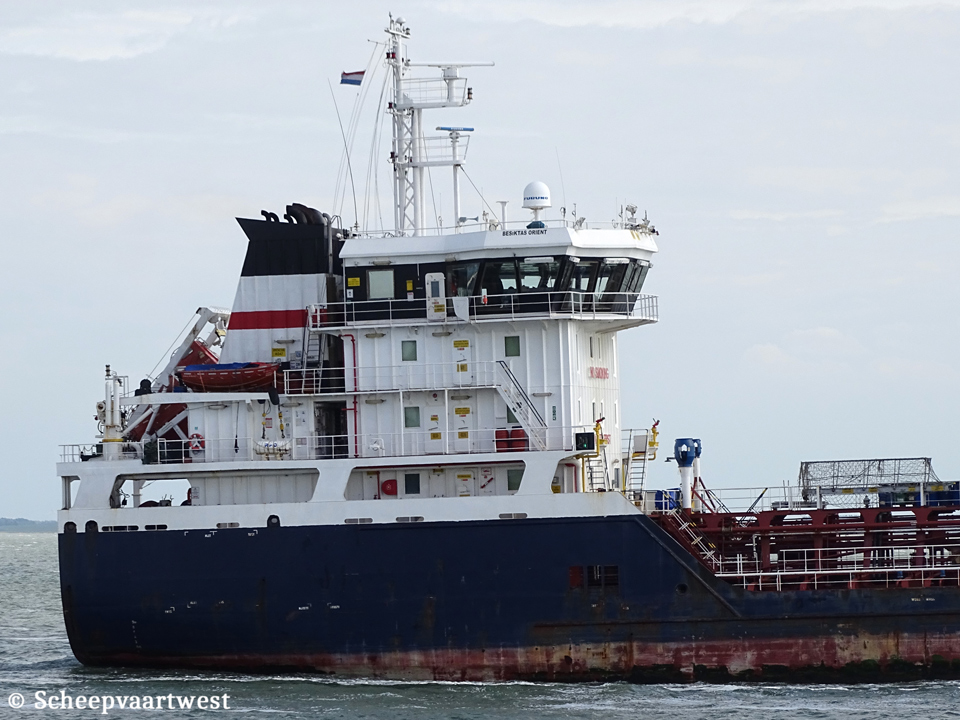

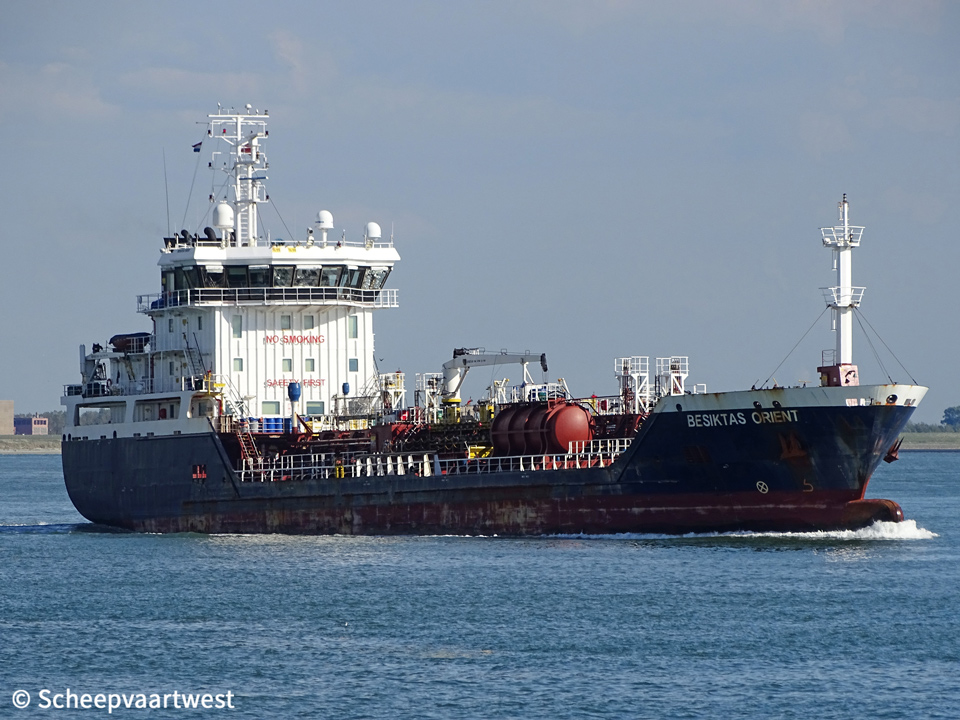

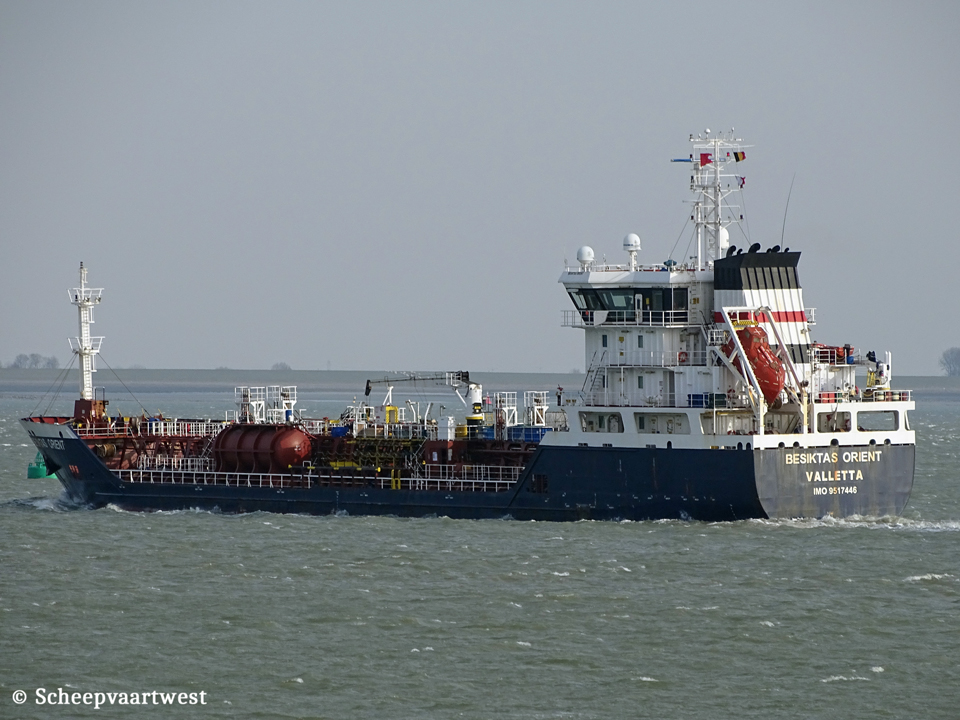

Besiktas Orient IMO 9517446 03   Besiktas Orient 01   Besiktas Orient IMO 9517446 04   Besiktas Orient IMO 9517446 05   Besiktas Orient IMO 9517446 06
Westerschelde 06/05/19 Westerschelde 25/09/18   Westerschelde 24/02/18   Westerschelde 04/09/15   Westerschelde 04/09/15


Name

BESIKTAS ORIENT

Type

Tanker for chemicals and oil products

IMO-number

9517446

Call sign

9HA2100

Flag

Malta

Port of registry

Valletta

Previous flags

2009 - 2013 Turkey - Call sign: TCWK3

GT

2.974 t

DWT

Summer: 4.127 t

NT

1.192 t

Length

98,71 m overall

91,84 m between perpendiculars

Breadth

14,10 m

Draught

Summer: 5,80 m

Depth

7,20 m

Speed

Max: 14,0 knots

Built

2009

Keel laid

24/03/2008

Launch date

23/06/2009

Date of completion

07/08/2009

Builder

Besiktas Gemi Insa A.S. (Besiktas Shipyard)

Altinova

Turkey

Yard number

01

Hull material

Steel

Hull type

Double hull

Main engine

1x MaK 9M20 - 4 stroke 9 cylinder combustion engine 1.710 kW / 2.323 hp at 1.000 rpm

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Controllable pitch propeller

Boilers

2x Thermal oil heater, oil fired

1x Thermal oil heater, exhaust heated

Shaft generator

1x LSAM 46.2 L6 - 232 kW

Generators

3x MAN D2876 main diesel generatorsets each 280 kW / 450 V 60 Hz

Emergency generator

1x MAN D 0824 LE 201 diesel generatorsets 99 KW

Bow thruster

1x 346 kW

Number of cargo tanks

11

Cargo tank capacity

4.178 m³

Number of slop tanks

2

Pumps

11 x Cargo pumps each 150 m³/h

Tank capacities

Ballast: 1.809,3 m³

Anchor equipment

Length: 467,50 m

Diameter: 38 mm

Manager

Besiktas Ship Management

Operator

Besiktas Likid Tasimacilik Denizcilik Ticaret A.S.

Turkey

Owner

Besiktas Shipping Group

Istanbul

Turkey

Registered owner

Kas Tanker Co., Ltd.

Istanbul

Turkey

Renamed

2019 Brahms

Cyprus, Limassol - call sign: 5BFJ5

Owner: Brahms Tanker GmbH & Co. KG

Operator: GEFO Gesellschaft für Oeltransporte mbH

Latest data adjustment

19 October 2020
