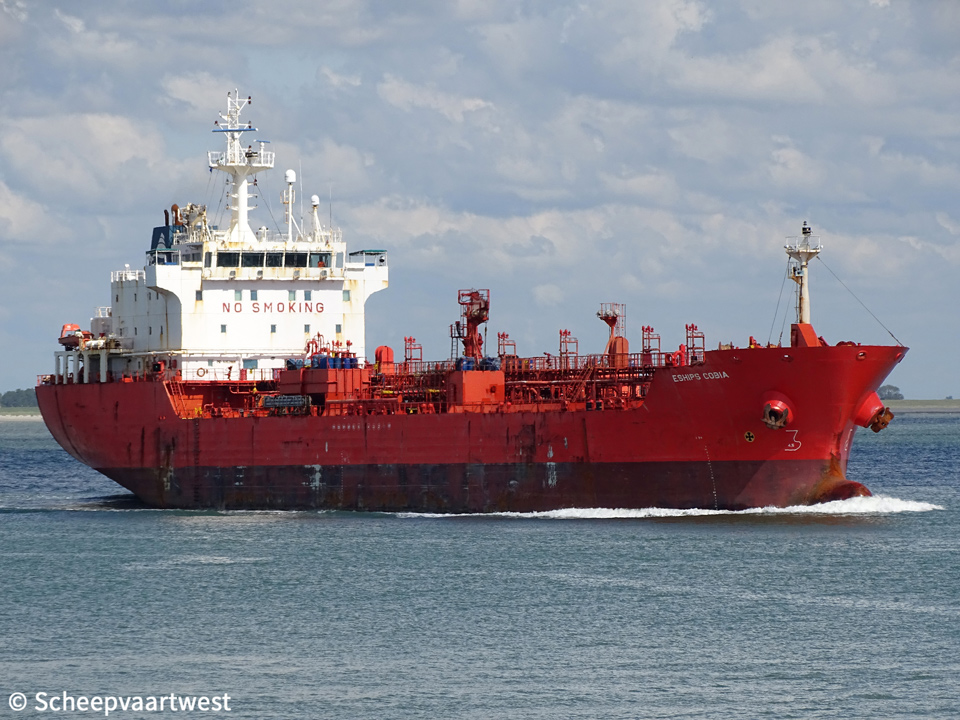

Eships Cobia 02

Westerschelde 10 July 2020

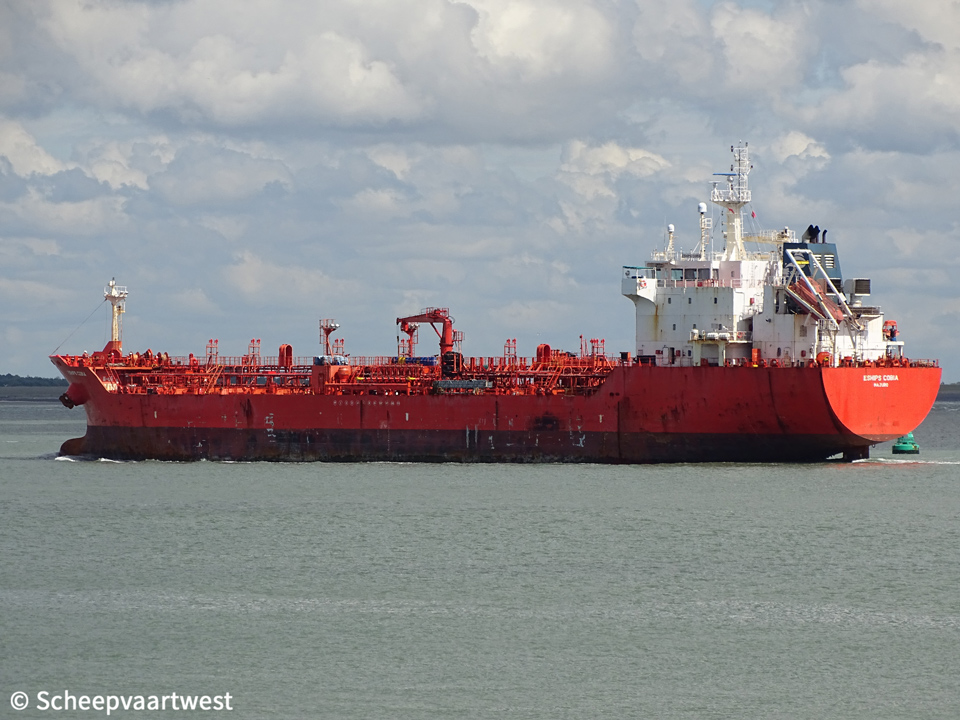

Eships Cobia 01
Westerschelde 10/07/20













Name

ESHIPS COBIA

Type

Tanker for chemicals

IMO-number

9353888

Call sign

V7KC4

Flag

Marshall Islands

Port of registry

Majuro

GT

8.473 t

Suez: 9.043,15 t

DWT

Summer: 13.146 t

Winter: 12.720 t

NT

3.868 t

Suez: 7.044,66 t

Displacement

Summer: 17.154 t

Winter: 16.728 t

Length

127,69 m overall

119,50 m between perpendiculars

Breadth

20,40 m extreme

Draught

Summer: 8,61 m

Winter: 8,44 m

Keel to masthead

38,90 m

Air draft

Summer deadweight: 30,29 m

Normal ballast: 32,72 m

Lightship: 36,57 m

Freeboard

Summer: 3.110 mm

Winter: 3.290 mm

Depth

11,70 m moulded

Speed

Ballast: Max: 14,0 knots - Economic: 11,0 knots

Laden: Max: 14,0 knots - Economic: 11,0 knots

Built

2006

Keel laid

11/08/2006

Launch date

25/10/2006

Date of completion

24/11/2006

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

2005

Hull material

Steel

Hull type

Double hull

Main engine

1x MAK 9M32C - 9 cylinder combustion engine 4.500 kW

Builder: Caterpillar Motoren GmbH & Co, KG

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired (Oil Fired)

Builder: Kangrim

Generators

2x Yanmar 6N21AL-UV main diesel generatorsets each 875 kW

Emergency generator

1x Cummins 6CTA-8,3-D(M) diesel generatorset

Bow thruster

1x 612 bhp

Number of cargo tanks

12

Cargo tank capacity 98%

13.372,60 m³

Capacity of each natural segregation with double valve 98%

Seg#1: 1.560,8 m³ (1P, 1S)

Seg#2: 2.276,1 m³ (2P, 2S)

Seg#3: 2.436,2 m³ (3P, 3S)

Seg#4: 2.436,2 m³ (4P, 4S)

Seg#5: 2.436,2 m³ (5P, 5S)

Seg#6: 2.227,1 m³ (6P, 6S)

Number of slop tanks

2

Slop tank capacity 98%

476,20 m³

Pumps

2x Frama SB-200 ballast pumps each 350 m³/h

12x Framo SD-150 cargo pumps each 300 m³/h

2x Framo SD-100 cargo pumps each 100 m³/h

Manifolds

Distance bridge front to centre of manifold: 38,78 m

Bow to centre manifold: 60,87 m

Stern to centre manifold: 66,82 m

Distance between cargo manifold centres: 900 mm

Distance ships rail to manifold: 3.700 mm

Distance manifold to ships side: 3.700 mm

Top of rail to centre of manifold: 360 mm

Distance main deck to centre of manifold: 1.870 mm

Spill tank grating to centre of manifold: 840 mm

Tank capacities

Ballast: 5.441,2 m³

Fuel oil: 607,20 m³

Diesel oil: 82,30 m³

Anchor equipment

Length: 550,00 m

Diameter: 50 mm

Lifting equipment

1x.Hose handling crane: - SWL 5,0 t

1x Provision crane - SWL 2,5 t

1x Rescue boat crane - SWL 1,2 t

Technical operator

Synergy Maritime Private Limited

4th Floor, AKDR Tower, 3/381,Rajiv Gandhi Salai(OMR)

Mettukuppam Chennai 600097

India

Commercial operator

Monjasa A/S

Stevelinsvej 34 700 Federicia

Denmark

Registered owner

Eships Cobia Ltd,

Trust Company copmpex, Ajeltake Road, Ajeltake islands

Majuro, MH96960

Marshall Islands

Group

Tristar Group Companies

Latest data adjustment

25 September 2020
