Westerschelde 16 August 2019 |
 |
 |
|
| Westerschelde 16/08/19 | Westerschelde 16/08/19 | |
|
Name |

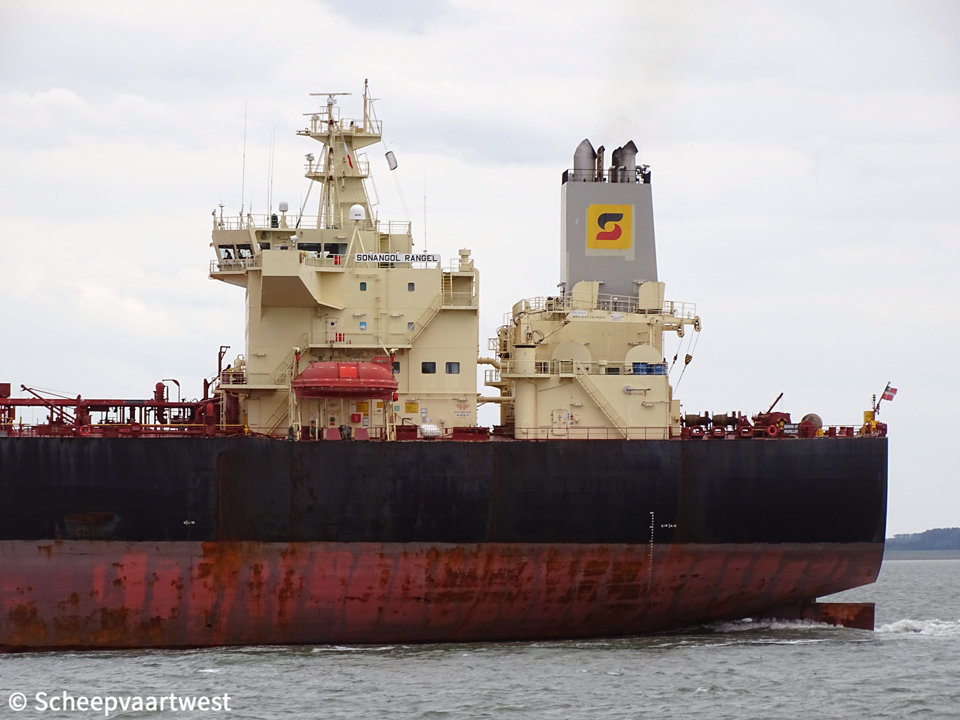

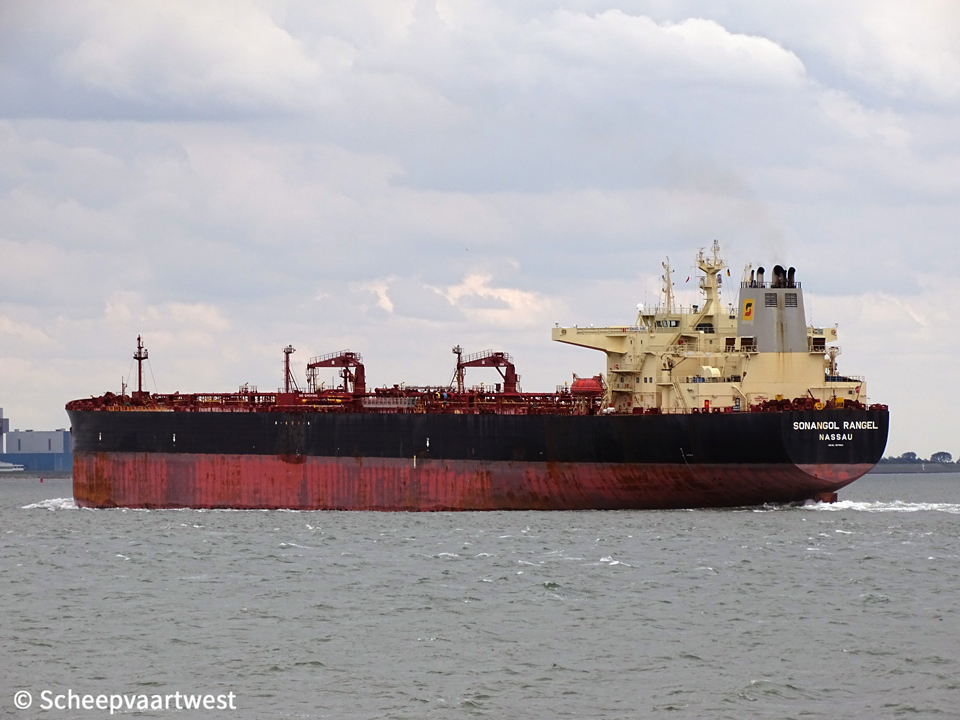

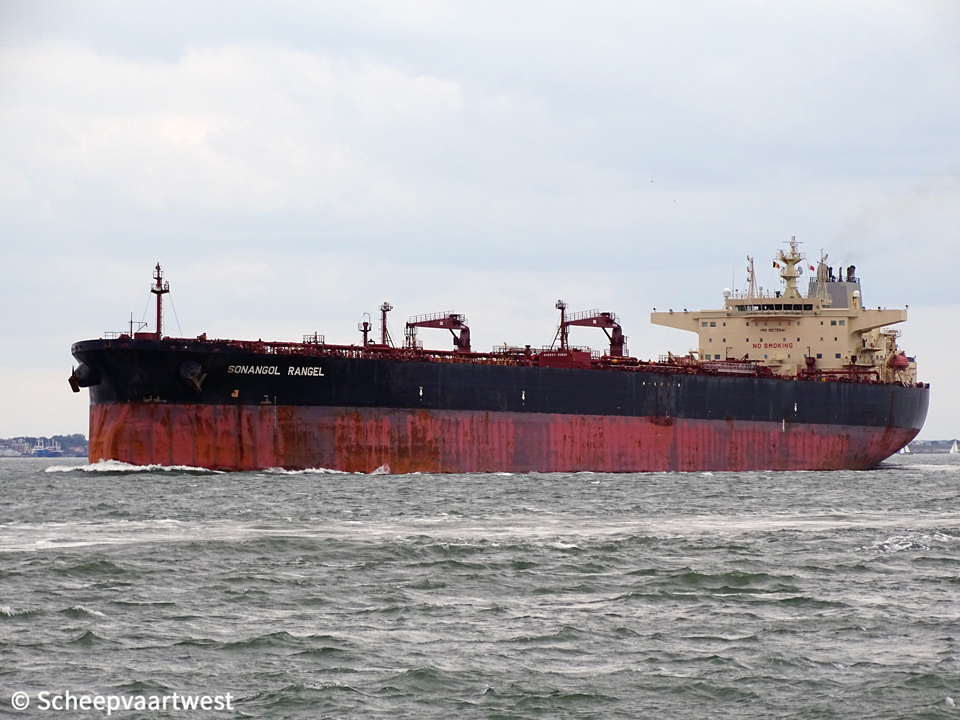

SONANGOL RANGEL |
|
Type |
Crude and oil products carrier - Post-Panamax |
|
IMO-number |
9575541 |
|
Call sign |
C6ZF3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
83.753 t Suez: 85.045,6 t |
|
DWT |
Summer: 157.755,5 t |
|
NT |
49.22 t Suez: 77.652,38 t |
|
Displacement |
170.603 t |
|
Length |
274,00 m overall 264,00 m between perpendiculars |
|
Breadth |
48,03 m extreme |
|
Draught |
Max: 17,02 m |
|
Freeboard |
7.719 mm |
|
Depth |
23,70 m moulded |
|
Speed |
15,4 knots |
|
Built |
2011 |
|
Keel laid |
28/12/2010 |
|
Launch date |
11/03/2011 |
|
Delivery date |
26/07/2011 |
|
Builder |
DSME - Daewoo Shipyard Marine Engineering 3370 Geojedaero Geoje-Si Gyeongsangnam-Do, 656-714 Republic of Korea |
|
Yard number |
5349 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHI/MAN-B&W 6S70MC-C8 - 2 stroke single acting 6 cylinder 700 x 2.800 mm combustion engine 16.850 kW / 22.916 bhp at 91,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller - 4 blades Manufacturer: Mecklenburger Metallguss GmbH |
|
Boilers |
1x Exhaust gas economizer Mission XW - 22,0 MPa 1x Fired boiler - Mission OL 18,5 MPa 1x Fired boiler - Mission OL 18,5 MPa Manufacturer: Aalborg Industries Ltd / China |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: HHI Electro Electric System |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
175.574,40 m³ |
|
Number of slop tanks |
2 |
|
Tank capacities |
Fuel oil: 3.454 m³ Ballast: 55.225,2 m³ Diesel oil: 349,4 m³ Fresh water: 469,6 m³ Lube oil: 166,8 m³ |
|
Anchor equipment |
1x Engine room crane - SWL 6,3 t Manufacturer: Dongnam Marine Crane Co., Ltd. 1x Hose handing crane (STBD) - SWL 15,0 t 1x Hose handing crane (Port) - SWL 15,0 t Manufacturer: Dalian Shidao Marine Fitting Co., Ltd. |
|
Manager |
Sociedad Nacional de Combustiveis de Angola (Sonangol) Rua Rainha Ginga, No 29/31 Luanda Angola |
|
ISM Manager |
Wallem Ship Management Ltd. Hong Kong |
|
Operator |
Stena Sonangol Suezmax Pool |
|
Registered owner |
Sonangol Rangel Limited |
|
Latest data adjustment |
05 August 2020 |
