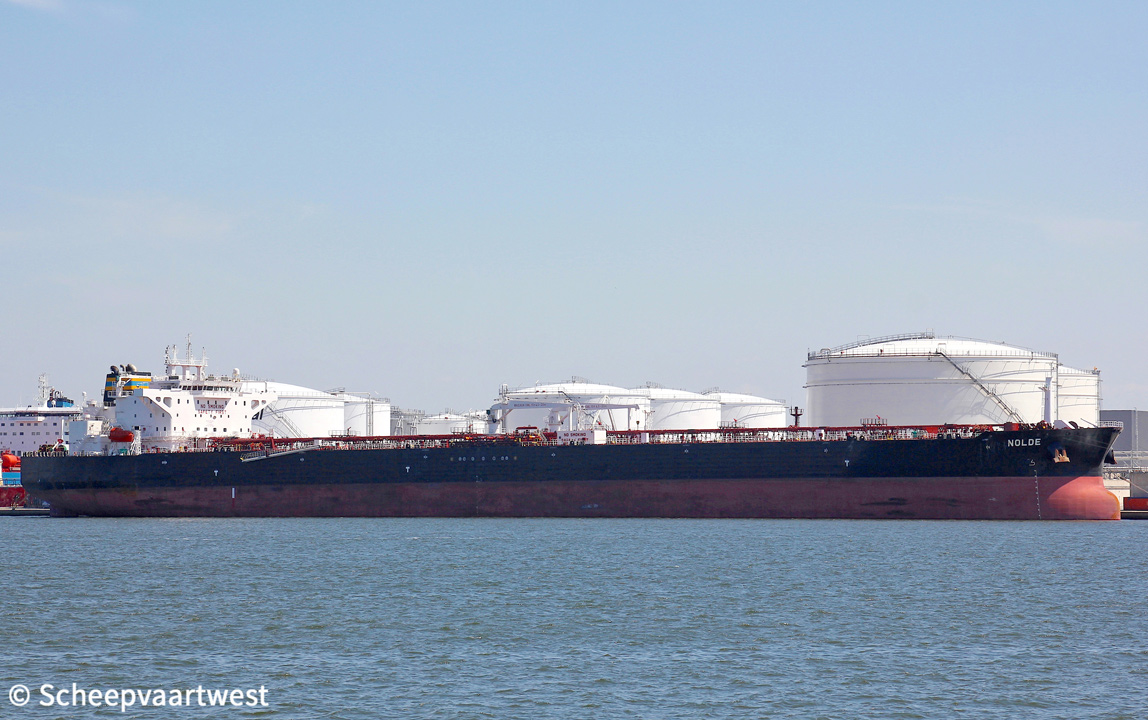

Nolde 01

Antwerpen 14 May 2019



Name

NOLDE

Type

Crude and oil products carrier

IMO-number

9787924

Call sign

9HA4630

Flag

Malta

Port of registry

Valletta

GT

64.321 t registered

Suez: 66.085,97 t

DWT

115.024,4 m³

NT

35.355 t registered

Suez: 61.026,39 t

Panama: 52.825 t

Displacement

134.845,1 t

Length

249,90 m overall

241,60 m between perpendiculars

Breadth

44,00 m moulded

Draught

Max: 15,00 m

Freeboard

6.516 mm

Depth

21,50 m moulded

Speed

Max: 15,1 knots

Built

2018

Keel laid

27/11/2015

Launch date

17/09/2017

Delivery date

12/07/2018

Builder

Jiangsu New Hantong Ship Heavy Industry Co. Ltd.

China

Wanfu Village, Baqiao Town, Yangzhong

212200 China

Yard number

HT-OT115-002

Hull material

Steel

Hull type

Double hull

Main engine

1x Doosan/B&W 6G60ME-C9.5-TII - 6 cylinder 600 x 2.790 mm combustion engine 12.400 kW / 16.864 bhp at 79,1 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co., Ltd.

Boilers

2x Auxiliary boiler - 18MPA

1x Fired exhaust gas boiler - 8 MPA

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 1.020 kW

Manufacturer: Taiyo Electric Co., Ltd.

Cargo tank capacity

134.173,0 m³

Pumps

3x Cargo pumps each 3.000 m³/h

Tank capacities

Fuel oil: 2.888,0 m³

Lub oil: 248,4 m³

Ballast: 39.633,7 m³

Fresh water: 567,9 m³

Diesel oil: 832,1 m³

Lifting equipment

1x Hose handling crane starboard - SWL 15,0 t

Manufacturer: Jiangsu Masada Heavy Industries Co., Ltd.

1x Overhead engine room crane - SWL 4,0 t

Manufacturer: Jiangyin Oya Marine Machinery Co., Ltd.

1x Provision crane port - SWL 4,0 t

1x Provision crane starboard - SWL 2,0 t

Manufacturer: Jiangsu Masada Heavy Industries Co., Ltd.

Crew size

30

Operator

TMS Tankers Ltd.

109, Kifissias Ave. & Sina str.

GR-151 24 Maroussi

Greece

Registered owner

Benedetta Owners Inc.

c/o TMS Tankers Ltd, Omega Building

80, Kifisias Avenue

151 25 Athens

Greece

Latest data adjustment

10 July 2020
