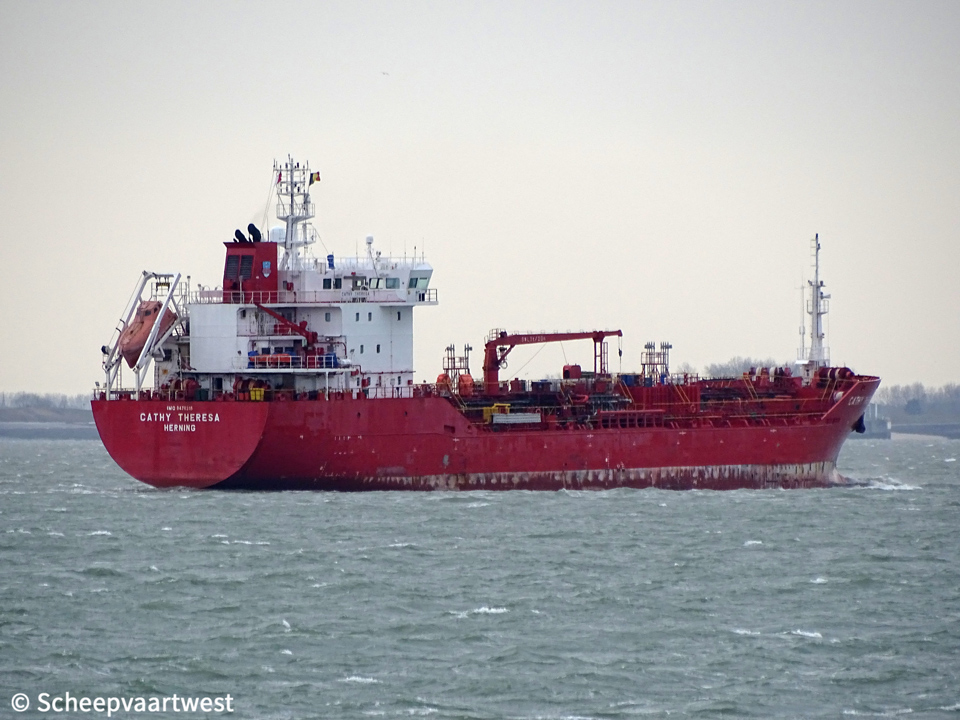

Cathy Theresa 01

Westerschelde 10 December 2019



Name

CATHY THERESA

Type

Chemical and oil product tanker

IMO-number

9478315

Call sign

OZEV2

Flag

Denmark

Port of registry

Herning

GT

5.706 t

DWT

Summer: 7.846 t

NT

2.278 t

Length

101,39 m overall

94,90 m between perpendiculars

Breadth

19,05 m

Draught

Max: 7,59 m

Freeboard

2.911 mm

Depth

10,50 m

Speed

12,0 knots

Built

2011

Date of completion

10/10/2011

Builder

Nantong Mingde Heavy Industry Stock Co.,Ltd.

Ligang Town, Tongzhou City

Jiangsu

China

Yard number

MD046-8000CT-08

Hull material

Steel

Hull type

Double hull

Watertight compartments

66

Continuous decks

1

Main engine

1x Berger B32:40L8 - 4 stroke 8 cylinder 320 x 400 mm combustion engine 4.000 kW / 5.435 hp at 750 rpm

Build: 03/05/2010

Builder: Rolls-Royce Marine AS, Engines Dpt Bergen, Hordvikneset 125, 5108 Hordvik - Norway

Propellers

1x Screw propeller controllable pitch - aft at 167 rpm

Boilers

1x CHM Aalborg 133,00 m² / 9,0 bar

1x CHO Aalborg 49,90 m² / 9,0 bar

Shaft generator

1.080 kW / 1.350 kVA

Generators

3x Main diesel generatorsets each 525 kVA - 420 kW - 611 hp

Emergency generator

1x Diesel generatorset 124 kVA - 99 kW - 177 hp

Bow thruster

394 kW

Number of cargo tanks

12

Cargo tank capacity

9.153 m³

Tank capacities

Fuel: 594,08 m³

Operator

Herning Shipping AS

Herning

Denmark

Registered owner

Christiania Shipping A/S

Amerika Plads 38

2100 København Ø

Denmark

Sister ships

05/2009 Annelise Theresa - IMO 9478286

Latest data adjustment

03 July 2020
