MSC Grandiosa 03

Rotterdam, The Netherlands 04 November 2019

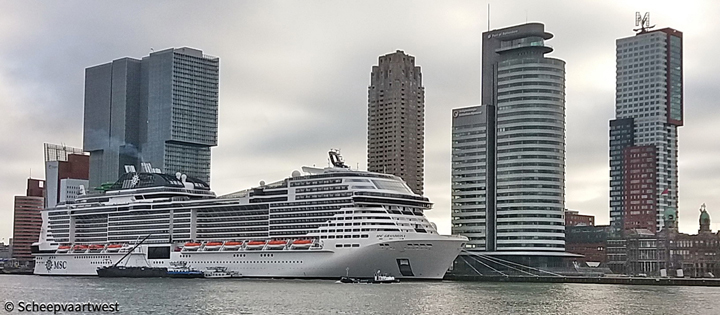

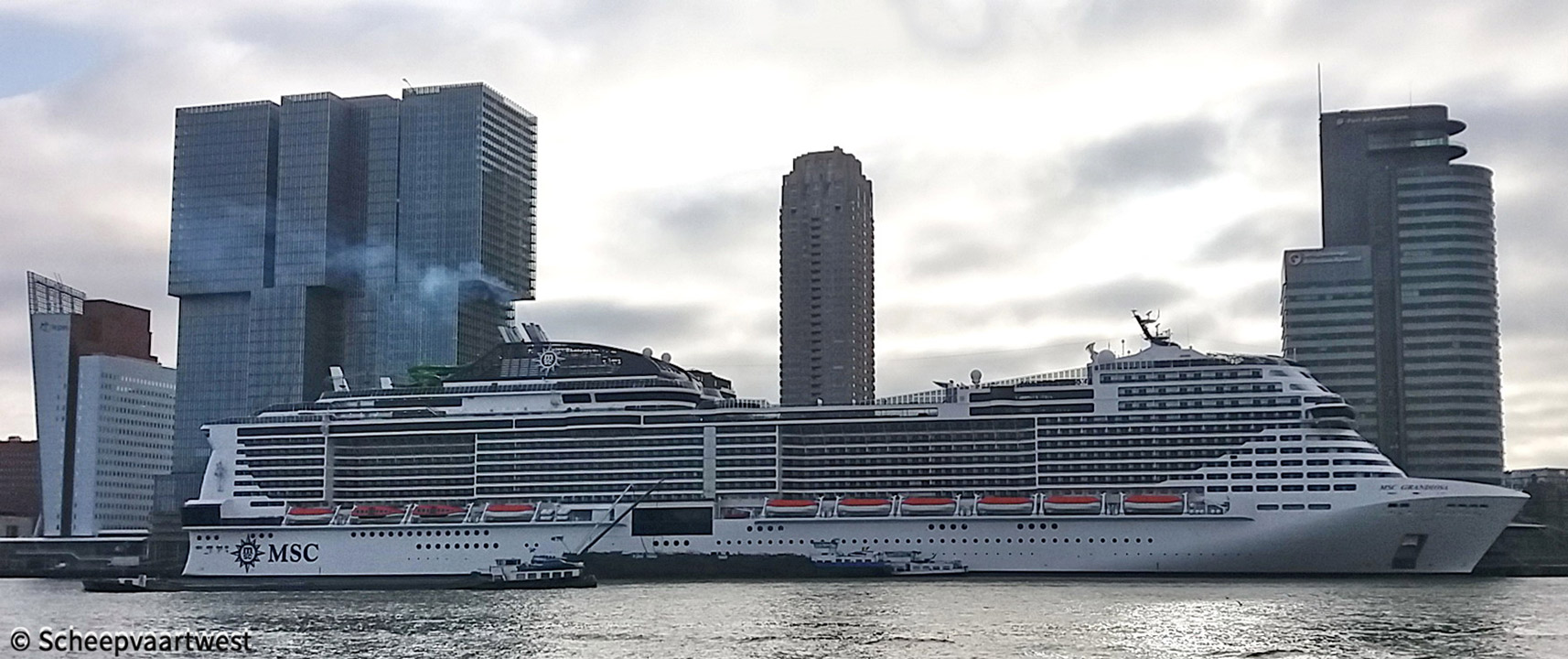

MSC Grandiosa 01   MSC Grandiosa 02
Rotterdam 04/11/2019 Rotterdam 04/11/2019


Name

MSC GRANDIOSA

Type

Passengers vessel - Cruise ship

IMO-number

9803613

Call sign

9HA5063

Flag

Malta

Port of registry

Valletta

GT

181.541 t

DWT

13.610 t

NT

172.605 t

Length

331,43 m overall

310,70 m between perpendiculars

Breadth

43,00 m

Draught

Max: 8,75 m

Air draft

65,00 m

Freeboard

3.289 mm

Depth

12,50 m

Speed

Max: 21,3 knots

Service: 18,0 knots

Built

2019

Keel laid

14/06/2018

Launch date

05/01/2019

Date of completion

31/10/2019

Builder

Chantiers de l'Atlantique

St. Nazaire

France

Yard number

G34

Hull material

Steel

Hull type

Double bottom

Watertight compartments

17

Main engine

Diesel/electric:

4x Diesel engines make Wärtsilä

2x 12 cylinder type 12V46F each 14.400 kW at 600 rpm

2x 16 cylinder type 16V46F each 19.200 kW at 600 rpm

Total installed power: 67.200 kW

Propellers

2x ABB pods power each 19.200 kW at 138 rpm

Total: 28.400 kW / 52.174 hp

Propelling type

Electrical

Builder: ABB Oy Marine & Port

Boilers

4x CHR 335,00 m² - 10,0 bar

2x CHO 158,00 m² - 11,0 bar

Generators

1x Diesel generatorset 2.525 kVA - 2.020 kW - 2.582 hp

Bow thruster

4x Tunnel thruster 3.500 kW / 4.759 bhp, forward

1x Tunnel thruster, aft

Number of decks

19

Passengers decks

15

Number of passengers

6.334

Tank capacities

Fuel: 4.256 m³

Crew size

1.704

Operator

MSC Crociere Spa

Via Agostino Depretis 31

80133 Naples NA

Italy

Registered owner

Vista 3 Compania Naviera SA.

Italy

Beneficial owner

MSC Crociere SA

Switzerland

Latest data adjustment

31 May 2020
