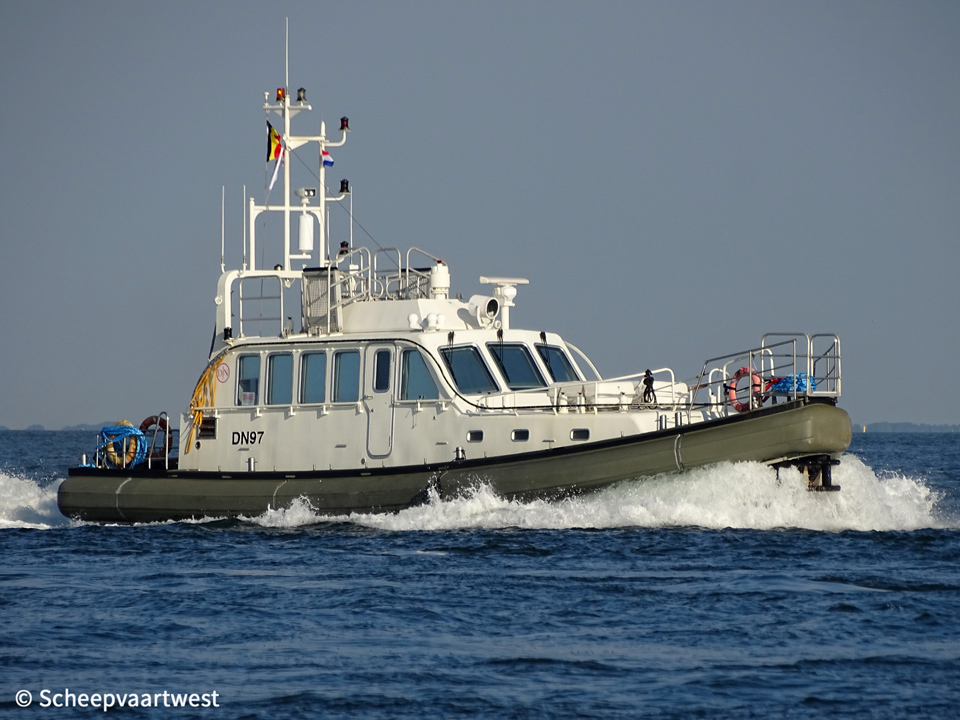

DN 97 12
Westerschelde 16 July 2018

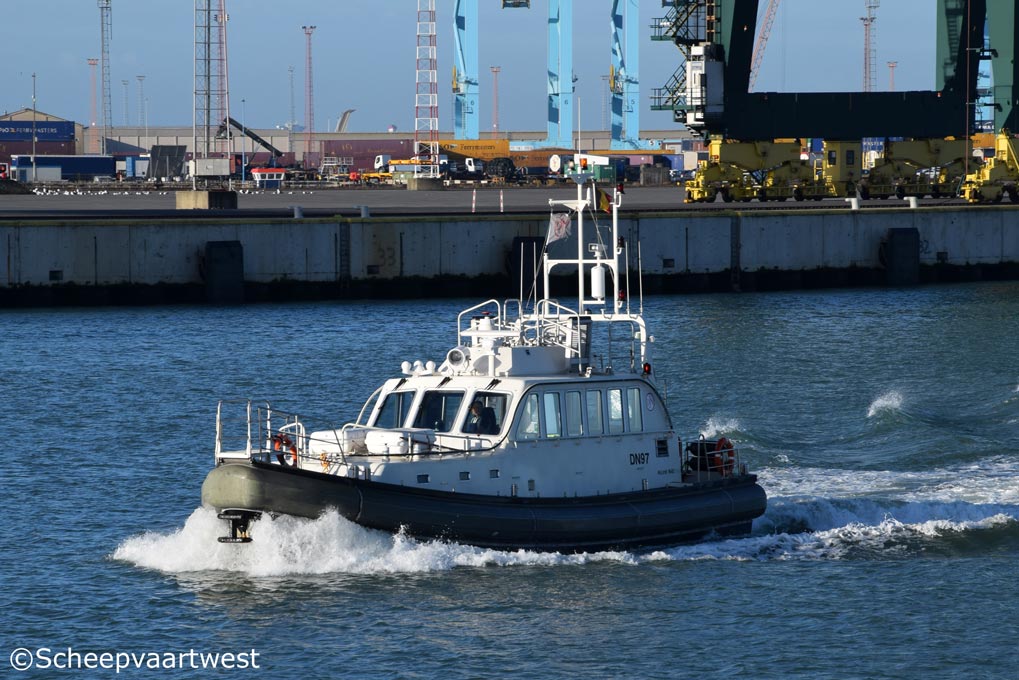

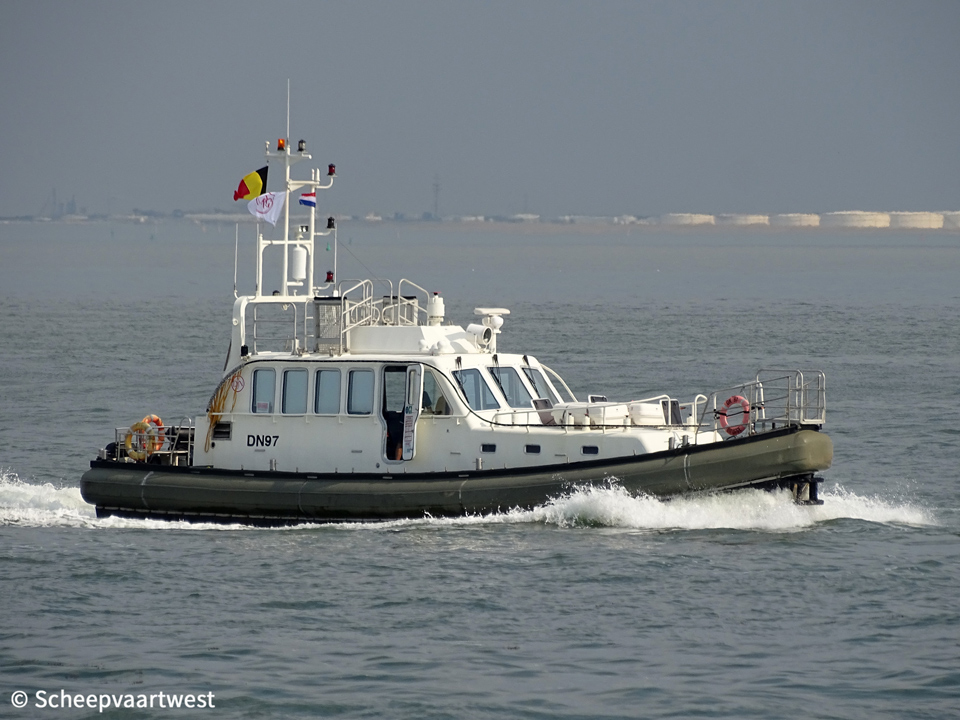

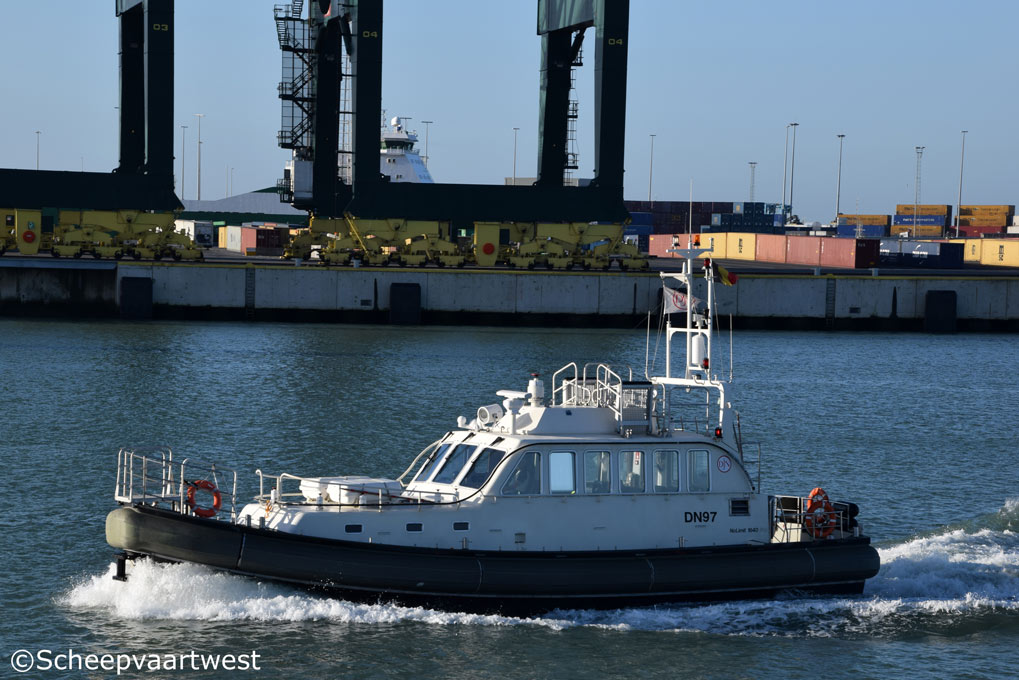

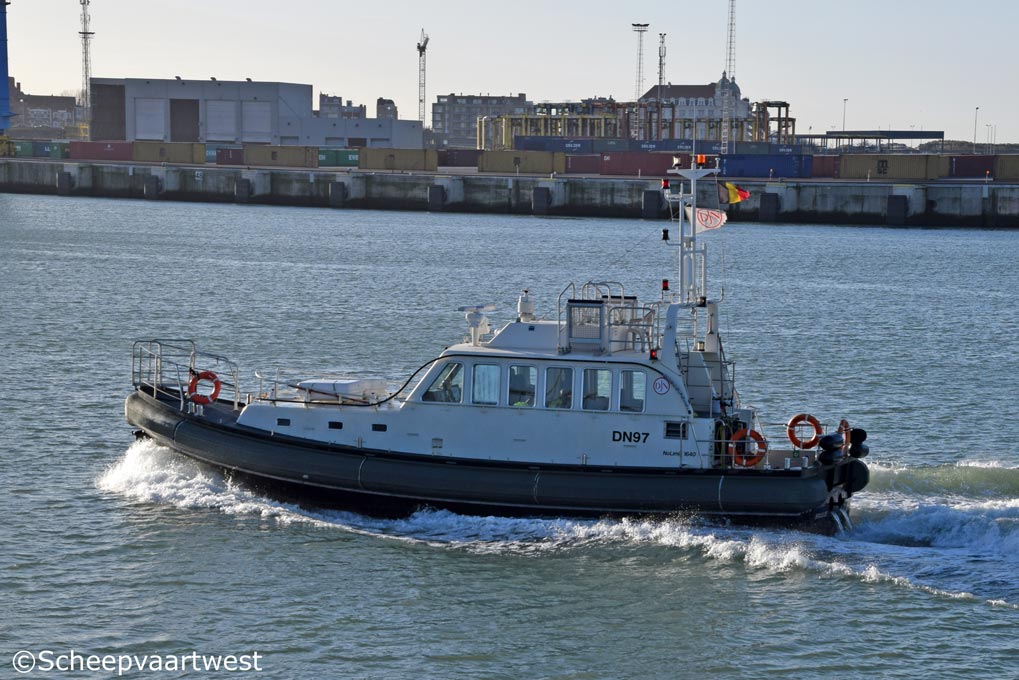

DN 97 11   DN 97 08   DN 97 06   DN 97 09
Westerschelde 16/07/18   Zeebrugge 08/01/16   Zeebrugge 08/01/16 Zeebrugge 08/01/16

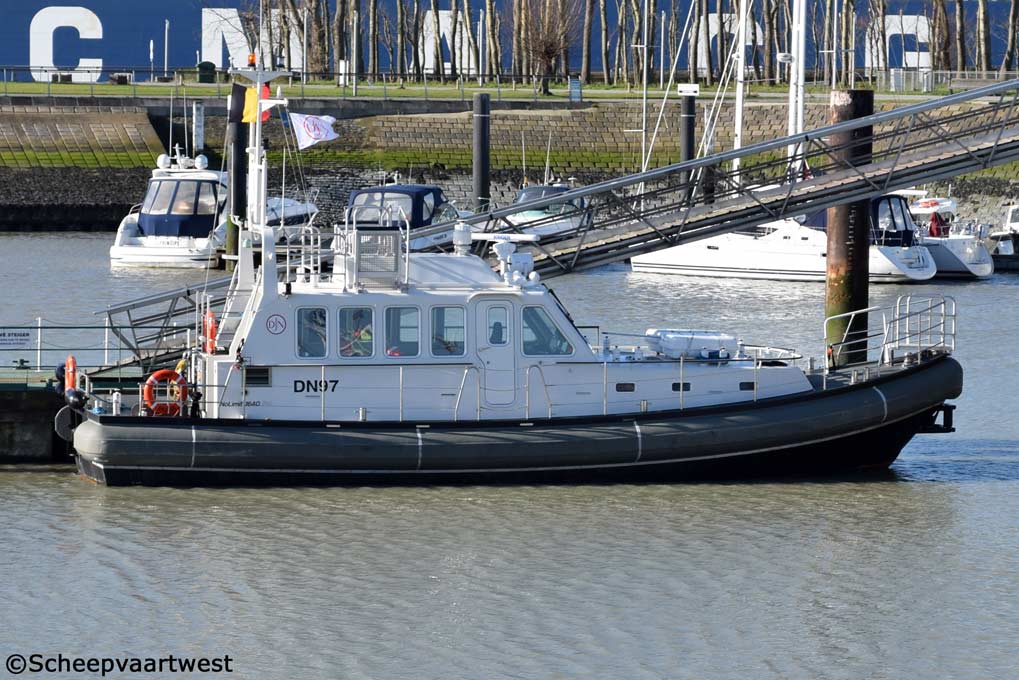

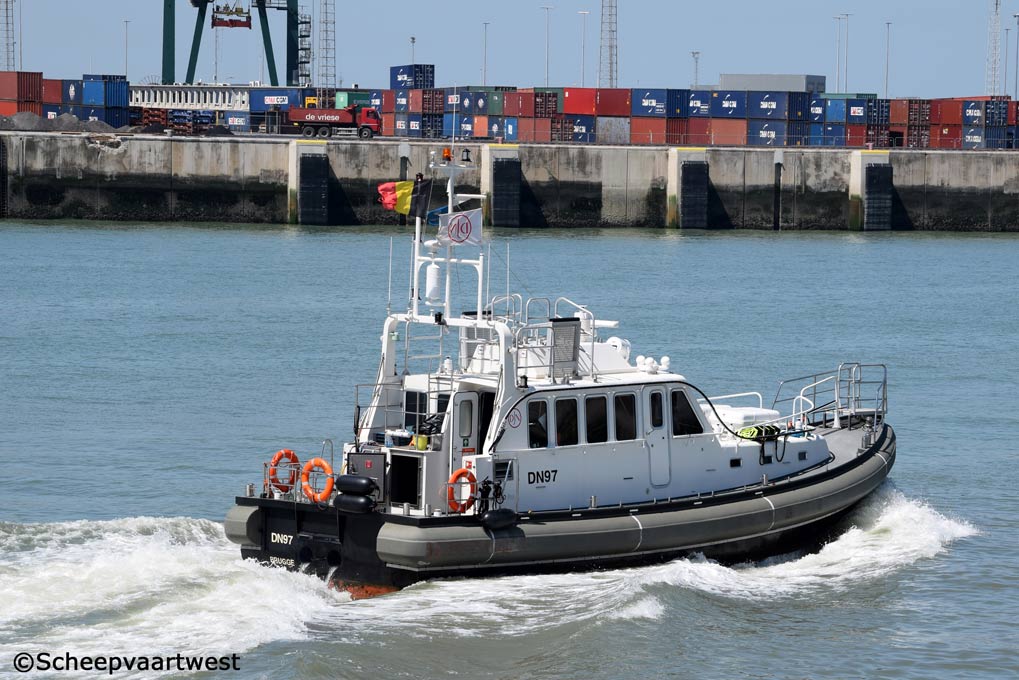

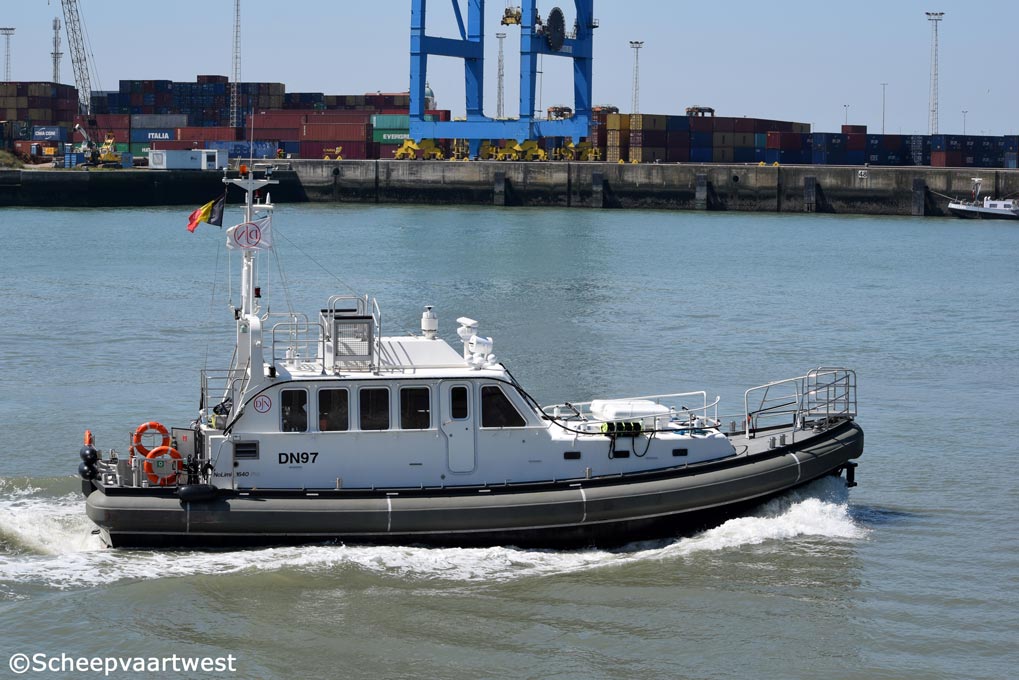

DN 97 05   DN 97 01   DN 97 03   DN 97 10
Zeebrugge 07/07/14   Zeebrugge 03/02/14   Zeebrugge 17/06/14   Westerschelde 18/07/18



Name

DN 97

Type

Crew tender

IMO-number

9692179

Call sign

ORRK

Flag

Belgium

Port of registry

Brugge

GT

36 t

NT

10 t

Length

16,40 m overall

13,93 m between perpendiculars

Breadth

5,25 m overall

4,33 m moulded

Draught

1,67 m

Depth

2,31 m

Speed

19,0 knots

Built

2013

Builder

No Limit Ships B.V.
Friesestraat 207-2
9743 AD Groningen
The Netherlands

Hull material

Steel

Main engine

2x Caterpillar C18 - 6 cylinder dieel engines each 500 kW at 2.100 rpm

Gearbox

ZF 500-1A, 7 degrees down angle

Propellers

2

Generators

1x Kohler 20 EFOZD diesel generatorset : 20 kW / 230V / 50Hz / 1 Ph

Fuel capacity

4.000 l

Crew

3

Owner

N.V. Onderneming Jan De Nul
Tragel 60
9308 Hofstade-Aalst
Belgium



Last data update

09 February 2014
