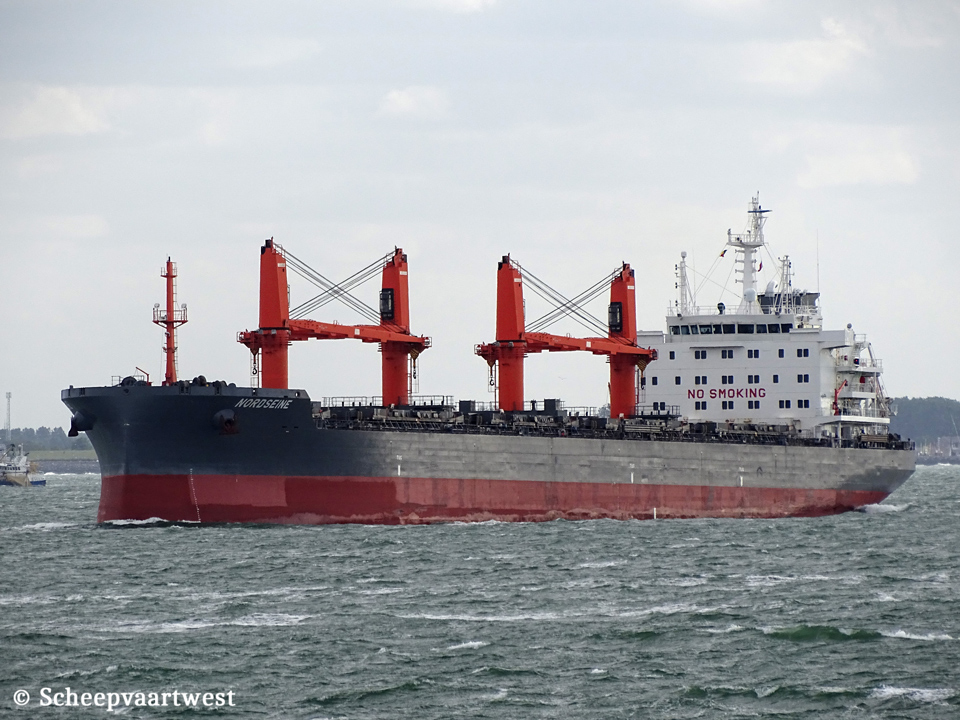

Nordseine IMO 9596052 02

Westerschelde 29 June 2020

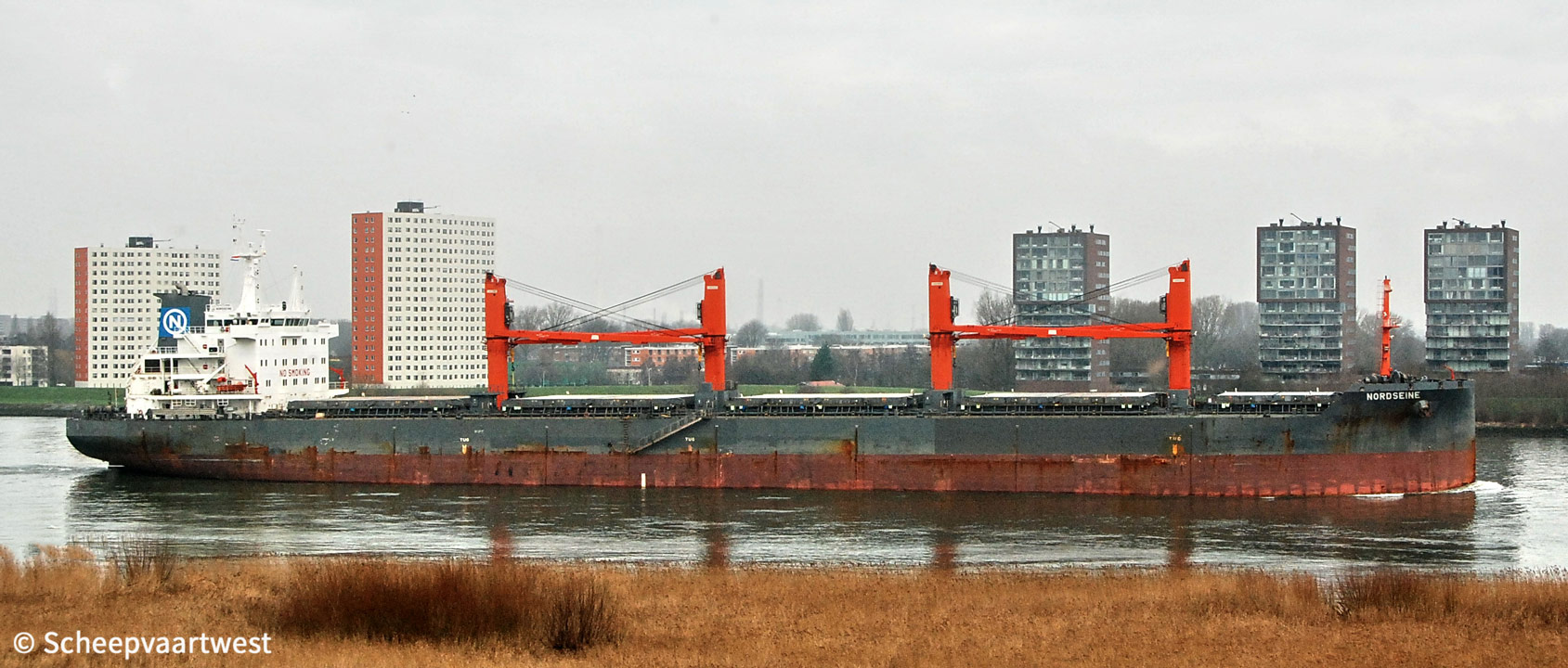

Nordseine 01
Spijkenisse, The Netherlands 23/01/20









Name

NORDSEINE

Type

Handysize bulk carrier - Strengthened for heavy cargoes

IMO-number

9596052

Call sign

9HA3825

Flag

Malta

Port of registry

Valletta

GT

23.975 t registered

DWT

Summer: 38.036 t

NT

12.919 t registered

Length

189,99 m overall

Breadth

28,30 m moulded

Draught

Max: 10,52 m

Moulded L x B x D

187,00 x 28,30 x 15,00 m

Registered L x B x D

187,00 x 28,30 x 15,00 m

Freeboard

Summer: 4.525 mm

Depth

15,00 m moulded

Speed

14,8 knots laden

Economical: 13,0 knots laden

Built

2015

Keel laid

29/11/2013

Launch date

15/11/2014

Date of completion

23/03/2015

Builder

Zhejiang Ouhua Shipbuilding Co., Ltd.

Zhoushan ZJ

China

Yard number

615

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W 5G50ME-B9 - 2 stroke single acting 5 cylinder 500 x 2.500 mm combustion engine 6.575 kW / 8.939 hp at 95,8 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 470 mm

Propellers

1x Fixed pitch propeller - Aft at 95,8 rpm

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 1,85 t/h

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Daihatsu 6DE-18 - 4 stroke 6 cylinder 185 x 280 diesel engines each 680 kW connected with generators each 635 ekW / 450 Volt 50 Hz

Number of holds

5

Cargo hold capacity

Grain: 47.742,2 m³

Bale: 46.391,6 m³

Number of hatches

4

Max permitted loads

Tanktop: 22,0 t/m²

Tank capacities

Fuel oil: 1.392 m³

Fresh water: 321 m³

Cargo gear

4x MacGregor electro-hydraulic deck cranes - SWL 30,0 t each

Crew size

21

Commerical manager

Reederei Nord GmbH

Astraturm

Zirkusweg 2

20359 Hamburg

Germany

Registered owner

Nordseine Shipping Company Limited

Latest data adjustment

12 August 2021
