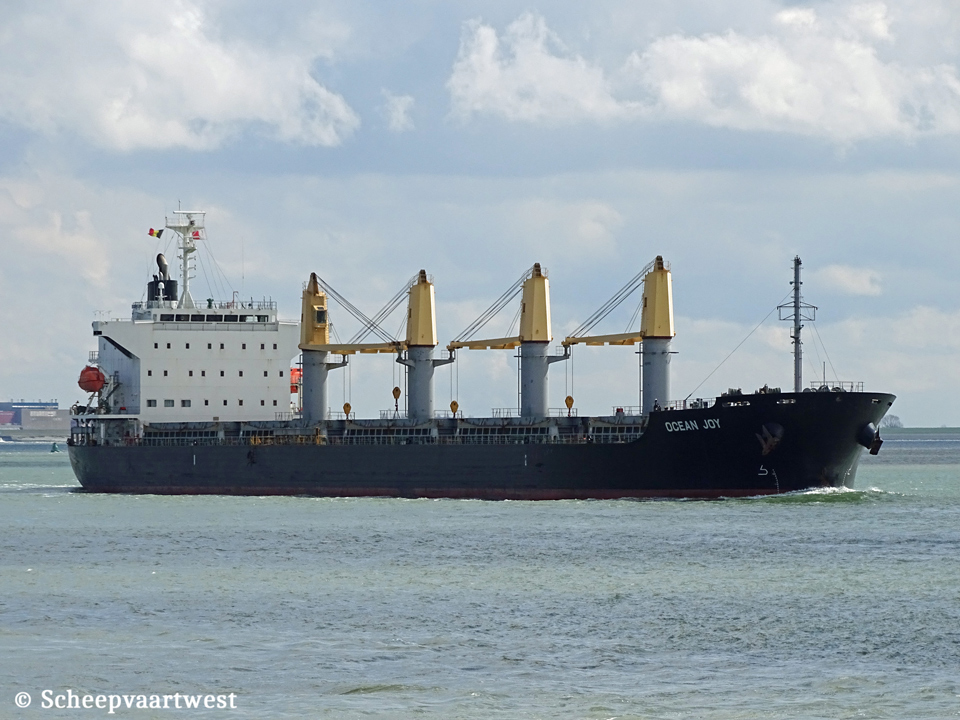

Ocean Joy IMO 9668300 02

Westerschelde 03 April 2019

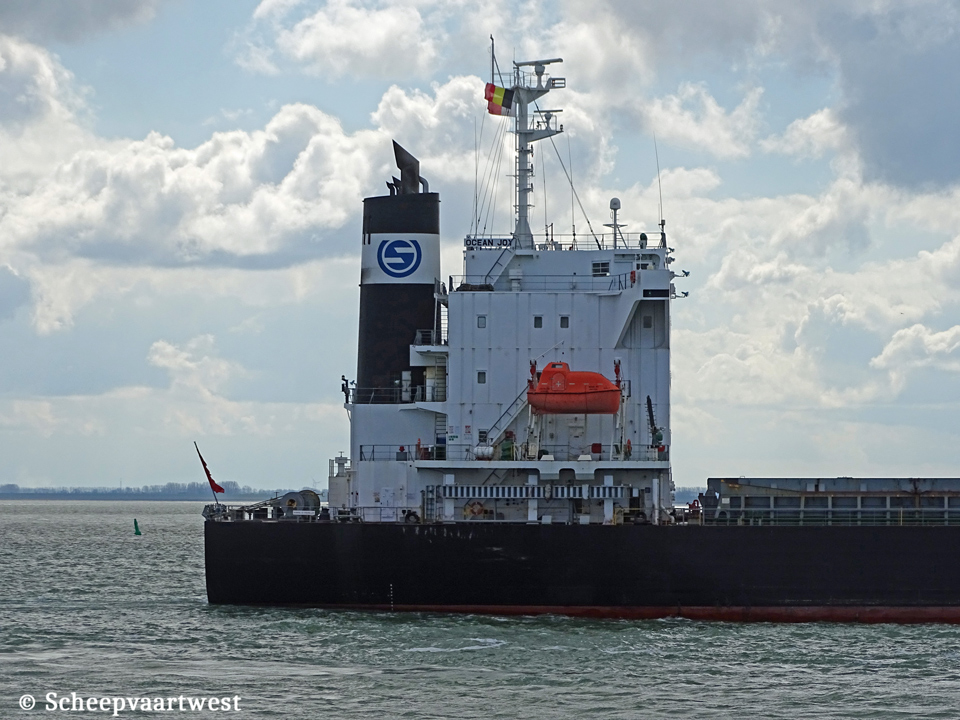

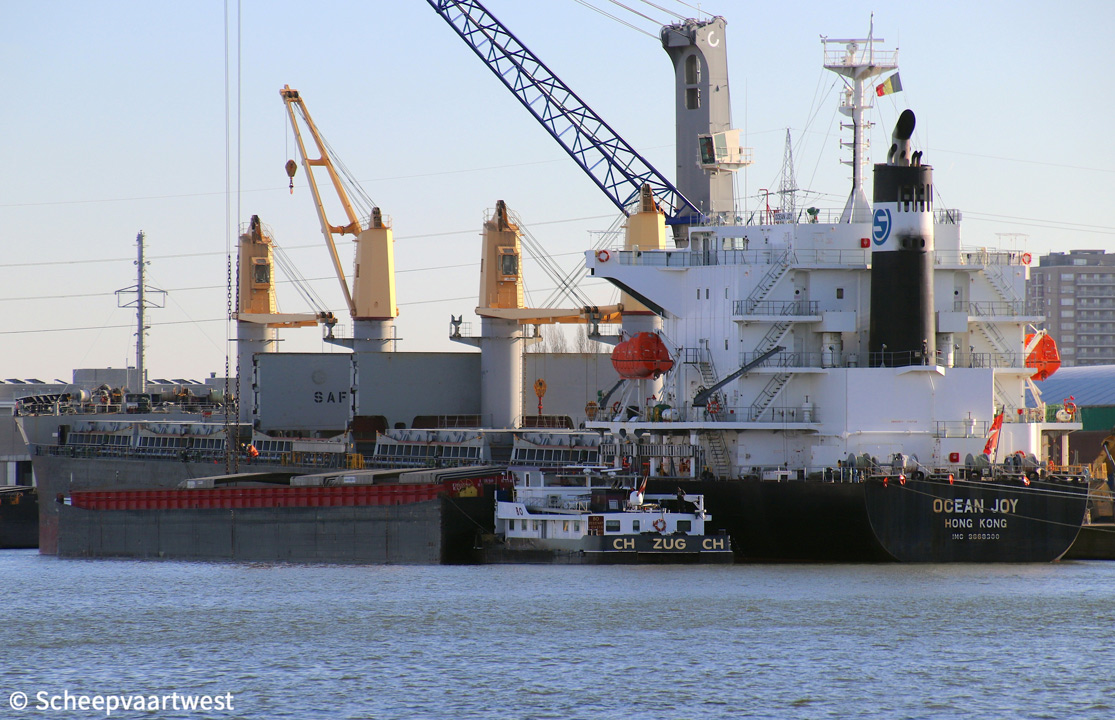

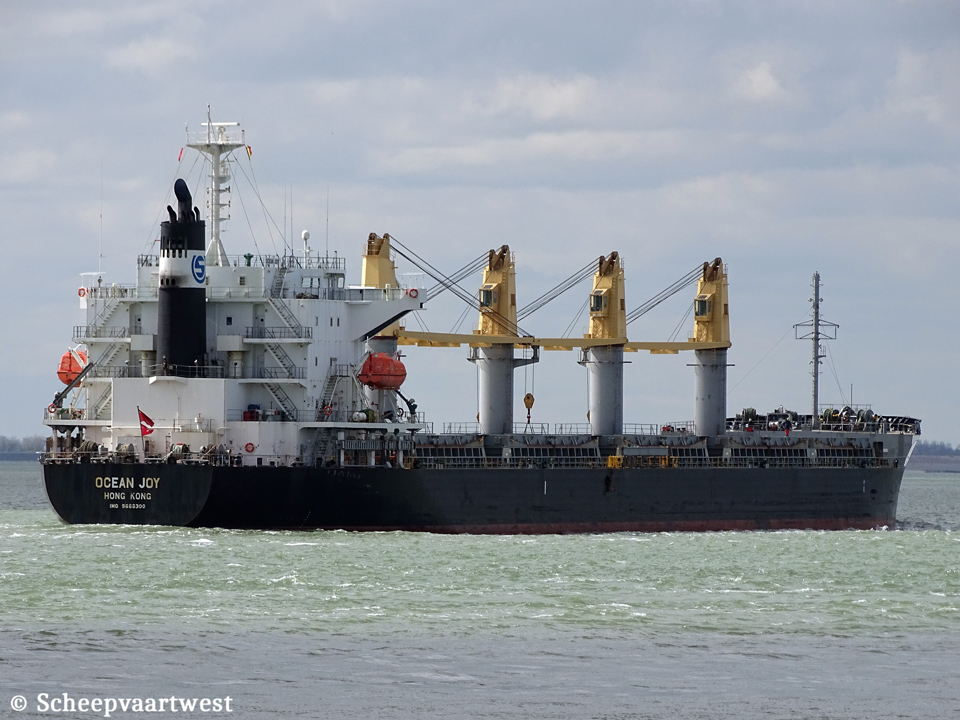

Ocean Joy IMO 9668300 04   Ocean Joy IMO 9668300 03   Ocean Joy 01
Westerschelde 03/04/19 Westerschelde 03/04/19 Antwerpen 16/01/20









Name

OCEAN JOY

Type

Bulk carrier - Strengthened for heavy cargo - Handymax

IMO-number

9668300

Call sign

VRMN2

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

23.268 t registered

DWT

Summer: 38.114 t

NT

12.134 t registered

Length

179,97 m overall

Breadth

29,80 m moulded

Draught

Max: 10,54 m

Moulded L x B x D

173,00 x 29,80 x 15,00 m

Registered L x B x D

173,52 x 29,80 x 15,00 m

Freeboard

4.500 mm

Depth

15,00 m moulded

Speed

Max: 16,2 knots

Service: 14,7 knots

Built

2013

Keel laid

28/03/2013

Launch date

15/07/2013

Date of completion

24/06/2013

Builder

Imabari Zosen Shipbuilding Co., Ltd.

Japan

Yard number

820

Hull material

Steel

Hull type

Double hull

Watertight compartments

9

Continuous decks

1

Main engine

1x Makita/B&W 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 7.040 kW / 9.572 hp at 129,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 450 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler: 8,0 bar

Evaporation: 1,95 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Main diesel generatorsets each 550 kVA - 440 kW - 679 hp

Emergency generator

1x Diesel generatorset 65 kVA - 52 kW - 111 hp

Number of holds

5

Cargo hold capacity

Bale: 45.369 m³

Grain: 47.125 m³

Number of hatches

5

Tank capacities

Fuel oil: 1.946 m³

Fresh water: 294 m³

Lifting equipment

2x Provision crane - SWL 0,9 t each

1x Provision crane - SWL 2,0 t

Cargo gear

4x Deck cranes - SWL 30,7 t each

Commerical manager

United Ocean Shipping SA

11th Floor, 129-3, Zhongshan N Road, Section 2, Zhongshan District, Taipei City, 10448, China

Republic of (Taiwan)

ISM manager

Prosperity Steamship Co., Ltd.

Ground Floor, Tai Fat Building

43, Ko Shing Street, Sai Ying Pun, Western

Hong Kong

Registered owner

Ocean Joy SA

Care of United Ocean Shipping SA , 11th Floor, 129-3, Zhongshan N Road, Section 2, Zhongshan District, Taipei City, 10448, China

Republic of (Taiwan)

Latest data adjustment

22 July 2021
