Interlink Quality 01

Antwerpen 29 January 2020



Name

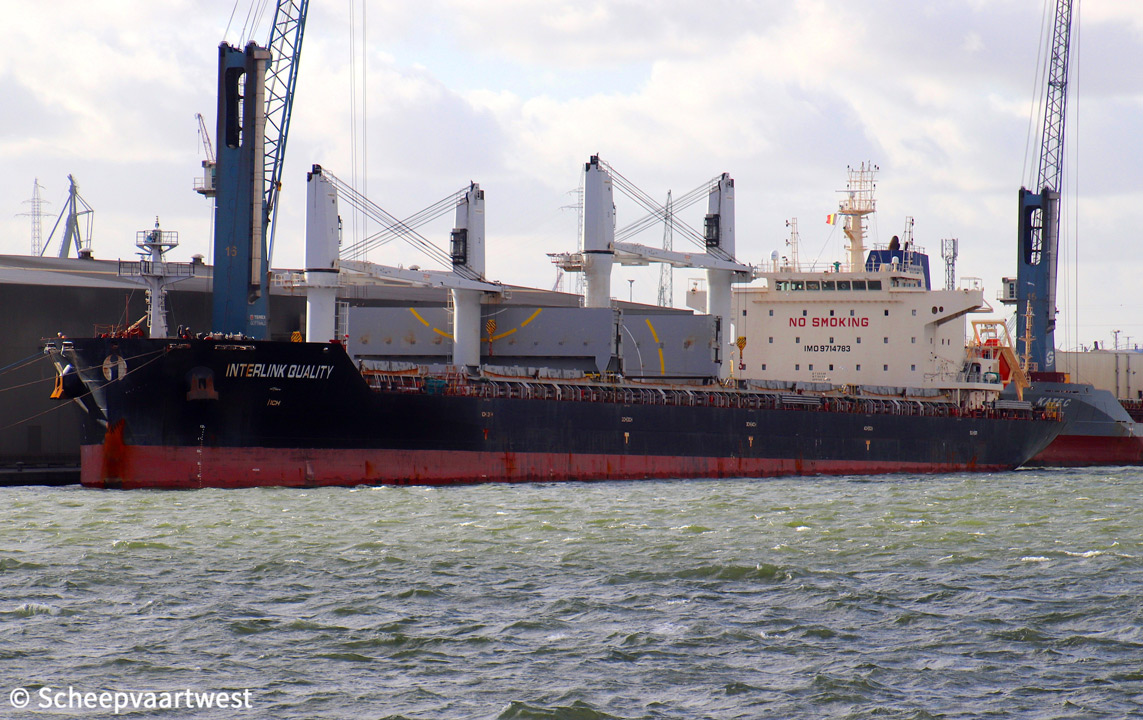

INTERLINK QUALITY

Type

Bulk carrier - Carriage of dangerous goods - Strengthened for the carriage of heavy cargoes

Products

Coal, bauxite, phosphates, iron ore, coke, grain including soya, soya bean meals, salt, sugar, fertilizers, steel products (sheet, rolls, coils, pipe), forest products in holds, bagged cargoes like cement and cargoes

IMO-number

9714783

Call sign

V7GF7

Flag

Marshall Islands

Port of registry

Majuro

GT

25.546 t registered

DWT

38.717,15 t

NT

13.033 t registered

Displacement

48.863,3 t

Length

179,95 m overall

177,00 m between perpendiculars

Breadth

32,00 m moulded

Draught

Max: 9,50 m

Air draft

31,20 m full load conditions

Freeboard

4.535 mm

Depth

15,00 m moulded

Speed

Service 13,7 knots

Built

2016

Keel laid

26/06/2014

Delivery date

01/03/2016

Builder

Huatai Heavy Industry (Nantong) Co., Ltd.

No. 2 Wenjin Road Changjiang Town

Rugao

Jiangsu

China

Yard number

H0020

Hull material

Steel

Hull type

double skin

Main engine

1x MAN-B&W/Yichang Marine S50ME-B9.3 - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.100 kW at 99,0 rpm

Manufacturer: Yichang Marine Diesel Engine Co., Ltd.

Propellers

1x Fixed pitch propeller - 4 blades

Boilers

1x Composite boiler - 8,0 bar

Manufacturer: Kangrim

Generators

3x Daihatsu 6KD-20e - 6 cylinder 200 x 300 mm combustion engines each 770 kW at 720 rpm connected with generators HF6 504-14K each 700 kW

Manufacturer: Anqing CSSC Diesel Engine Co., Ltd. / Zhenjiang China Marine-Xiandai Generating Co., Ltd.

Emergency generator

1x Diesel generatorset 120 kW

Number of cargo holds

5

Hold 1: 25,50 x 19,50/4,25 m Breadth tapered

Hold 2: 28,70 x 27,00 m

Hold 3: 26,30 x 27,00 m

Hold 4: 27,90 x 27,00 m

Hold 5: 28,00 x 4,50/25,00 m Breadth tapered

Cargo hold capacity

Grain: 50.500 m³

Bale: 49.400 m³

Cargo hold ventilation

Explosion proof exhaust fans at 6 air changes per hour

Number of hatches

5

Pumps

2x Electric motor driven centrifugal ballast pumps each 700 m³/h

Max permitted loads

Upper deck hatch cover:

Uniform load: 3,0 t/m²

Upper deck:

Outside line of opening: 2,5 t/m²

Inside line of opening : 2,5 t/m²

Tanktop:

Uniform load: 25,0 t/m²

Tank capacities

Lub oil: 114,48 m³

Ballast: 18.335,71 m³

Fresh water: 569,47 m³

Diesel oil: 60,85 m³

Fuel oil: 1.305,28 m³

Lifting equipment

1x Engine room crane - SWL 3,2 t

Manufacturer: Jiangyin Jianghai Mechanical Manufacture Co., Ltd.

1x Provision crane - SWL 4,0 t

manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd.

Cargo gear

4x MacGregor deck cranes - SWL 30,0 t each

Accommodation

Complement:

Captain class 2

Senior Officer class 2

Junior Officer class 6

Rating class 13

Owner, Pilot 2

Total 25

Gymnasium fitted for 6 Suez crew

Life saving equipment for persons 25

Manager

Interlink

Par-La-Ville Road

Hamilton HM11

Bermuda

Registered owner

Soar Great Limited

Latest data adjustment

02 May 2020
