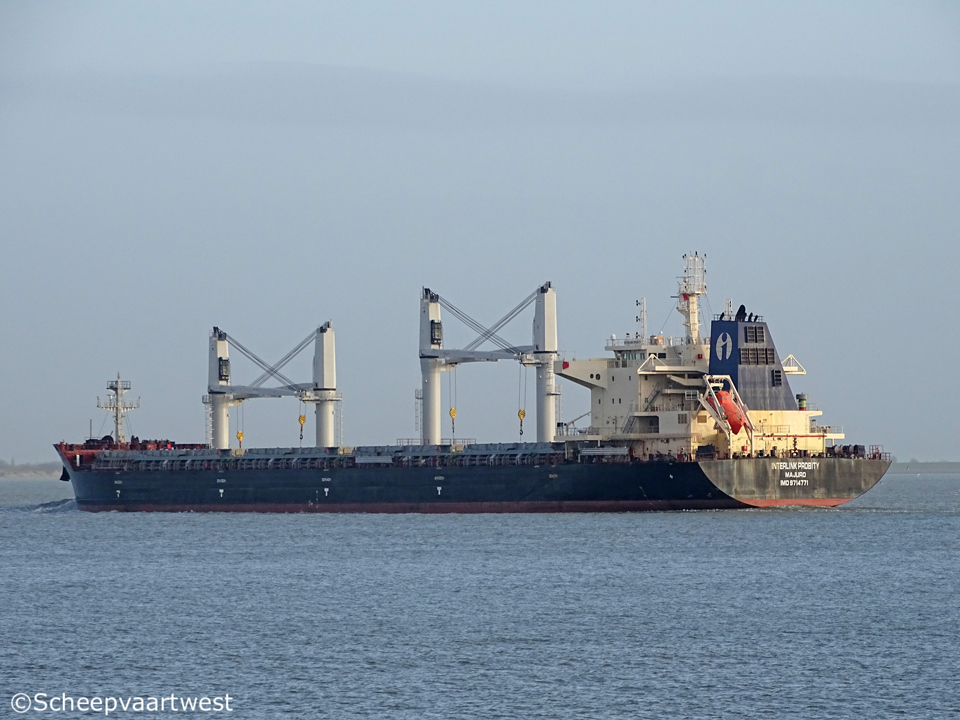

Interlink Probity 01

Westerschelde 18 December 2017



Name

INTERLINK PROBITY

Type

Bulk carrier - open hatch, box shaped

Main products

Dry bulk and break bulk cargo, such as coal, bauxite, phosphates, iron ore, coke, grain including soya, soya bean meals, salt, sugar, fertilizers, steel products (sheet, rolls, coils, pipe), forest products in holds, bagged cargoes like cement and cargoes

IMO-number

9714771

Call sign

V7GF6

Flag

Marshall Islands

Port of registry

Majuro

GT

25.546 t registered

DWT

Summer: 38.635,4 t

NT

13.024 t registered

Length

179,95 m overall

177,00 m between perpendiculars

Breadth

32,00 m moulded

Draught

10,50 m

Air draft

31,20 m n full load conditions

Freeboard

4.540 mm

Depth

15,00 m moulded

Speed

Service: 13,7 knots fully loaded

Max: 16,1 knots

Built

2015

Keel laid

26/06/2014

Delivery date

30/10/2015

Builder

Huatai Heavy Industry Co., Ltd.
Nantong
China

Yard number

h0019

Hull material

High strength steel

Hull type

Double hull

Watertight bulkheads

7

Main engine

MAN 5S50ME-B9.3 - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.100 kW at 99,0 rpm

Manufacturer: Yichang Marine Diesel Engine Co Ltd.

Propellers

1

Boilers

1x Composite boiler - 8,0 bar

Manufacturer: Kangrim

Generators

3x Main diesel generatorsets each 700 kW

Manufacturer: Zhenjiang China Marine Xiandai Generationg Co., Ltd.

Number of holds

5

No.1: 25,50 x 19,50/4,25 m breadth tapered

No.2: 28,70 x 27,00 m

No.3: 26,30 x 27,00 m

No.4: 27,90 x 27,00 m

No.5: 28,00 x 4,50/25,0 m breadth tapered

Cargo hold capacity

Grain: 50.500 m³

Bale: 49.400 m³

Cargo hold ventilation

Explosion proof exhaust fans at 6 air changes per hour

Number of hatches

No.1 Hatch: 9,60/6,40 m (l) x 20,80/16,20 m (w)

No.2-5 Hatches: 20,00 m (l) x 27,00 m (w)

Pumps

2x Electric motor driven centrifugal ballast pumps each 700 m³/h

Number of tanks

Ballast: 20

Fuel oil: 12

Lubricating oil: 8

Fresh water: 6

Waste water: 3

Chain: 2

Diesel oil: 2

Sludge: 2

Sea water: 1

Sewage: 1

Slop:1

Tank capacities 100%

Diesel Oil: 60,85 m³

Freshwater 569,47 m³

Fuel Oil: 1.376,28 m³

Lube Oil: 114,48 m³

Tank Ballast: 18.320,41 m³

Lifting equipment

1x Engine room crane – SWL 3,2 t

Manufacturer: Jiangyin Jianghai Mechanical Manufacture Co., Ltd.

1x Provision crane – SWL 4,0 t

Manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd.

Cargo gear

4x MacGregor cranes – SWL 30,0 t each

Un-laden grab weight: 20 t

Accommodation

Captain class: 2

Senior Officer class: 2

Junior Officer class: 6

Rating class: 13

Owner, Pilot: 2

Total: 25

Gymnasium fitted for 6 Suez Crew

Manager

Interlink
Hamilton
Bermuda

Operator

Probity Maritime LLC
C/O Bernhard Schulte Shipmanagment (Hong Kong) Ltd.

2602 K Wah Centre, 191 Java Road

North Point

Hong Kong

Owner

Interlink Maritime Corp.
58 Par-La-Ville Road
Hamilton HM11
Bermuda

Registered owner

Soar Great Limited

Latest data adjustment

10 October 2018
