Westerschelde 07 August 2019 |
|
Name |

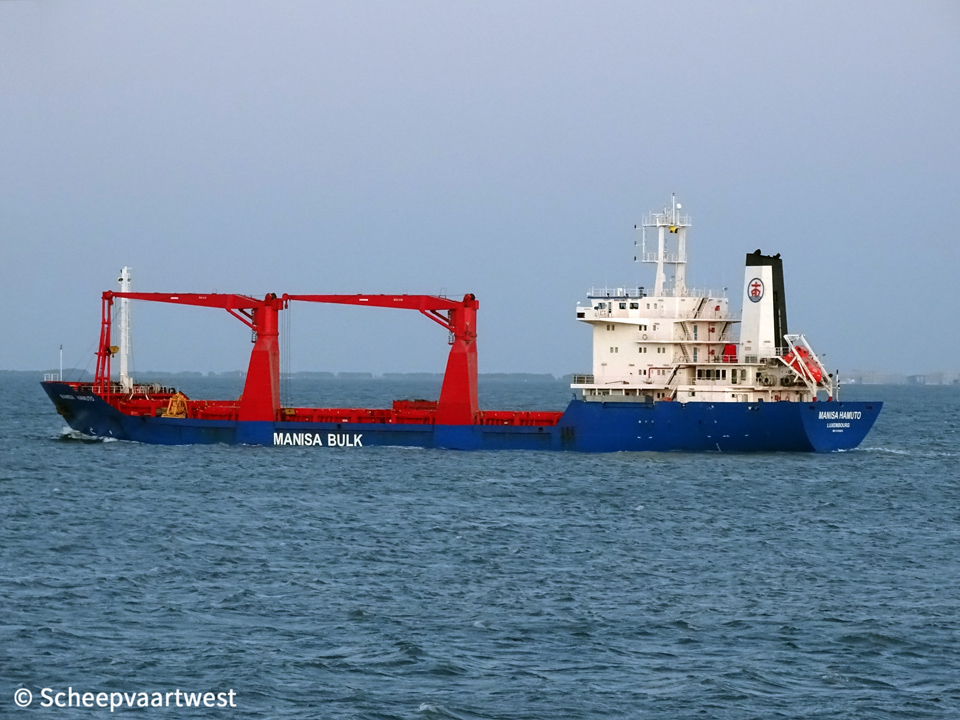

MANISA HAMUTO |
|
Previous names |
2005 Build as: Talon I 09/2005 - 12/2018 Faruk Kaan |
|
Type |
Multi-purpose cargo ship |
|
IMO-number |
9165865 |
|
Call sign |
LXMO |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxembourg City |
|
Previous flags |
2005 - 2018 Marshall Islands, Majuro - Call sign: V7IX2 2018 - 2019 Barbados, Bridgetown - Call sign: 8PAQ2 |
|
GT |
7.738 t registered |
|
DWT |
Summer: 10.400 t |
|
NT |
3.387 t registered |
|
Number of 20ft containers |
520 |
|
Reefer points |
30 |
|
Length |
126,09 m overall 114,55 m between perpendiculars |
|
Breadth |
20,00 m |
|
Draught |
Summer: 8,40 m |
|
Depth |
10,40 m moulded |
|
Speed |
Max: 15,0 knots Service: 13,8 knots |
|
Built |
2005 |
|
Builder casco |
Bulyard Shipbuilding Industry AD Varna Bulgaria Yard number: 286 |
|
Builder completion |
Anadolu Deniz Insaat Kizaklari San. Ve Tic. Ltd.St Tuzla Turkey Yard number: 201 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Main engine |
1x Cegielski/MAN-B&W 8L35MC - 2 stroke8 cylinder combustion engine 4.790 kW / 6.512 hp |
|
Propellers |
1x Fixed propeller |
|
Shaft generator |
1x 250 kW |
|
Generators |
3x Main diesel generatorsets each 384 kW |
|
Bow thruster |
1x 375 kW |
|
Number of holds |
3x Box holds Hold 1: L : From Tanktop to 4,70 m height length is 14,15 m L : From 4,70 m height upright lenght is 17,65 m H : 10,62 m B (Fore) : 2,90 m B (Aft) : 13,10 m Hold 2: L : 31,50 m / H 10,75 m / B : 15,5, m Hold 3: From Tank Top to 5,62 m height length is 30,00 m L : From 7,12 m to upright length is 31,50m / H : 10,75 m / B : 15,50 m |
|
Cargo hold capacity |
Grain: 11.834 m³ Bale: 11.542 m³ |
|
Number of hatches |
3 Hatch 1: 12,75 x 9,00 m Hatch 2: 25,50 x 15,50 m Hatch 3: 25,50 x 15,50 m |
|
Hatch type |
Mc. Gregor folding type |
|
Max permitted loads |
Tanktop: 15,0 t/m² |
|
Cargo gear |
2x Cranes - SWL 45,0 t, located portside Grabs: 2x 10 m³ |
|
Manager |
MB Manisa Bulk Via Riviera di Chiaia 215 80121, Naples Italy |
|
Latest data adjustment |
16 March 2020 |
