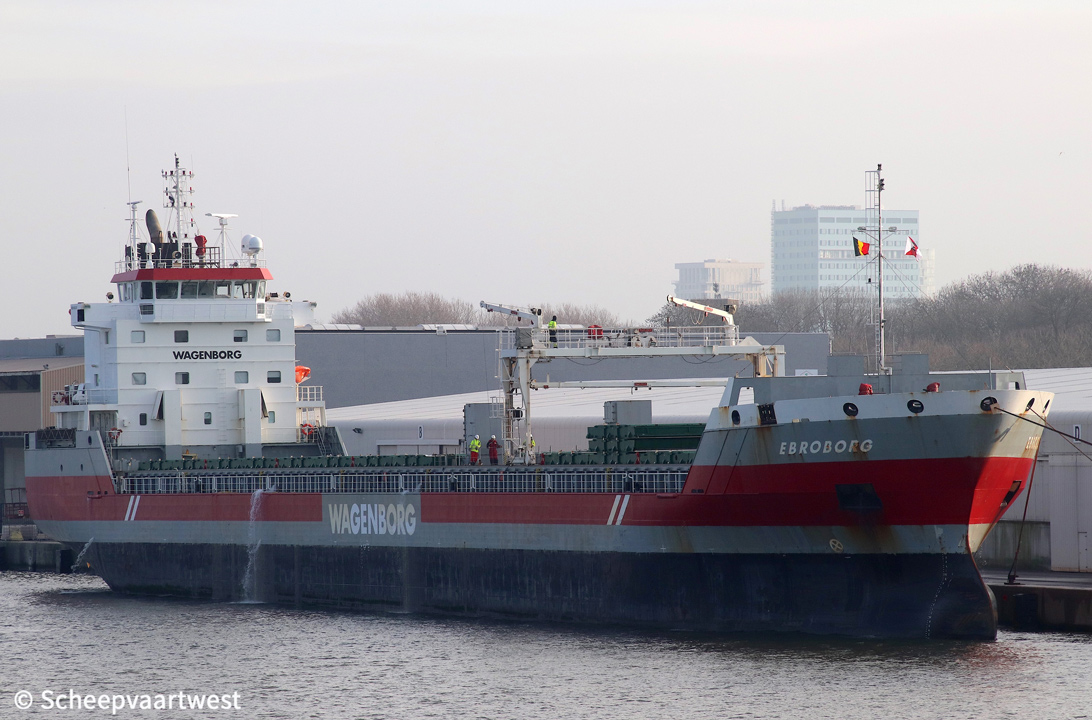

Ebroborg 02

Antwerpen 31 December 2019

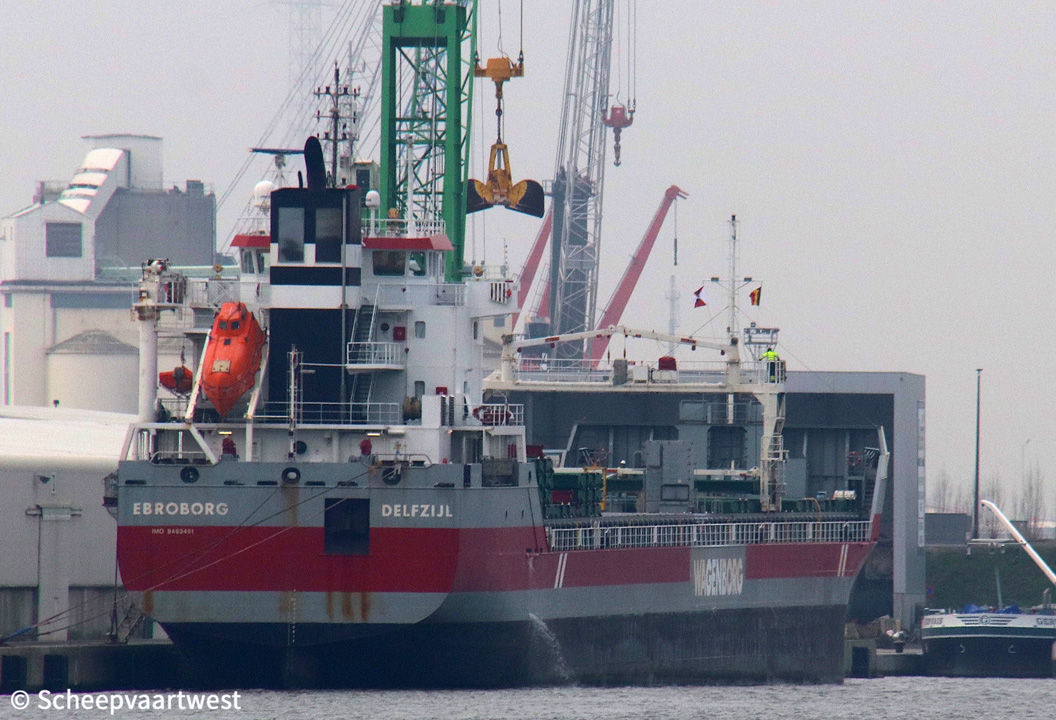

Ebroborg 01
Antwerpen 31/12/19













Name

EBROBORG

Type

General cargo - heavycargo / Container ship

Box shaped/ Single-decker

IMO-number

9463451

Call sign

PCGH

Flag

The Netherlands

Port of registry

Delfzijl

GT

7.196 t

DWT

Summer: 10.750 t

DWCC

Summer: 10.200 t

NT

3.607 t

Number of 20ft containers

432

Length

137,84 m overall

130,89 m between perpendiculars

Breadth

15,87 m

Draught

Max: 7,98 m

Air draft

30,63 m in ballast

Freeboard

2.733 mm

Depth

11,00 m

Speed

Max: 13,7 knots

Built

2010

Keel laid

09/09/2008

Launch date

23/09/2010

Date of completion

03/12/2010

Builder

Royal Niestern Sander BV

Delfzijl

The Netherlands

Yard number

841

Hull material

Steel

Continuous decks

1

Main engine

1x Wärtsilä 9L32C - 4 stroke single acting 9 cylinder 320 x 400 mm combustion engine 4.500 kW / 6.114 bhp at 750 rpm

Builder: Wärtsilä Finland OY, Vaasa - Finland

Propellers

1x Screw propeller controllable pitch - aft at 151 rpm

4 blades - Diameter 4.200 mm

Boilers

1x CHO 26,20 m² - 10,0 bar

1x CHR 59,00 m² - 10,0 bar

Generators

2x Main diesel generatorsets each 330 kVA - 264 kW - 380 hp

Emergency generator

1x Diesel generatorset 140 kVA - 112 kW - 194 hp

Bow thruster

700 kW

Number of holds

2x Both holds are open hatch, no understow, double skinned. Holds are fully box and square except box structures in fore and aft part due to vessel's outer shape

Hold 1: 41,44 x 13,20 x 11,23 m

Hold 2: 54,76 x 13,20 x 11,23 m

Total capacity of holds

Grain & bale: 13.644 m³ / 481.837 ft³

Hold ventilation

Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with de humidifier system

Number of hatches

2

Hatch 1: 41,44 x 13,20 m

Hatch 2: 54,76 x 13,20 m

Hatch type

Coops & Nieborg pontoon hatchcovers.

Tank capacities

HFO: 876 m³

MGO: 86 m³

Water ballast: 4.222 m³

Fresh water: 56 m³

Manager

Wagenborg Shipping B.V.

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Registered owner

Scheepvaartonderneming Ebroborg BV

Delfzijl

The Netherlands

Latest data adjustment

03 March 2020
