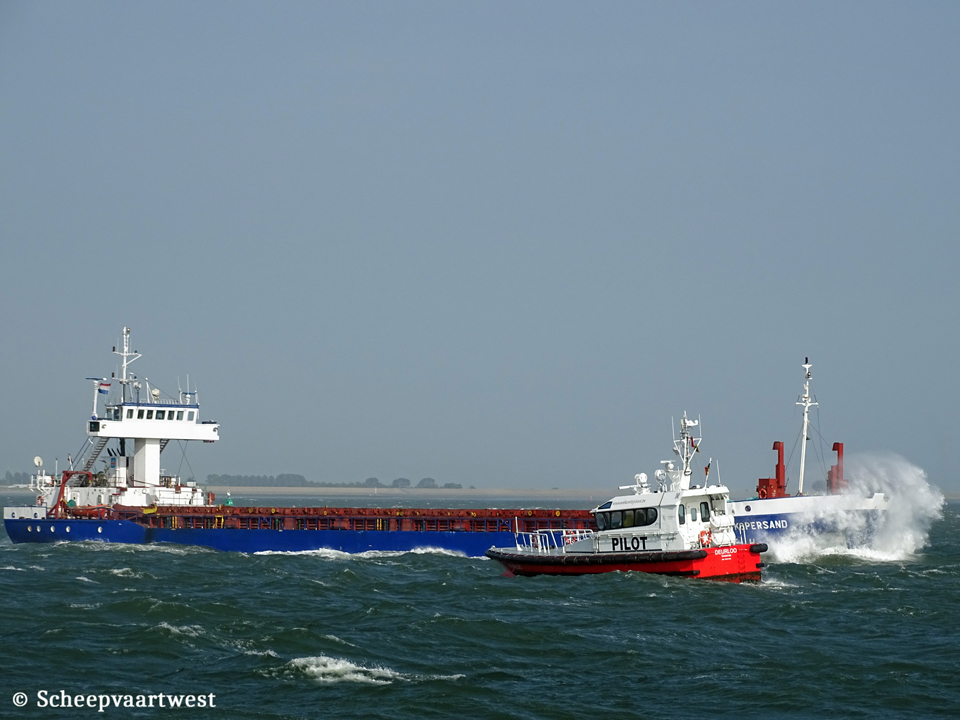

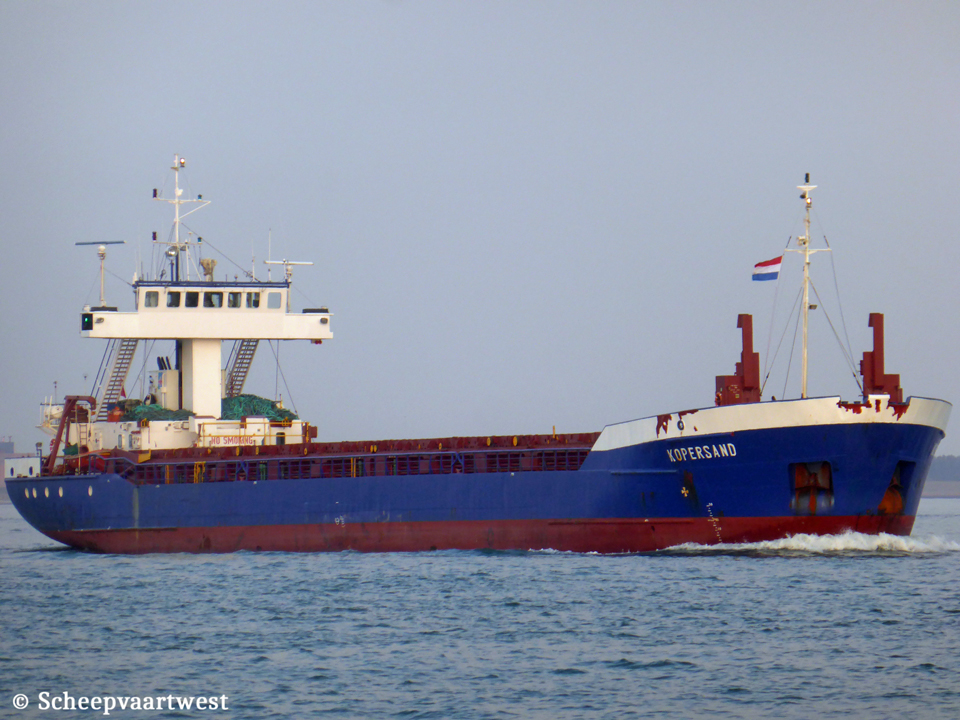

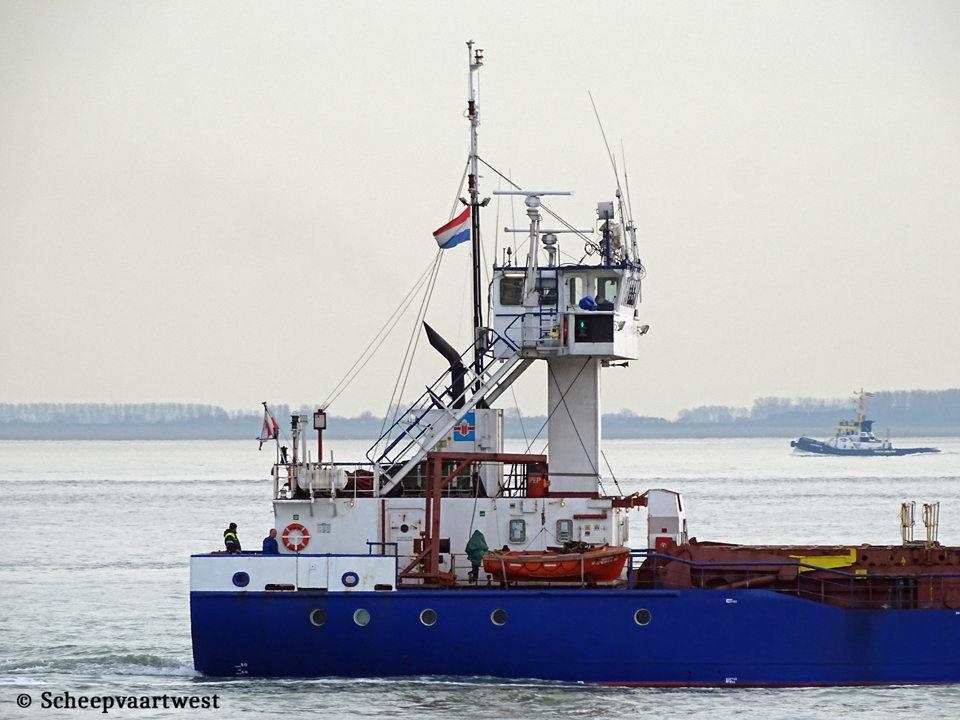

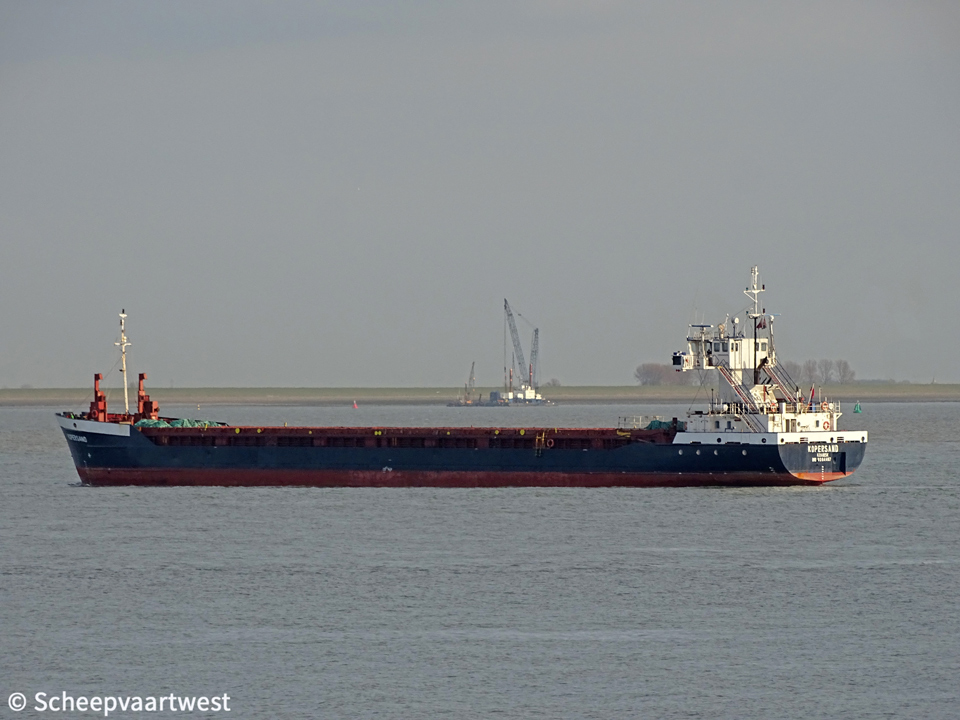

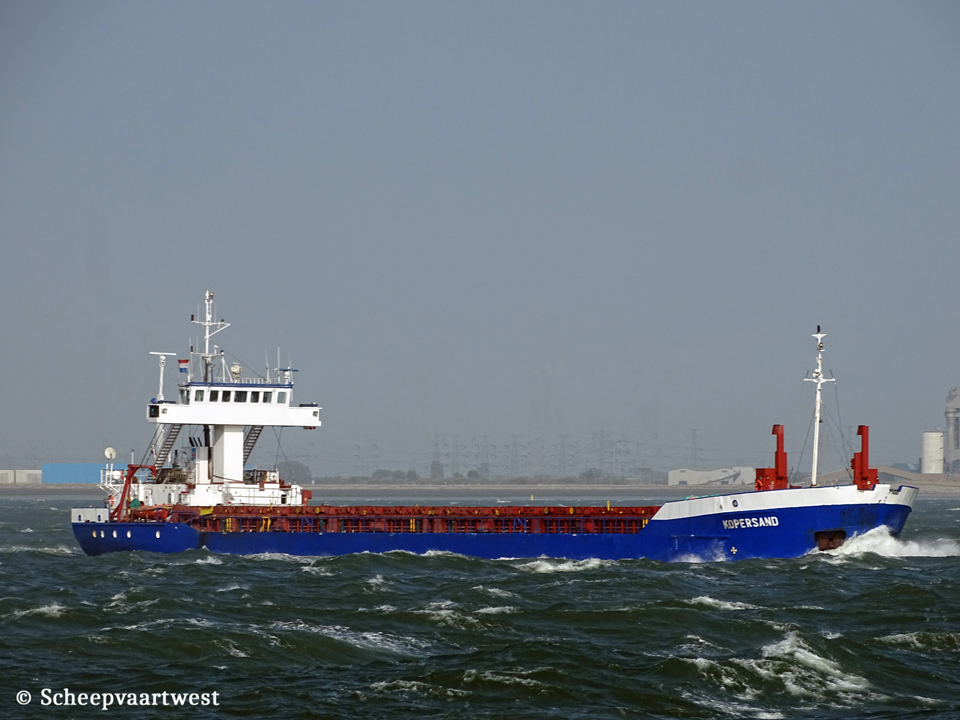

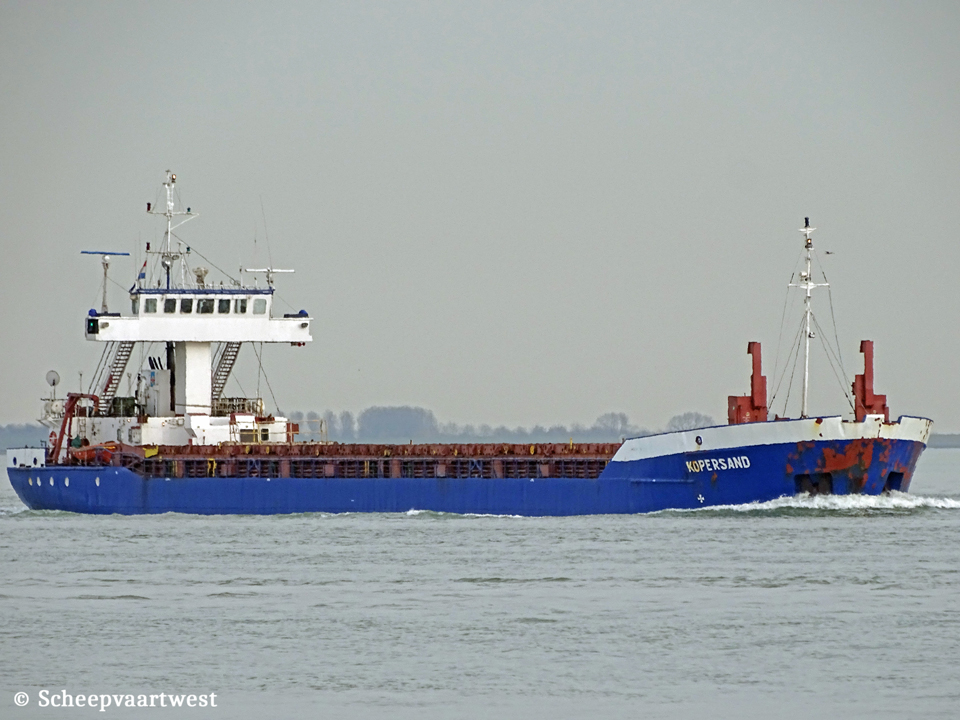

Westerschelde 19 August 2015 |
 |
|
| Westerschelde 12/02/19 | |
|
Name |
KOPERSAND |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9084487 |
|
Call sign |
SNNB |
|
Flag |
Poland |
|
Port of registry |
Gdansk |
|
Previous flags |
Cyprus, Limassol - Call sign: P3HA9 |
|
GT |
1.960 t |
|
DWT |
Summer: 3.036 t |
|
DWCC |
Summer: 2.850 t Winter: 2.750 t |
|
NT |
979 t |
|
Number of 20ft containers |
154 |
|
Length |
88,08 m overall 84,13 m between perpendiculars |
|
Breadth |
12,50 m extreme |
|
Draught |
Max: 4,64 m |
|
Air draft |
21,50 m |
|
Depth |
6,50 m |
|
Speed |
Service: 9,0 knots Max: 11,6 knots |
|
Built |
1993 |
|
Keel laid |
10/07/1990 |
|
Launch date |
17/03/1991 |
|
Date of completion |
20/10/1993 |
|
Builder casco |
Unidos de Vera Cruz SA de CV Yard number: 123 |
|
Builder completion |
B.V. Scheepswerf Damen Gorinchem Gorinchem The Netherlands Yard number: 8217 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Movable bulkheads |
1 |
|
Continuous decks |
2 |
|
Main engine |
1x Deutz MWM SBV 6M628 - 4 stroke 6 cylinder 240 x 208 mm combustion engine 1.089 kW / 1/480 hp at 900 rpm Builder: Deutz MWM Motoren-Werke Mannheim AG - Germany |
|
Propellers |
1x Fixed pitch propeller - aft at 230 rpm |
|
Electric installations |
1x Plant 380/ 220 V - 100 kVA 1x Plant 380/ 220 V - 100 kVA 1x Plant 380 V - 63 kVA |
|
Generators |
2x Main diesel generatorsets each 100 kVA |
|
Emergency generator |
1x Diesel generatorset 63 kVA |
|
Compressed air receivers |
2x Receivers each: 125 litres - 30,0 bar |
|
Bow thruster |
1x Veth Jet - 236 kW |
|
Number of holds |
1 62,68 x 10,10 x 6,34 m Narrowing fore/aft part of cargo hold |
|
Cargo hold capacity |
Grain: 4.006 m³ / 139.727 ft³ |
|
Timber capacity |
4.000 m³ |
|
Hold ventilation |
6x Air changes per hour |
|
Number of hatches |
1x 62,68 x 10,10 m |
|
Hatch type |
MacGregor folding type |
|
Max permitted loads |
Tanktop: 12,5 t/m² Hatches: 1,60 t/m² |
|
Tank capacities |
Ballast: 1.467,1 m³ Gas oil: 200 m³ Fresh water: 26,50 m³ |
|
Anchor equipment |
3x Anchors weight each 1.440 kg Length: 412,50 m Diameter: 34 mm |
|
Crew size |
8 |
|
Manager |
Gdanska Zegluga 80-888 Gdańsk Poland |
|
Owner |
Gdanska Zegluga Gdansk Poland |
|
Previous names & owners |
10/1993 Kopersand - Briese Schiffahrts GmbH & Co.KG m.s.”Kopersand”, Leer - Germany 2002 Kopersand - Marizona Shipping Ltd., Limassol - Cyprus - Call sign: P3HA9 2003- Kopersand - Marizona Shipping Ltd. (Linea Peninsular Inc.), Limassol - Cyprus 2004 Kopersand - Marizona Shipping Ltd. (Sohl Schiffahrt), Limassol - Cyprus 2005 Kopersand - Hightrend Shipping Ltd. (Linea Peninsular Inc.), Limassol - Cyprus |
|
Renamed |
2019 Hav Tuna Antigua and Barbuda, St. Johns - Call sign: V2QU8 Owner: HAV Coasters AS - Norway Manager: Hav Shipmanagement NorRus A/S |
|
Latest data adjustment |
16 January 2024 |
