Westerschelde 07 October 2015 |
|
Name |

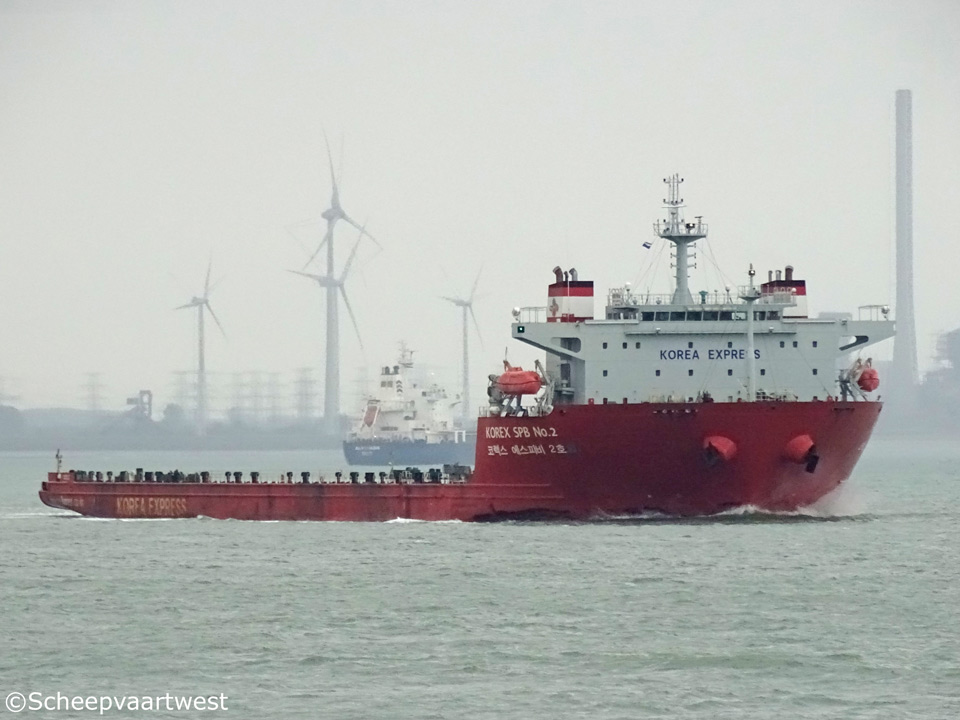

Korex SPB No.2 |
|
Korean name |
코렉스 에스피비 2호 |
|
Type |
General cargo ship - Heavy load carrier |
|
IMO-number |
9593397 |
|
Call sign |
D8BI |
|
Flag |
South Korea |
|
Port of registry |
Jeju Cheju |
|
GT |
14.462 t |
|
DWT |
Summer: 15.016 t |
|
NT |
4.338 t |
|
Length |
152,50 m overall |
|
Breadth |
40,00 m |
|
Draught |
5,27 m |
|
Reg. dimensions Lx B x D |
141,21 x 40,00 x 9,00 m |
|
Rule dimensions Lx B x D |
141,21 x 40,00 x 9,00 m |
|
Freeboard |
Summer: 2.774 mm |
|
Depth |
9,00 m |
|
Speed |
12,0 knots |
|
Built |
2012 |
|
Keel laid |
08.09.2011 |
|
Launch date |
23.02.2012 |
|
Date of completion |
04.06.2012 |
|
Builder |
Samjin Shipbuilding Industries Co.,Ltd. |
|
Yard number |
H8004 |
|
Hull material |
Steel |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
2x Han Shin diesel - 4 stroke single acting 6 cylinder 460 x 880 mm diesel engines each 3.309 kW / 4.500 hp total 6.618 kW at 220 rpm Built: 07.2011 Builder: Han Shin Diesel Works, Ltd. Harima Factory |
|
Propellers |
2 |
|
Boilers |
1x Auxiliary Boiler - Water tube boiler - 8,0 bar Heating surface: 13,5 m² Built: 07.2011 |
|
Generators |
3x Diesel generatorset each 750 kVA / 450 Volt |
|
Emergency generator |
1x Diesel generatorset 70 kVA / 450 Volt |
|
Tank capacities |
Fuel oil: 1.800 m³ Fresh water: 521,8 m³ Water ballast: 24.053,7 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Manager |
CJ Korea Express Corporation |
|
Technical manager |
SM Leader |
|
Owner |
CJ Korea Express Corporation |
|
Latest data adjustment |
19 April 2017 |
